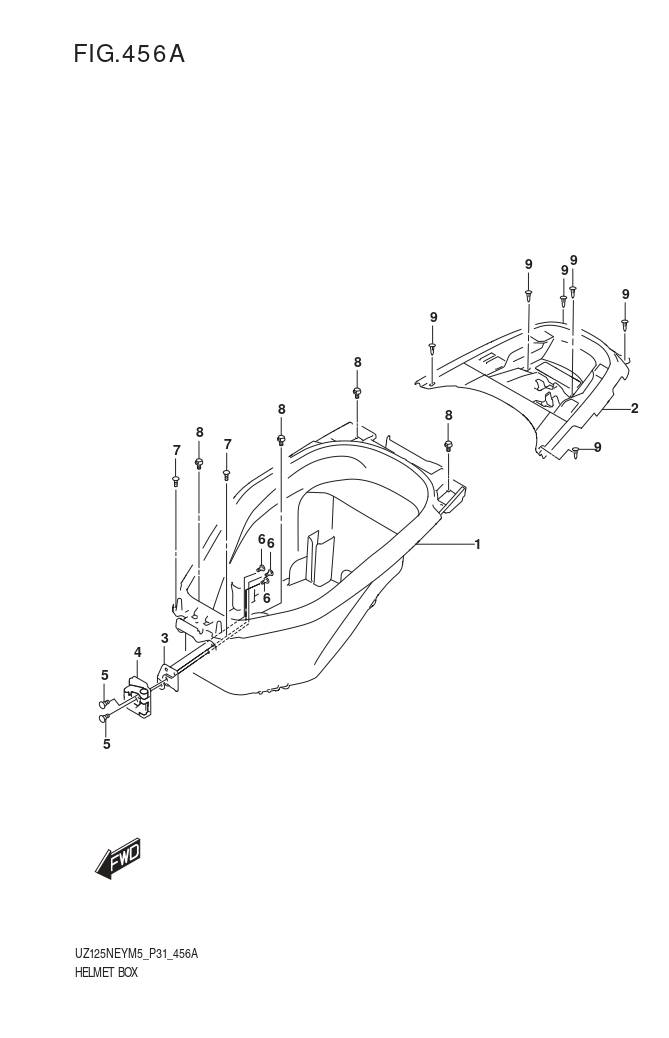

Access Ride Connect - FIG.456A (1-D-12) HELMET BOX

FIG.401A (1-C-15) FRAME
FIG.405A (1-C-16) BATTERY HOLDER
FIG.407A (1-D-2) STAND
FIG.410A (1-D-3) PILLION RIDER HANDLE
FIG.415A (1-D-4) FOOTREST
FIG.420A (1-D-5) FUEL TANK
FIG.423A (1-D-6) FUEL TANK COVER
FIG.427A (1-D-7) EVAP SYSTEM
FIG.435A (1-D-8) FRONT LEG SHIELD
FIG.438A (1-D-9) SIDE LEG SHIELD
FIG.440A (1-D-10) REAR LEG SHIELD
FIG.445A (1-D-11) FRAME COVER

Ref No.	Part Number	Part Name	QTY	Price
1	92211-29L00-000	BOX,HELMET	1	₱ 1,963
2	92212-29L00-000	COVER,HELMET BOX	1	₱ 325
3	92180-08K01-000	BRACKET,FRAME COVER HOOK	1	₱ 134
4	92170-33G60-291	HOOK ASSY,FRAME COVER (BLACK)	1	₱ 182
5	92178-33G50-000	SCREW,FRAME COVER HOOK	2	₱ 43
6	02142-0512A-000	SCREW	3	₱ 30
7	03541-0516A-000	SCREW	2	₱ 48
8	01550-0612A-000	BOLT	4	₱ 12
9.1	09409-06L07-000	CLIP	6	₱ 33
9.2	09409-06346-000	CLIP	6	₱ 9
