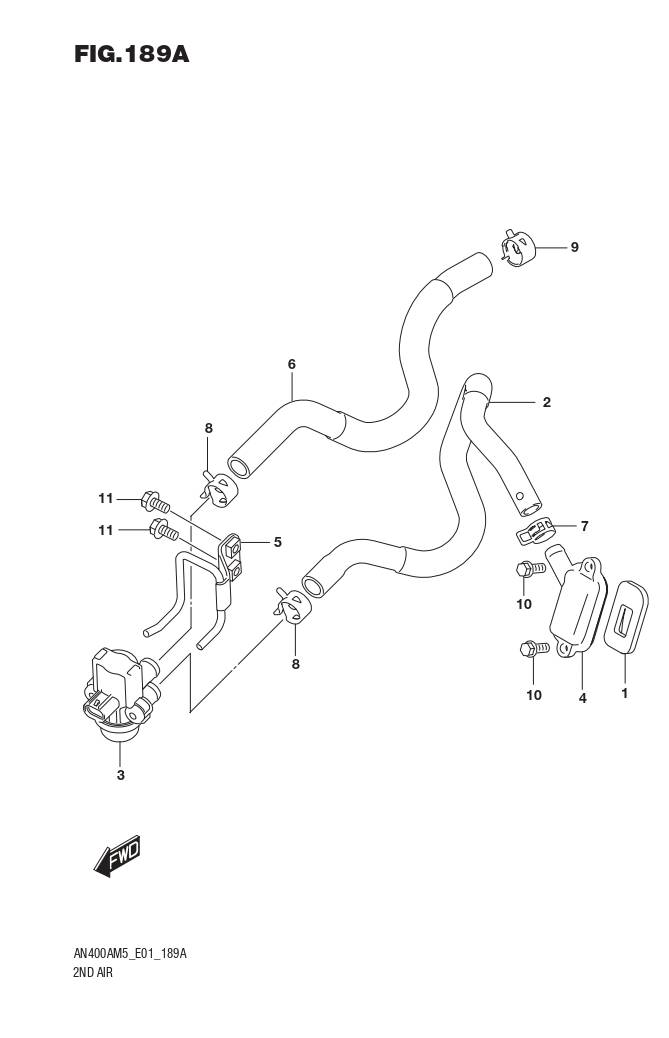

Burgman 400 - FIG.189A (1-C-9) 2ND AIR
Burgman 400 -FIG.187A (1-C-8) RADIATOR HOSE

Ref No.	Part Number	Part Name	QTY	Price
1	18450-28K00	VALVE ASSY,2ND AIR REED	1	₱ 1,225
2	18461-19K00	HOSE,2ND AIR VALVE	1	₱ 1,209
3	18510-29G50	VALVE ASSY,AIR CUT	1	₱ 3,230
4	18531-09J30	COVER,2ND AIR REED VALVE	1	₱ 893
5	18610-19K00	BRACKET,2ND AIR VALVE	2	₱ 1,531
6	18711-19K00	HOSE,2ND AIR CLNR	1	₱ 1,247
7	09401-15420	CLAMP	1
8	09401-17401	CLIP	2	₱ 68
9	09401-17403	CLIP	1	₱ 109
10	01547-0616A	CLIP	2	₱ 74
11	01550-0612A	CLIP	2	₱ 12
