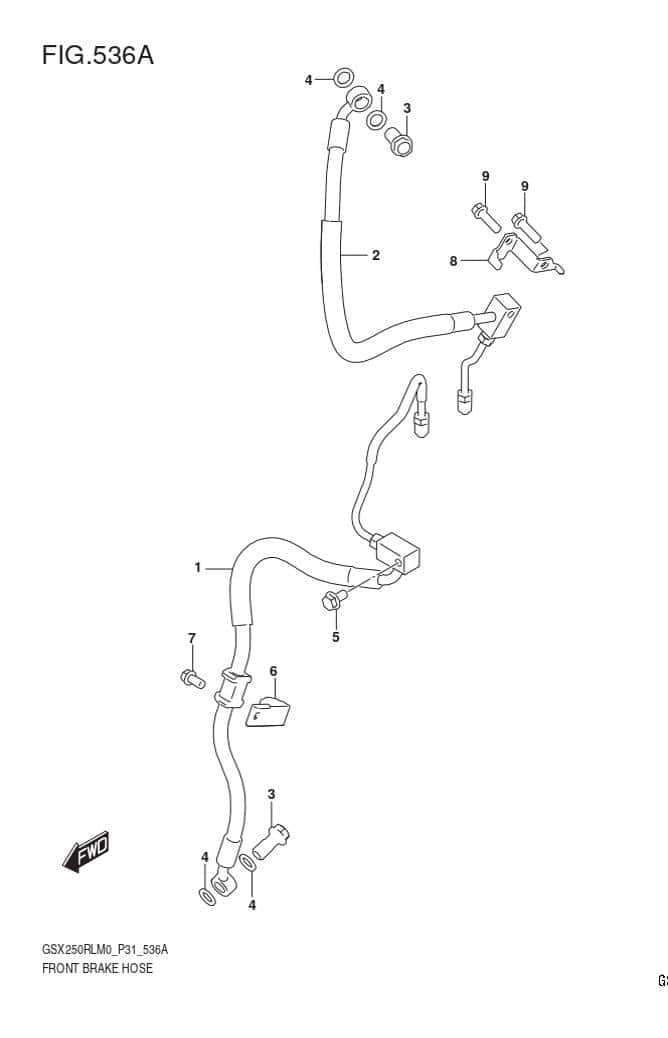

FIG.536A (1-F-6) FRONT BRAKE HOSE
FIG.541A (1-F-8) REAR SWINGINGARM
FIG.550A (1-F-10) REAR WHEEL
FIG.555A (1-F-11) REAR CALIPER
FIG.545A (1-F-9) REAR SHOCK ABSORBER
FIG.558A (1-F-12) REAR MASTER CYLINDER
FIG.970C (1-F-15) OPTIONAL (POWER SOURCE TERMINAL SET)
FIG.537A (1-F-7) FRONT MASTER CYLINDER
FIG.970B (1-F-14) OPTIONAL (KNUCKLE COVER SET)
FIG.970A (1-F-13) OPTIONAL (ONT BUMPER SET)

Ref No.	Part Number	Part Name	QTY	Price
1	59400-41K00-000	HOSE ASSY, UNIT TO FR BK CLPR	1	₱ 2,529
2	59200-41K00-000	HOSE ASSY, FR BK MASTER TO ASSY, FR BK MASTER TO 1 U	1	₱ 2,270
3	59492-30H40-000	BOLT, BRAKE FLUID	2	₱ 146
4	59502-30H00-000	WASHER, BRAKE FLUID	4	₱ 60
5	01547-0612B-000	BOLT	1	₱ 77
6	59266-34J00-000	CLAMP, FRONT BRAKE HOSE NO.1	1	₱ 50
7	01547-0612B-000	BOLT	1	₱ 77
8	59541-41K10-000	CLAMP, FR BRAKE HOSE	1	₱ 66
9	01547-0620B-000	BOLT	2	₱ 52
