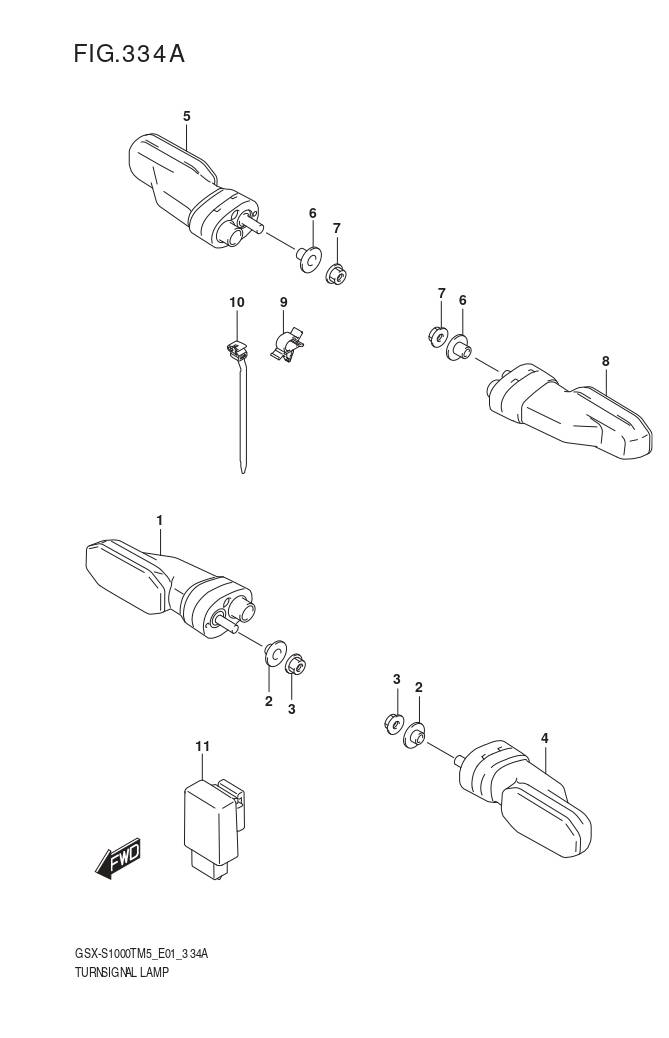

Ref No.	Part Number	Part Name	QTY	Price
1	35601-48KB2	LAMP ASSY,FRONT TURNSIGNAL,R	1
2	09169-06100	WASHER	2
3	08316-1006A	NUT (6X12)	2	₱ 43
4	35602-48KB2	LAMP ASSY,FRONT TURNSIGNAL,L	2
5	35603-48KD1	LAMP ASSY,REAR TURNSIGNAL,R	1
6	09169-06100	WASHER	2
7	08316-1006A	NUT (6X12)	2	₱ 43
8	35604-48KD1	LAMP ASSY,REAR TURNSIGNAL,L	2
9	09403-10319	CLAMP	1	₱ 139
10	09407-14414	CLAMP (L:140)	1
11	38610-06L01	RELAY ASSY,TURNSIGNAL	1
