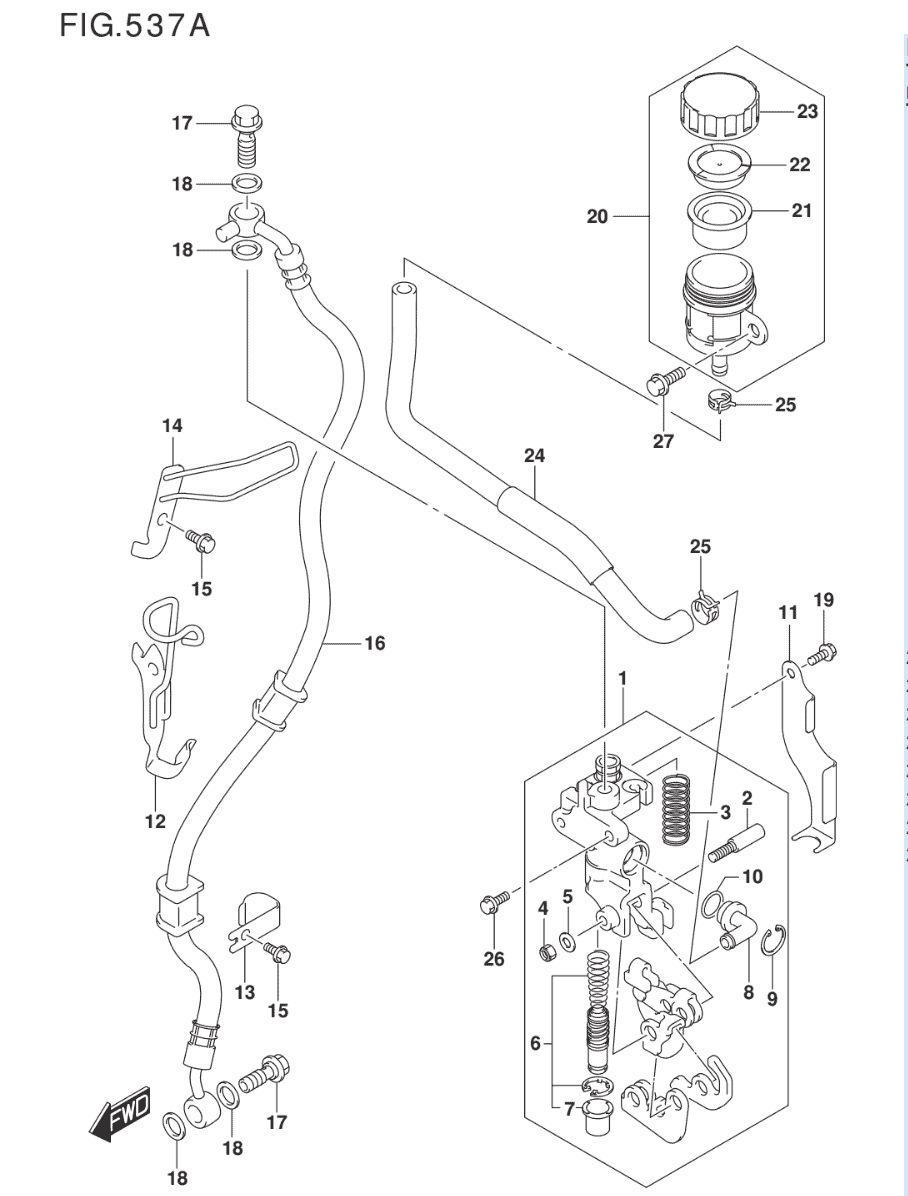

FIG.537A (1-E-7) FRONT MASTER CYLINDER
FIG.535A (1-E-10) FRONT CALIPER
FIG.550A (1-E-13) REAR WHEEL
FIG.545A (1-E-12) REAR SHOCK ABSORBER
FIG.530A (1-E-9) FRONT WHEEL
FIG.524A (1-E-8) STEERING STEM
FIG.521A (1-E-7) FRONT FORK DAMPER
FIG.505A (1-E-6) SEAT
FIG.496A (1-E-5) LABEL
FIG.478A (1-E-4) LUGGAGE BOX
FIG.417A (1-D-5) PILLION FOOTREST

Ref No.	Part Name	QTY
1	SUBUNIT,COMBINED BRAKE	1
2	BOLT	1
3	SPRING	1
4	NUT	1
5	WASHER	1
6	PISTON & CUP SET	1
7	BOOT	1
8	CONNECTOR	1
9	CIRCLIP	1
10	O-RING	1
11	COVER,COMBINED BRAKE UNIT	1
12	CLAMP,FR BRAKE HOSE	1
13	CLAMP,BRAKE HOSE	1
14	GUIDE.FR BRAKE HOSE	1
15	BOLT	15
16	HOSE,FRONT BRAKE	1
17	BOLT.BRAKE FLUID	2
18	WASHER (10.2X15X1.4)	4
19	SCREW	2
20	TANK ASSY,RESERVOIR	1
21	DIAPHRAGM	1
22	PLATE	1
23	CAP	1
24	HOSE,RESERVOIR TANK	1
25	CLAMP,RESERVOIR TANK FR	2
26	BOLT	2
27	BOLT	1
