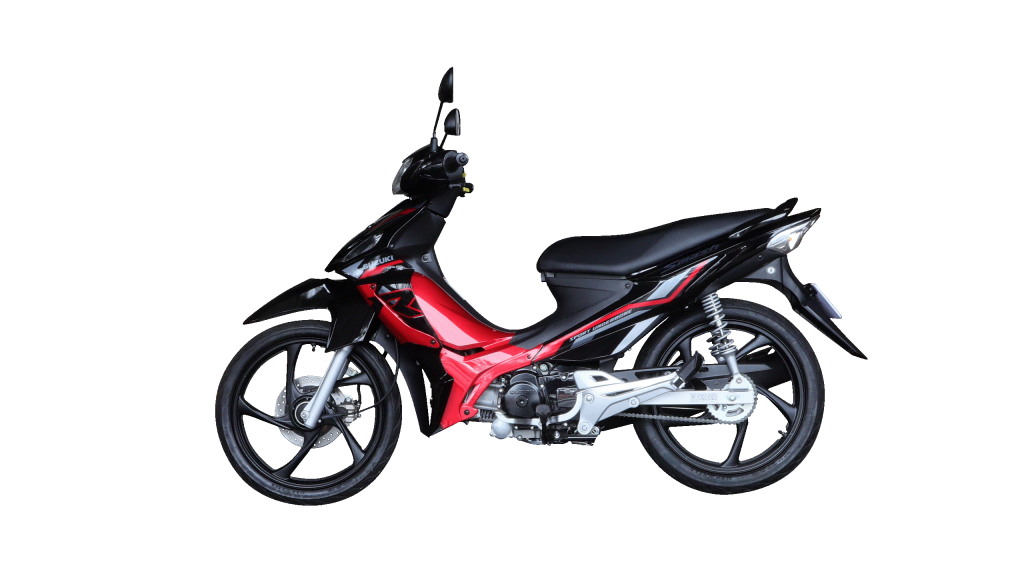

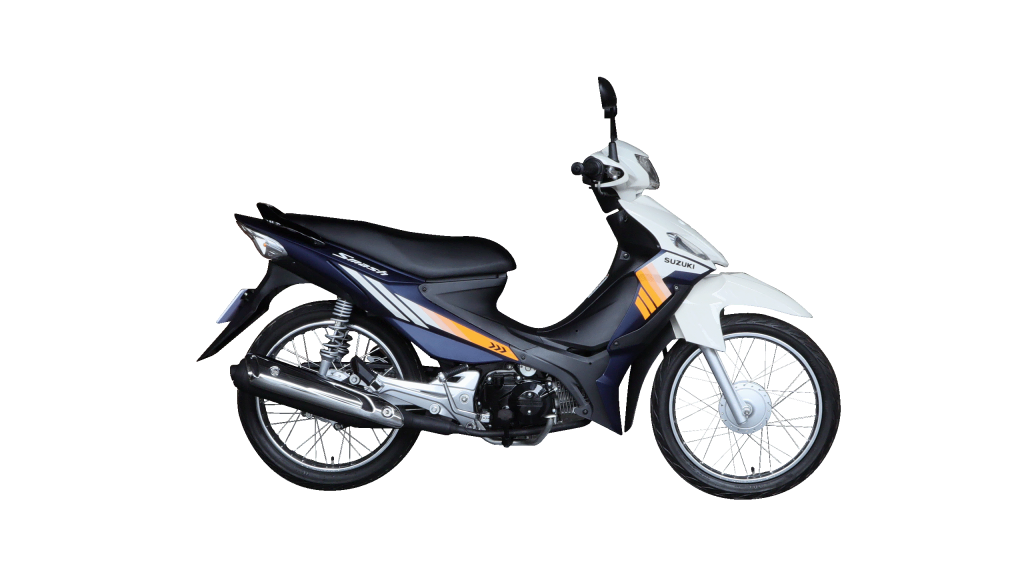

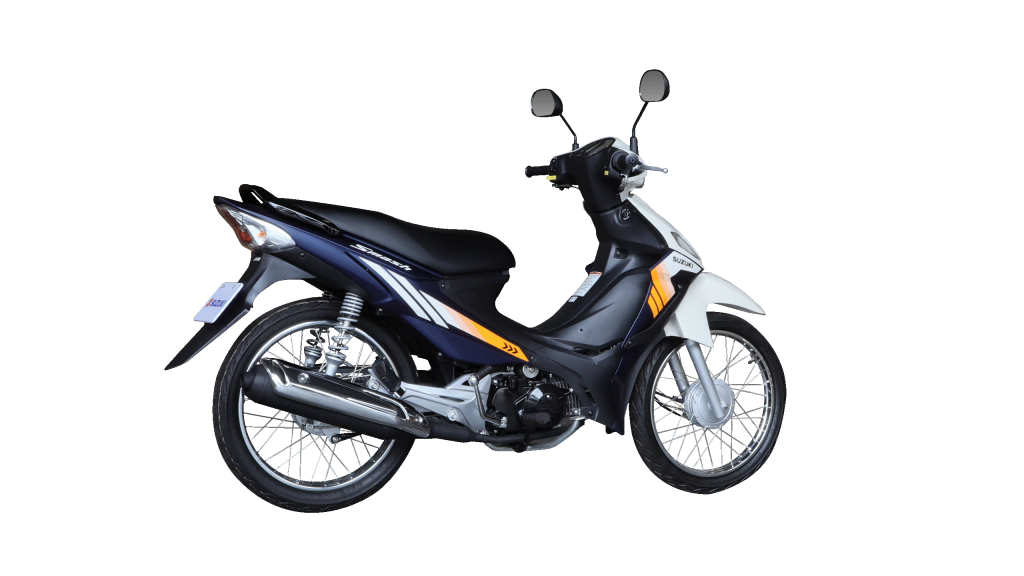

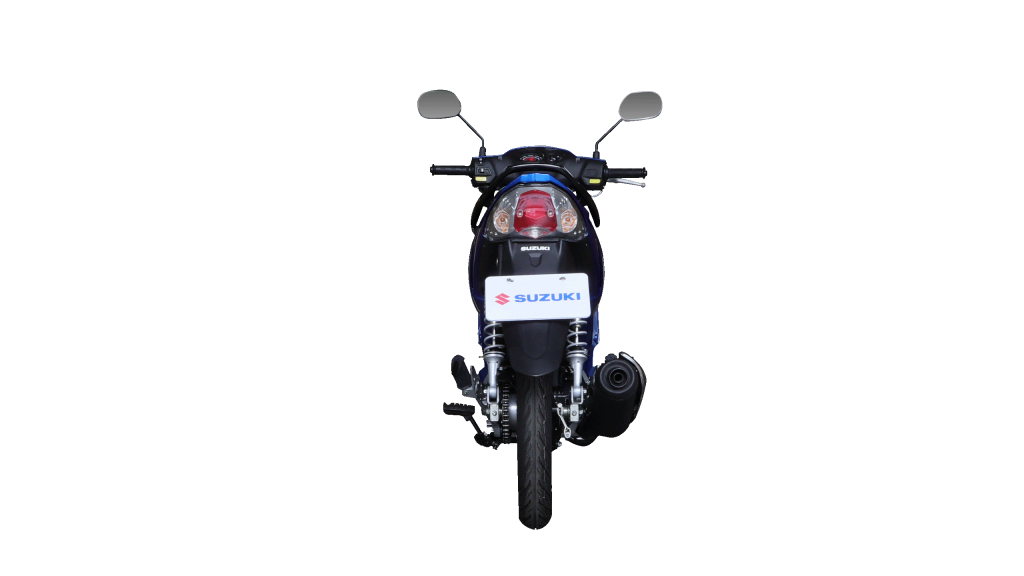

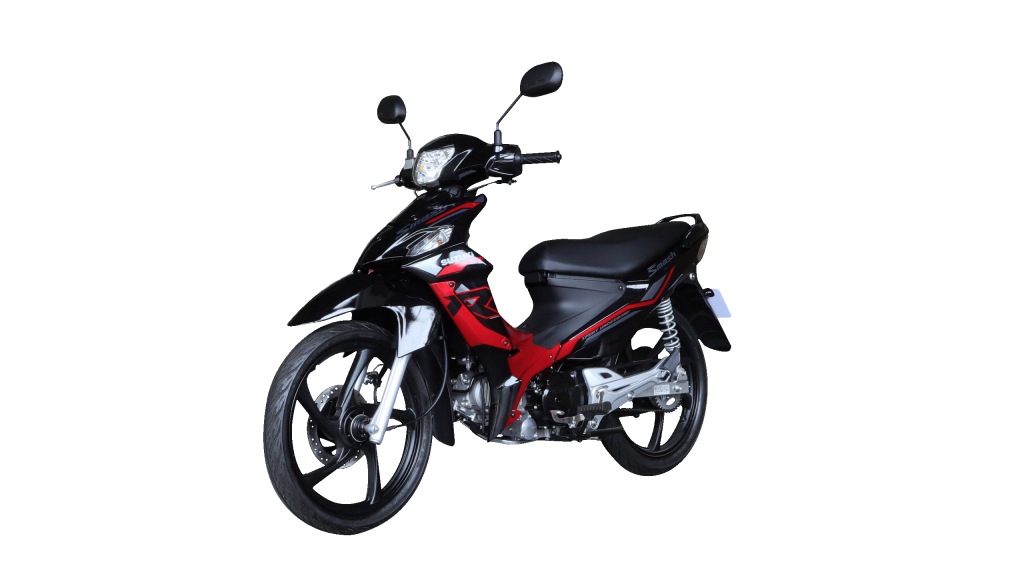

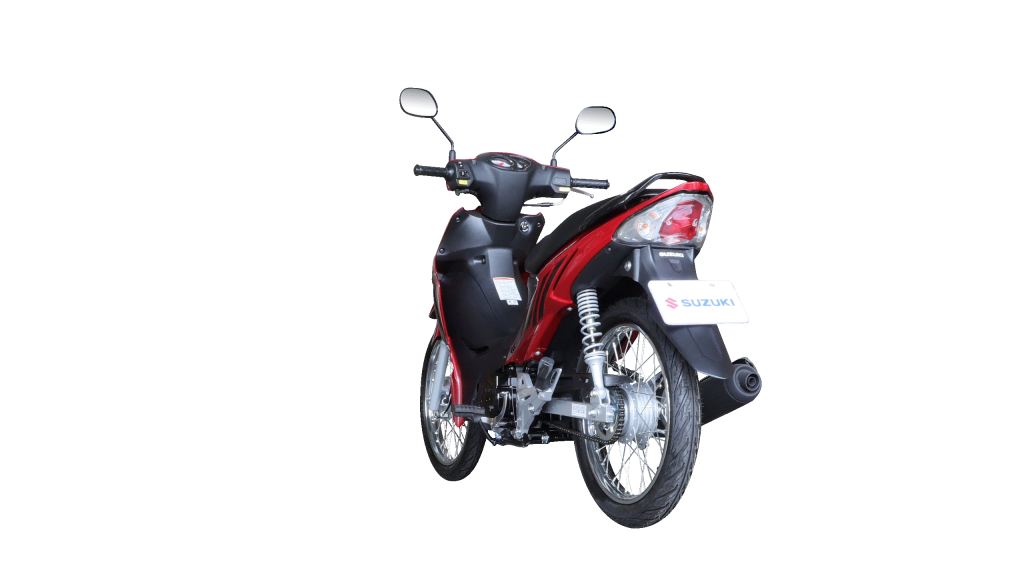

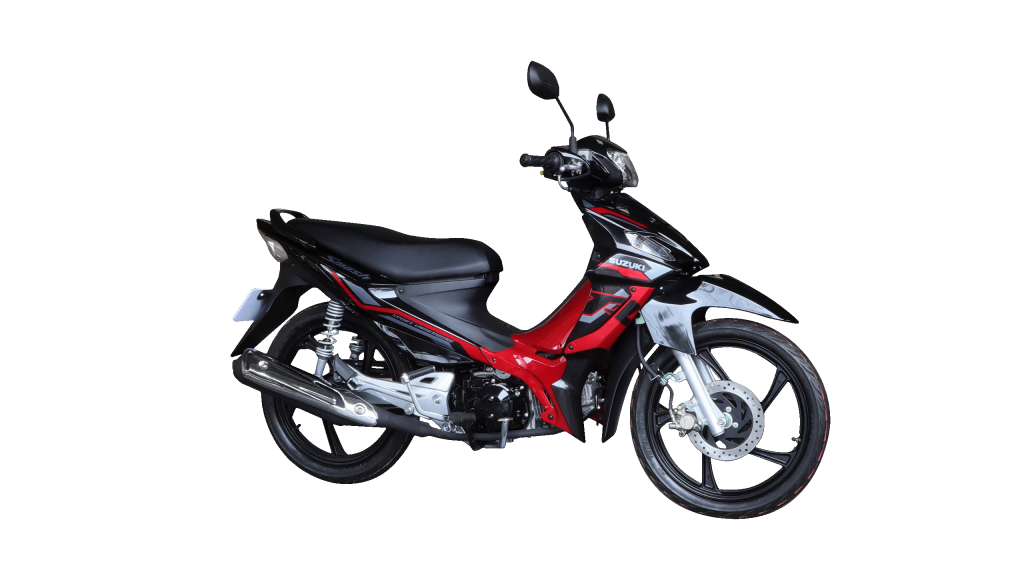

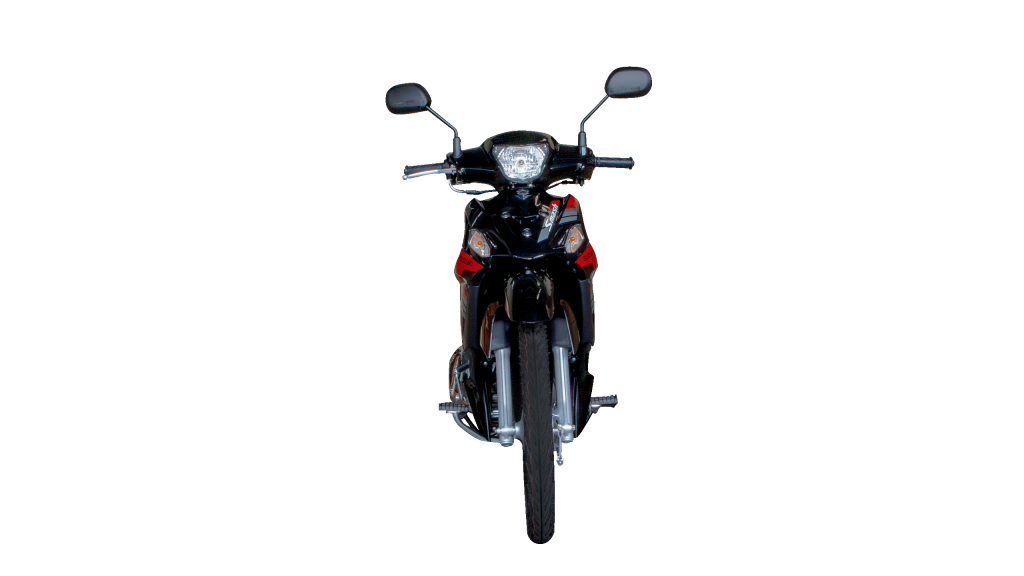

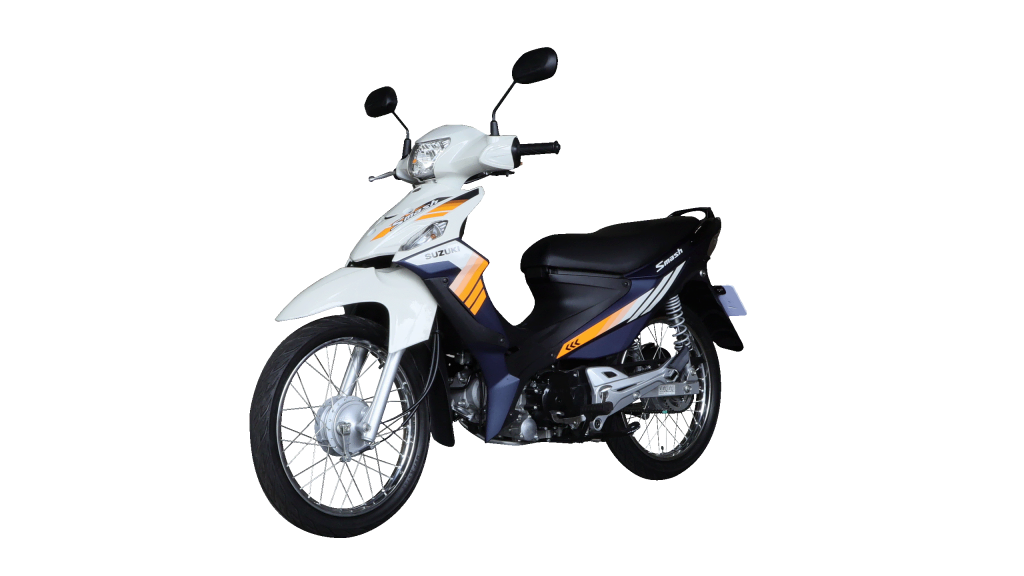

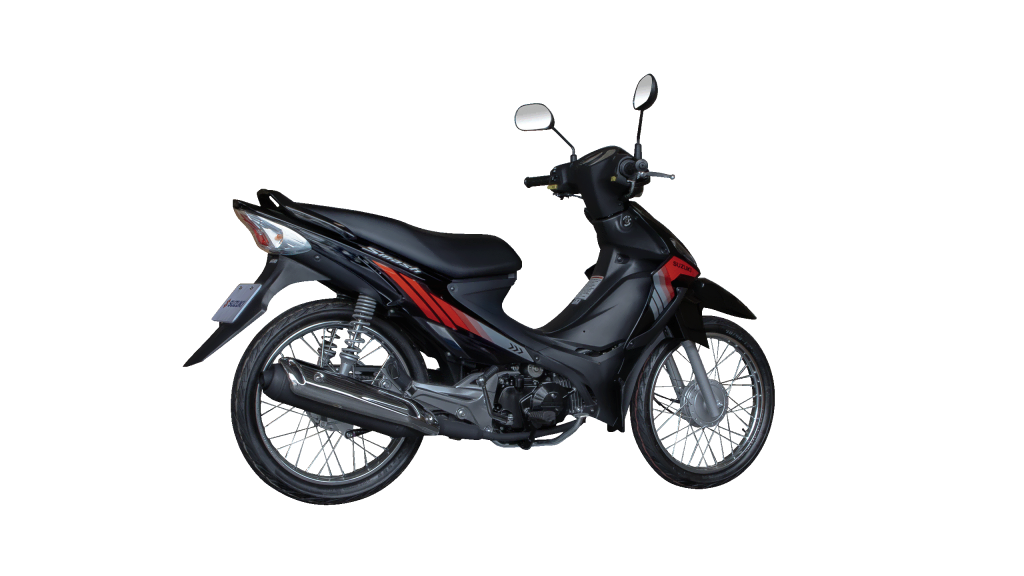

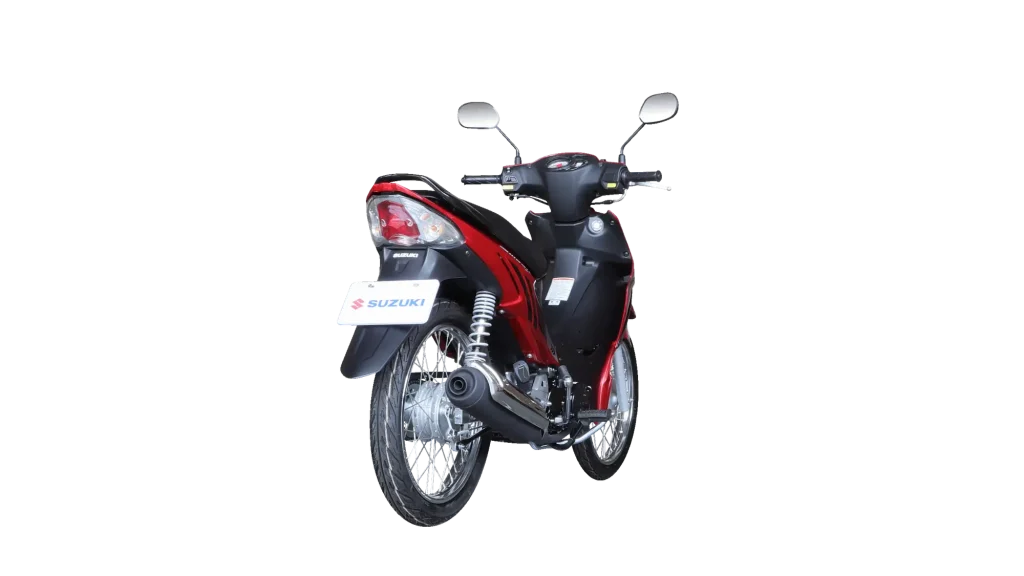

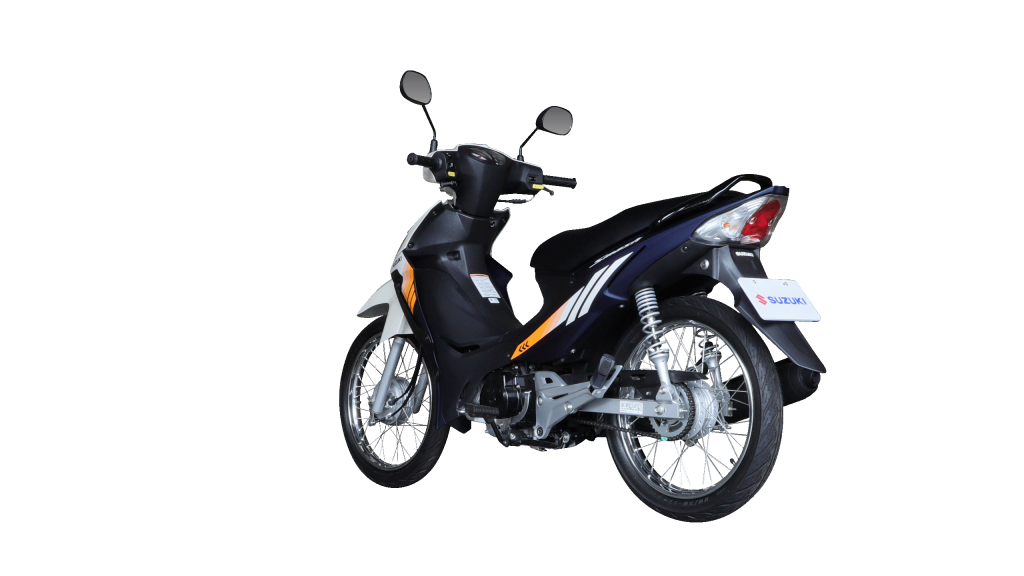

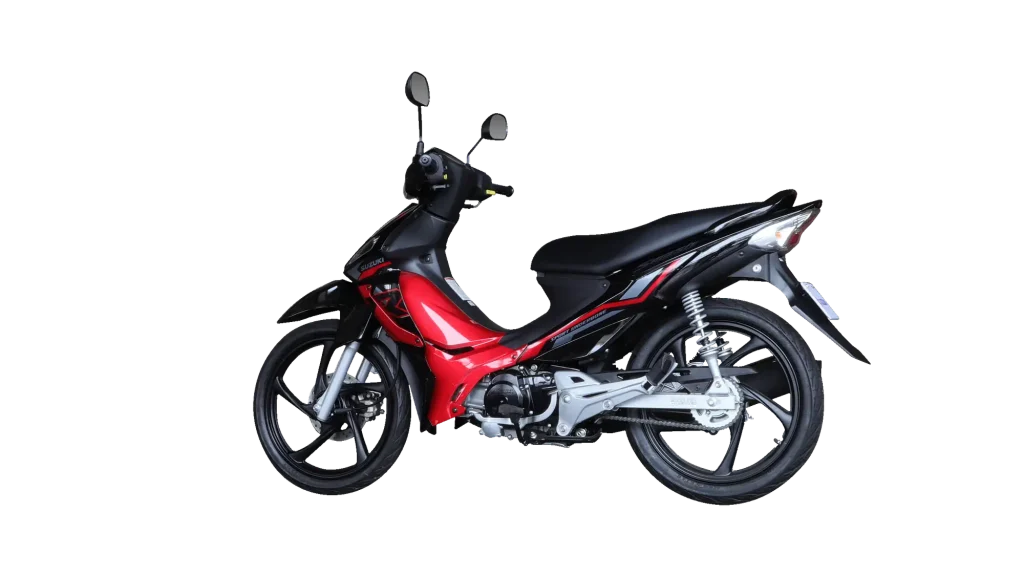

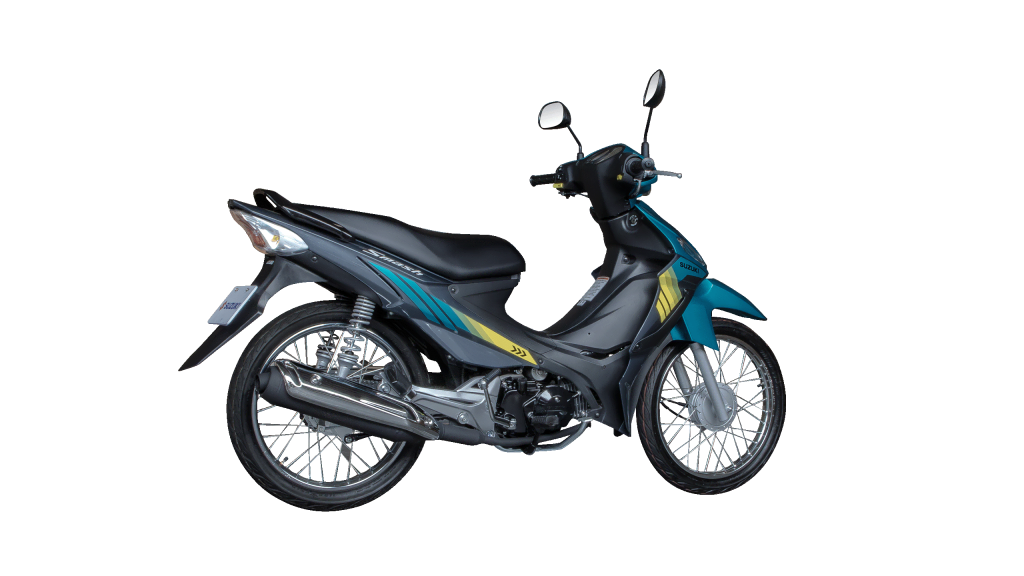

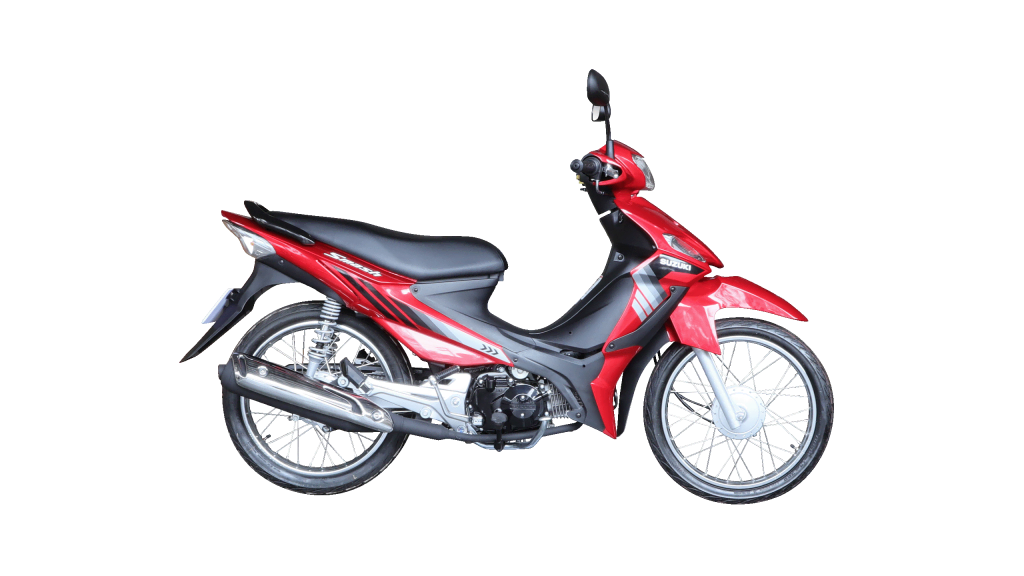

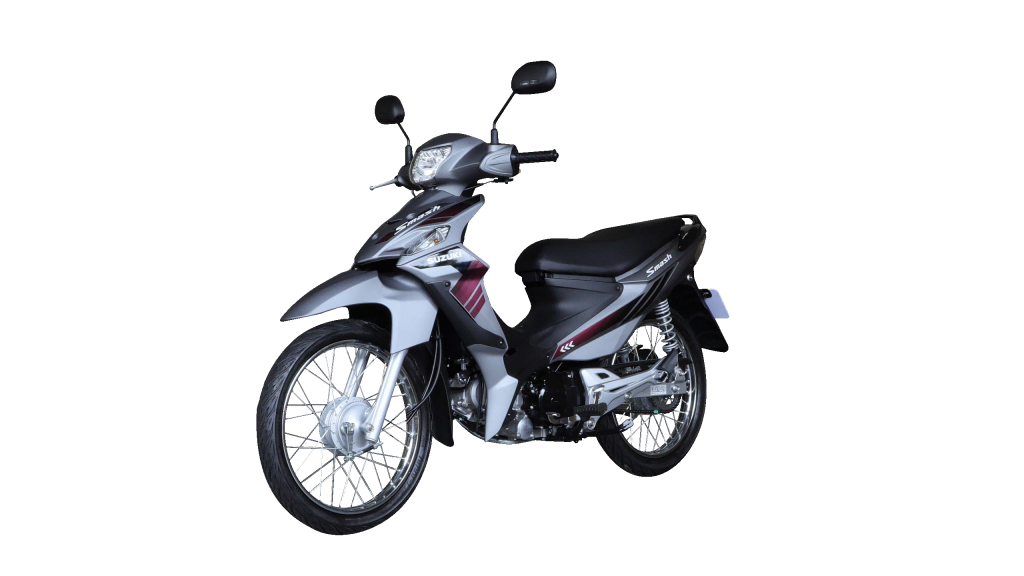

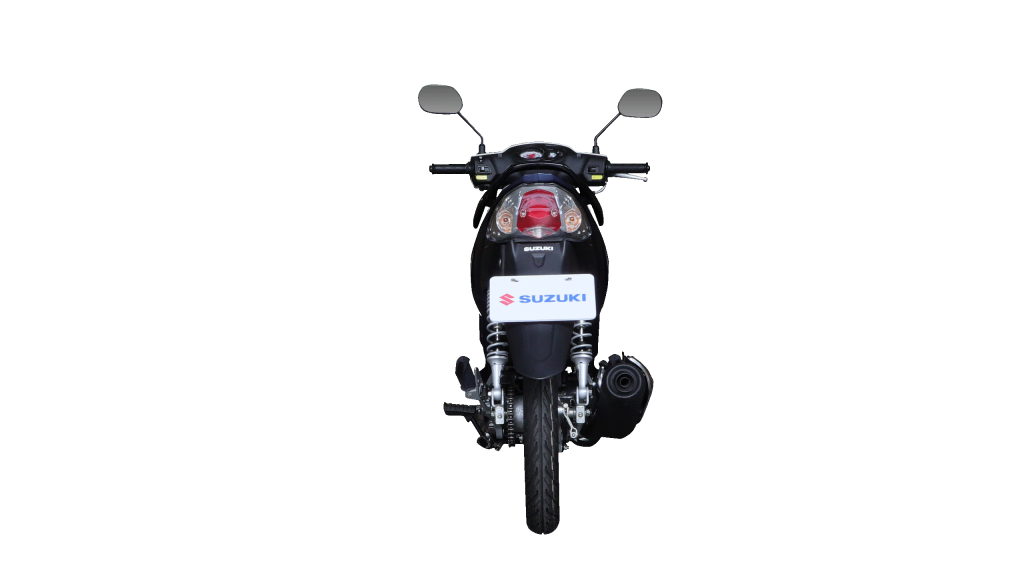

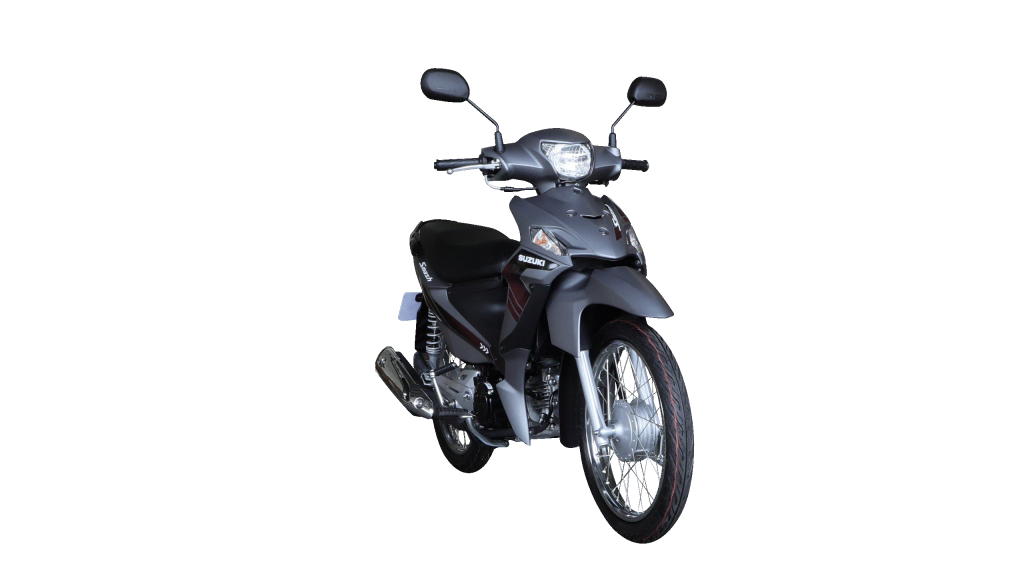

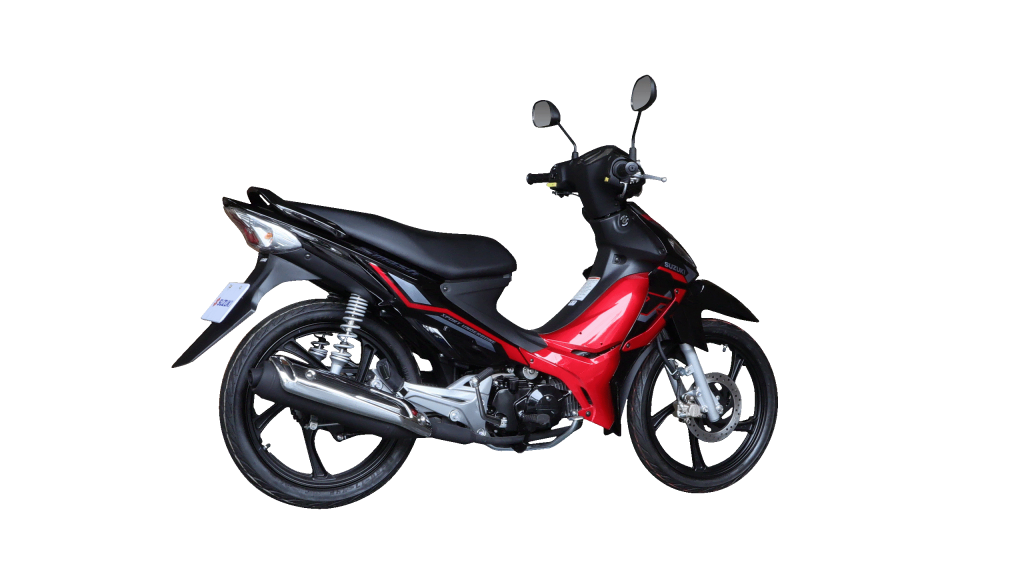

Smash Carb

Disc/Mags and Drum/Spokes

For All

SRP ₱ 62,400

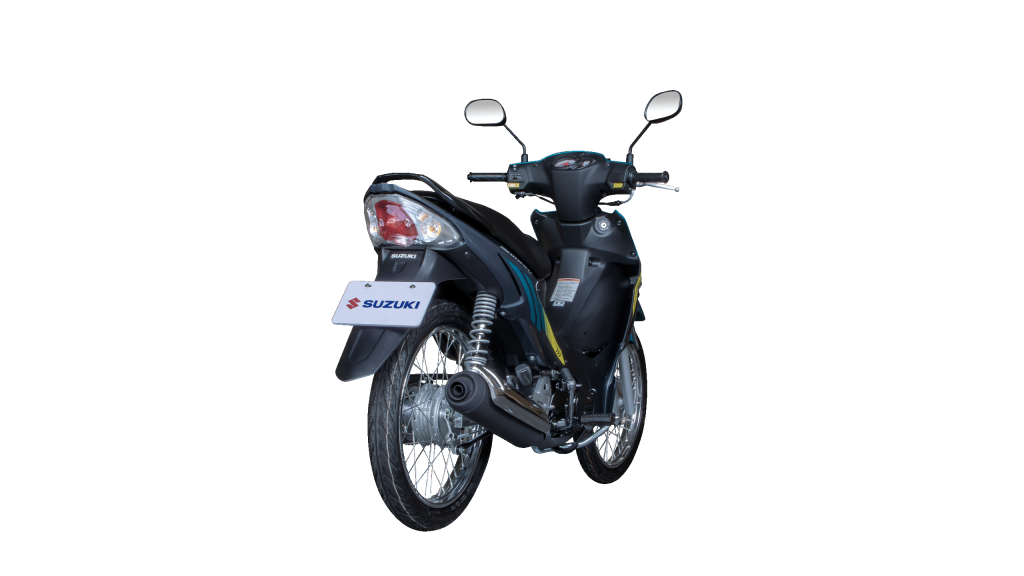

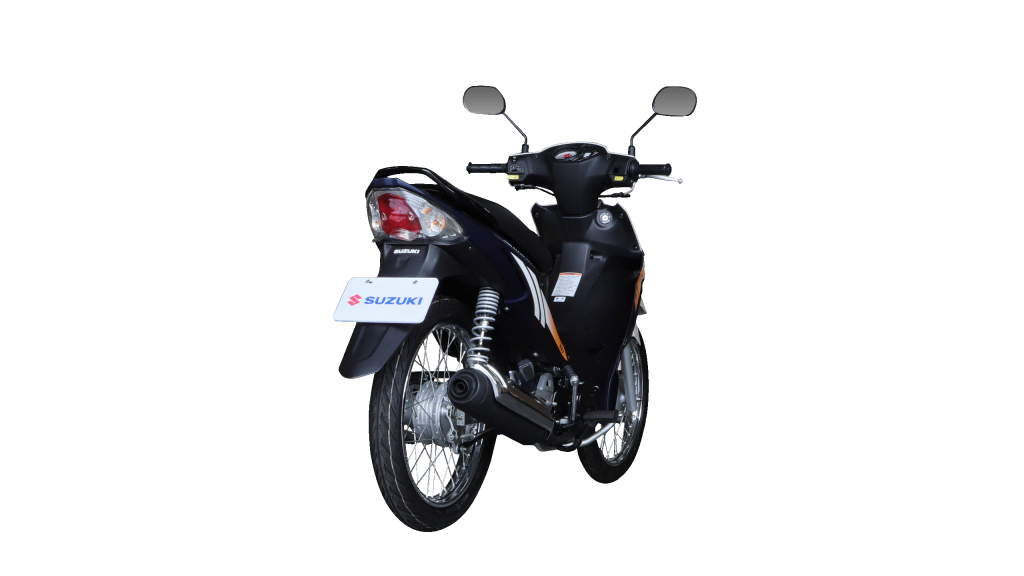

Drum/Spokes
|

SRP ₱ 67,400

Disc/Mags

For All

The No. 1 Underbone Leisure Motorcycle in Philippines – Smash because of its engine performance, durability at a price tag that every Filipino can afford. Always a reliable bike, the Smash promises to give you a smooth riding experience with its 4-stroke 115cc engine.

Product Highlights

112.8cc, 4-stroke, SOHC, 1-cylinder, 2-valve, carburetor engine

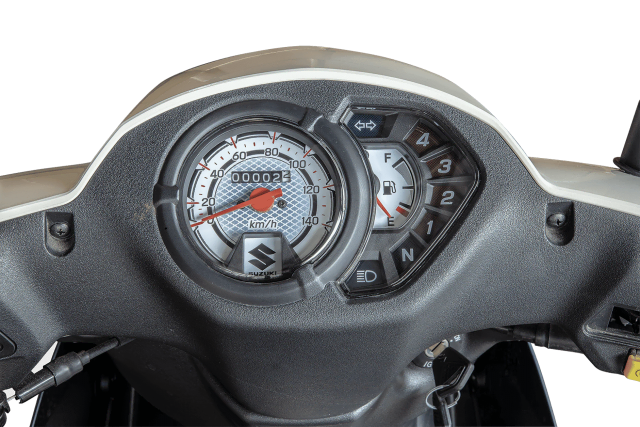

Sportswatch-inspired Instrument Panel

Sporty Design

Double Rear Tube Suspension

Low seat heigh with comfortable seat

Powered by Suzuki Technology

*Click the icons to view more information about the features

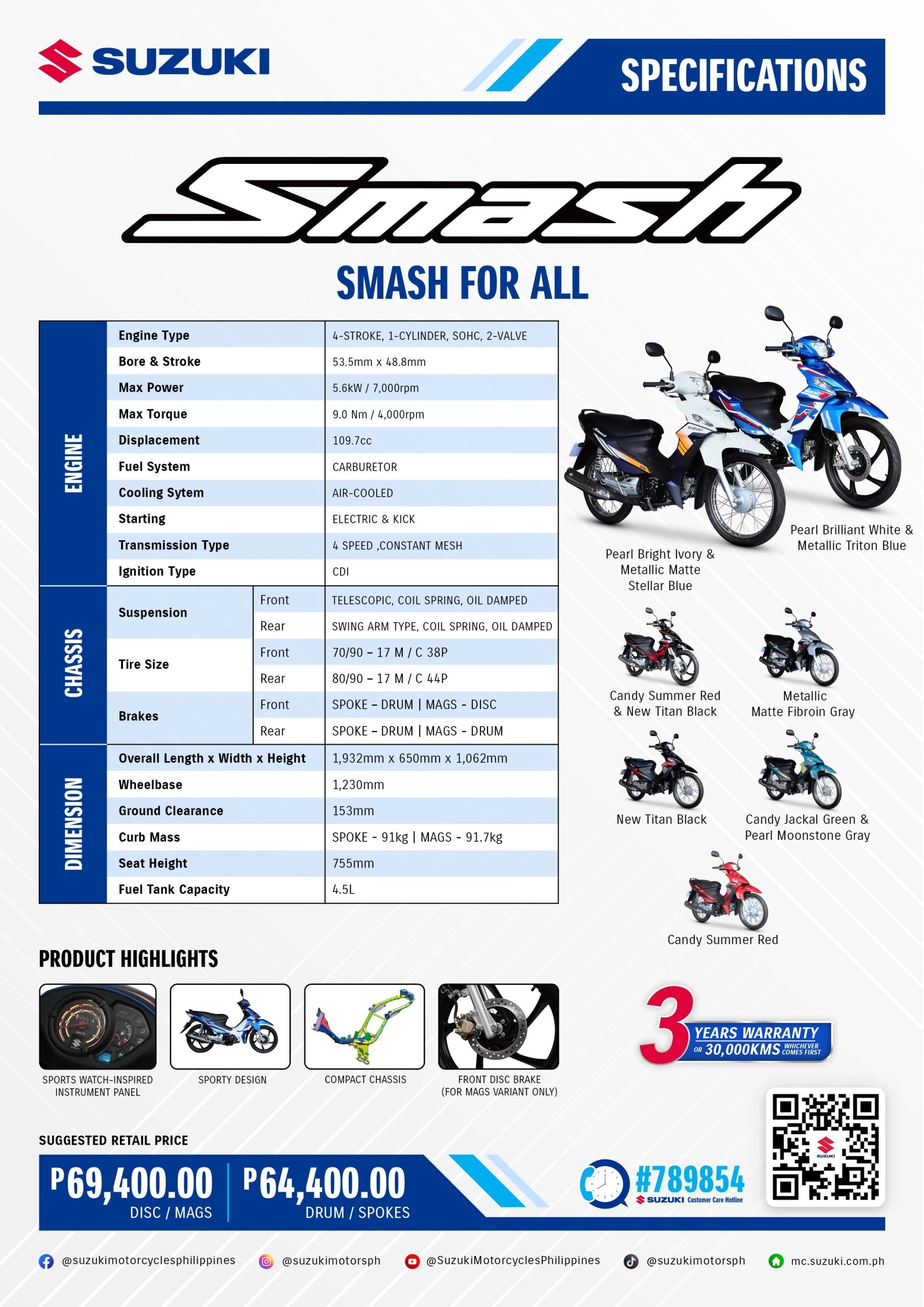

Specifications

Engine Type

4-Stroke, 1-Cylinder, SOHC, 2-Valve

Bore X Stroke

53.5mm x 48.8mm

MAX POWER

5.6 KW / 7,000 RPM

Max Torque

9.0 NM / 4,000 RPM

Engine Displacement

109.7 CC

Fuel System

CARBURETOR TYPE

Cooling System

AIR COOLED

Starting

ELECTRIC & KICK

Transmission Type

4-SPEED, CONSTANT MESH

Ignition System

DC-CDI

Compression Ratio

9.6:1

Lubrication

WET SUMP

Clutch Type Primary

wet shoe, automatic, centrifugal type

Suspension (Front)

TELESCOPIC, COIL SPRING, OIL DAMPED

Suspension (Rear)

SWING ARM TYPE, COIL SPRING, OIL DAMPED

Tire Size (Front)

70/90 – 17 M / C 38P

Tire Size (Rear)

80/90 – 17 M / C 44P

Brakes (Front)

SPOKE – DRUM: Mags – Disc

Brakes (Rear)

Spoke – DRUM: Mags – Drum

Overall Length

1,932 MM

Overall Width

650 MM

Overall Height

1,062 MM

Wheelbase

1,230 MM

Ground / Road Clearance

153 MM

Curb Mass

spoke – mags: 91 kg – 91.7 kg

Seat Height

755 MM

Fuel Tank Capacity

4.5 L

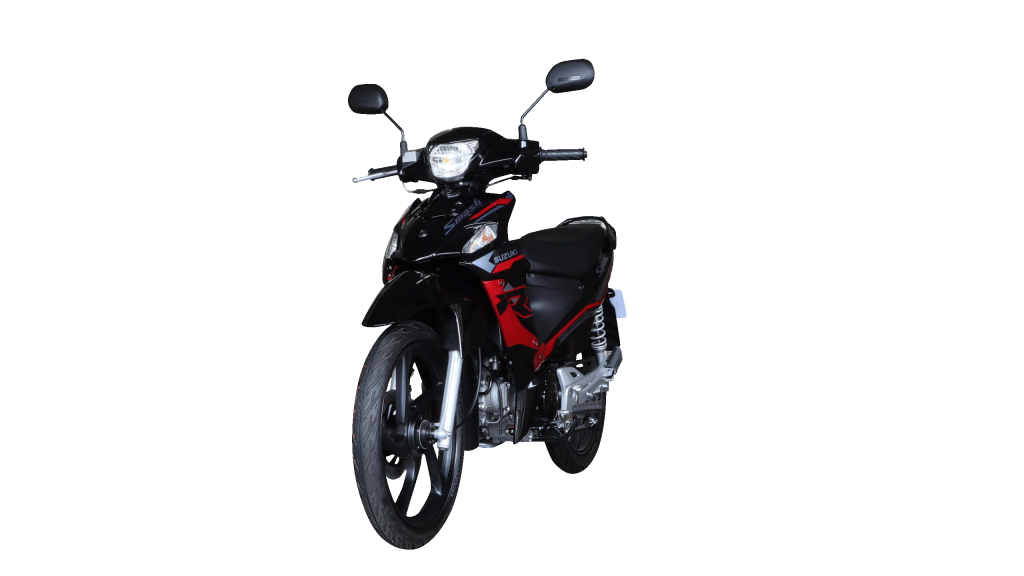

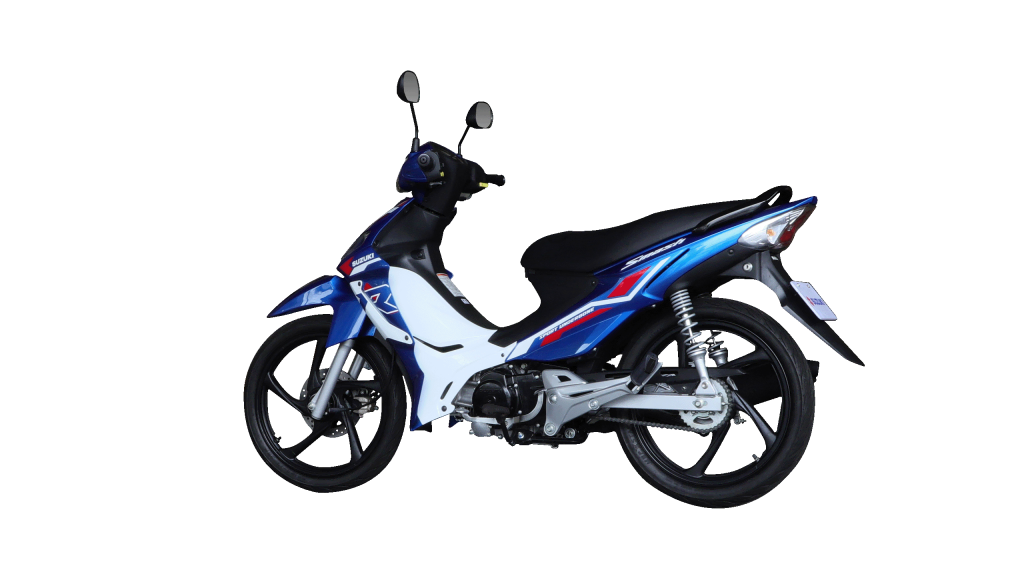

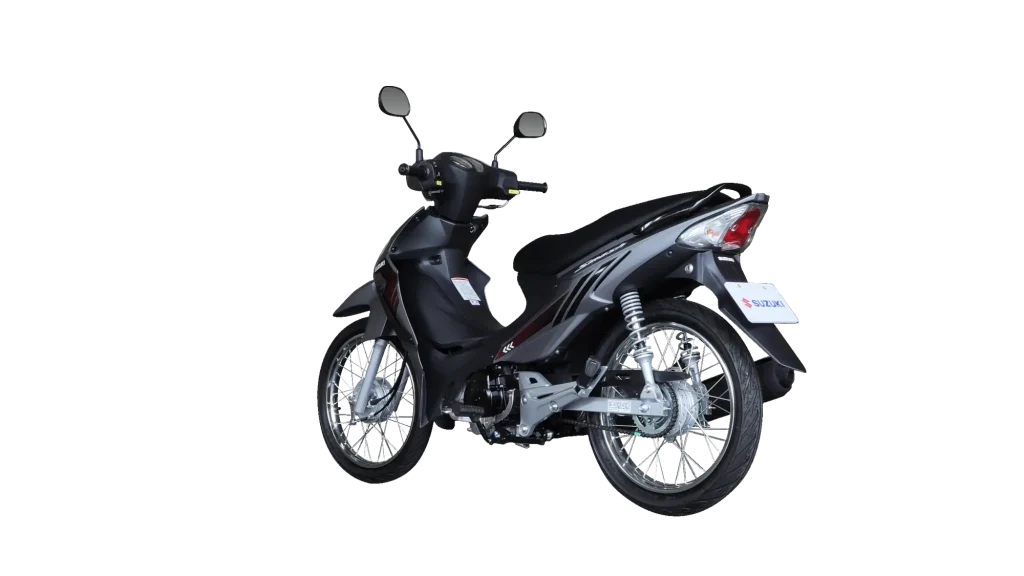

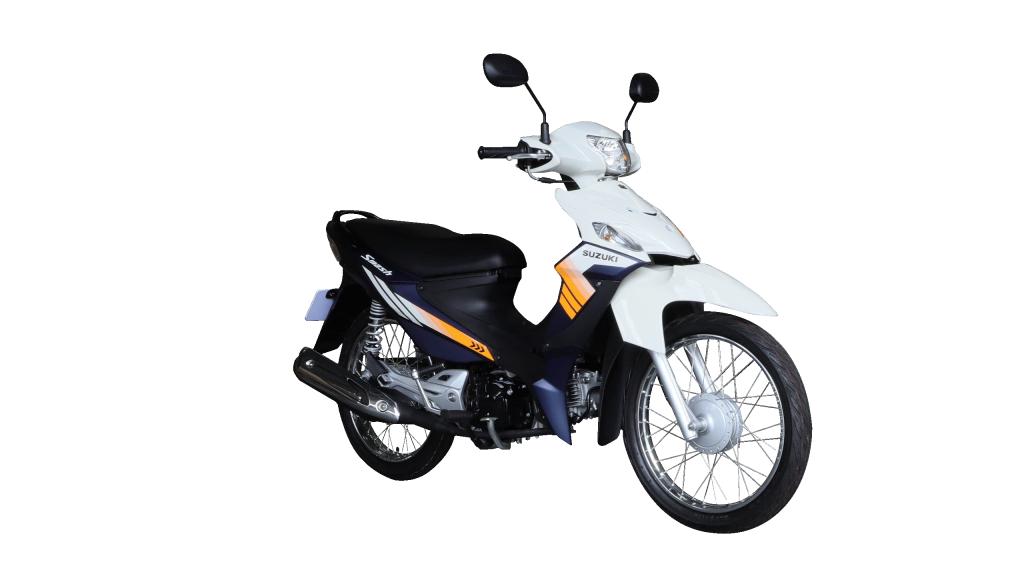

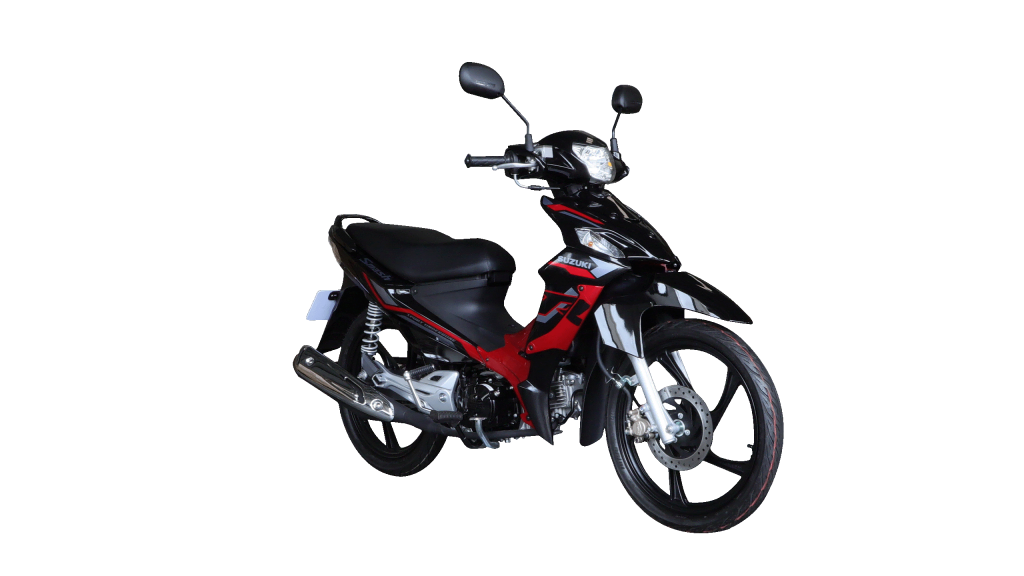

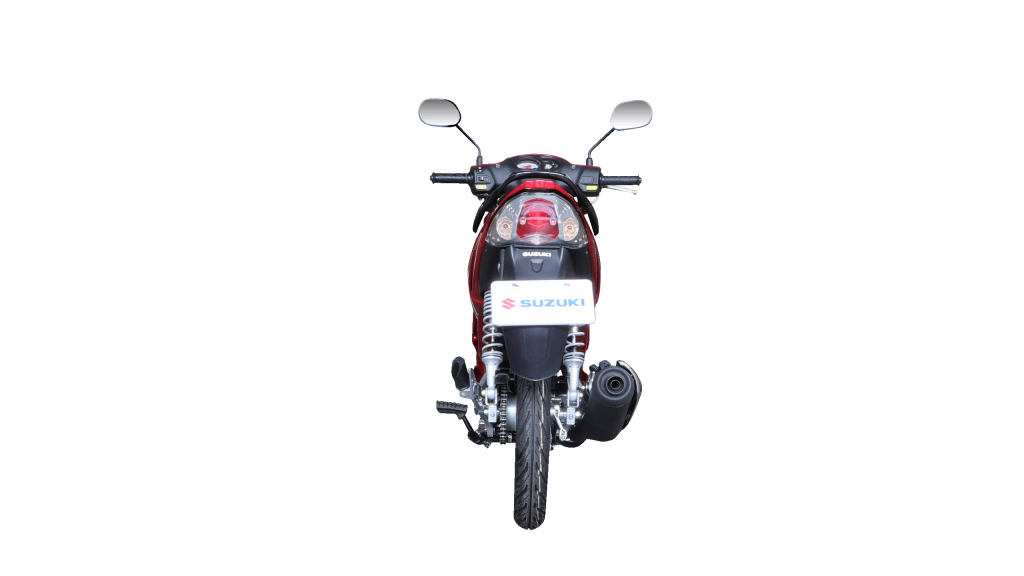

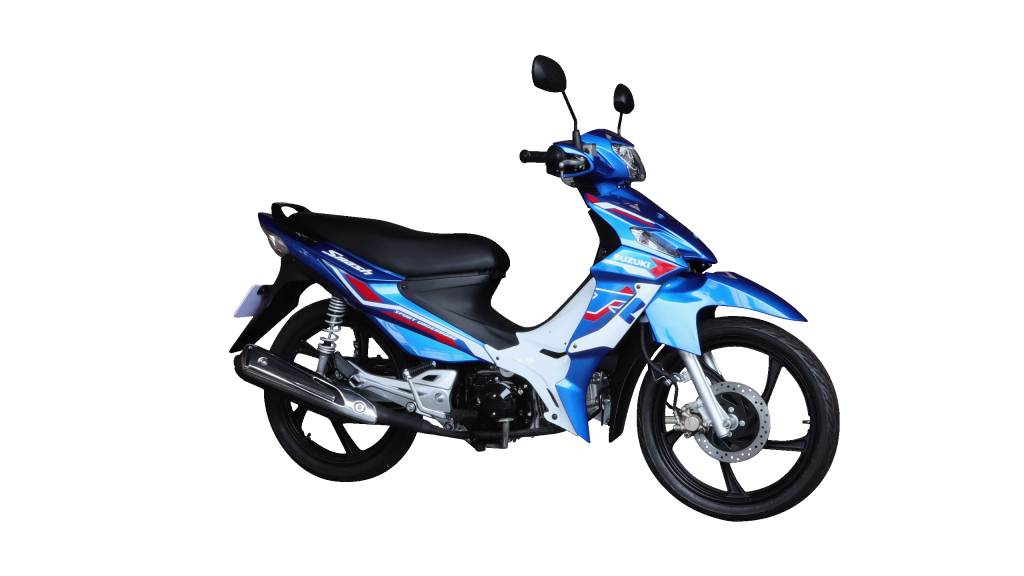

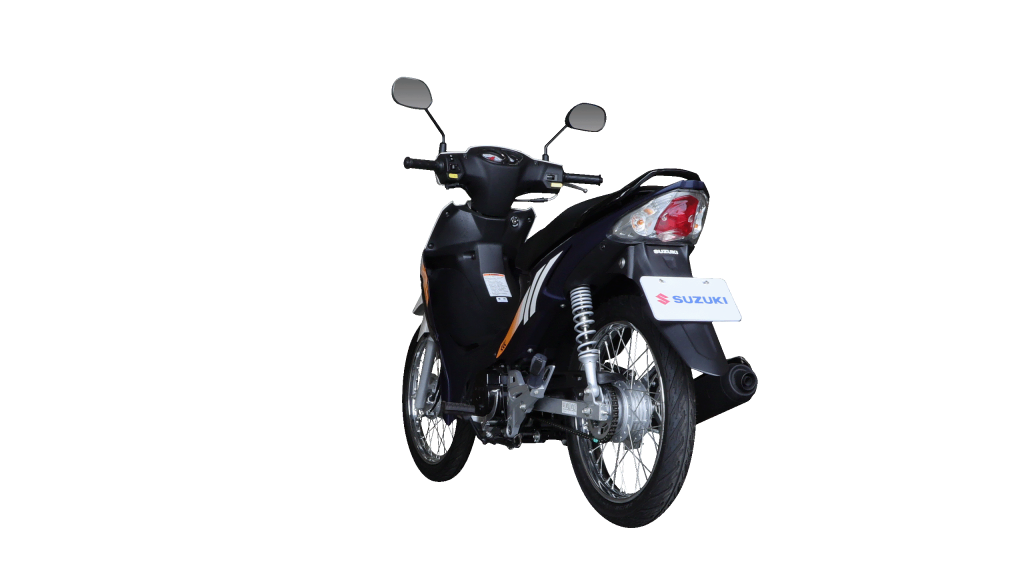

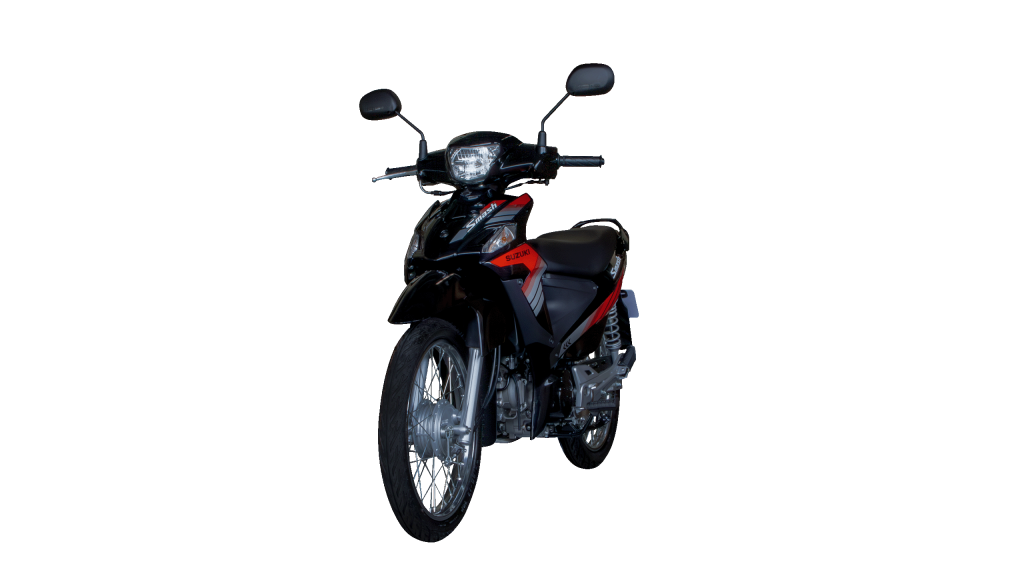

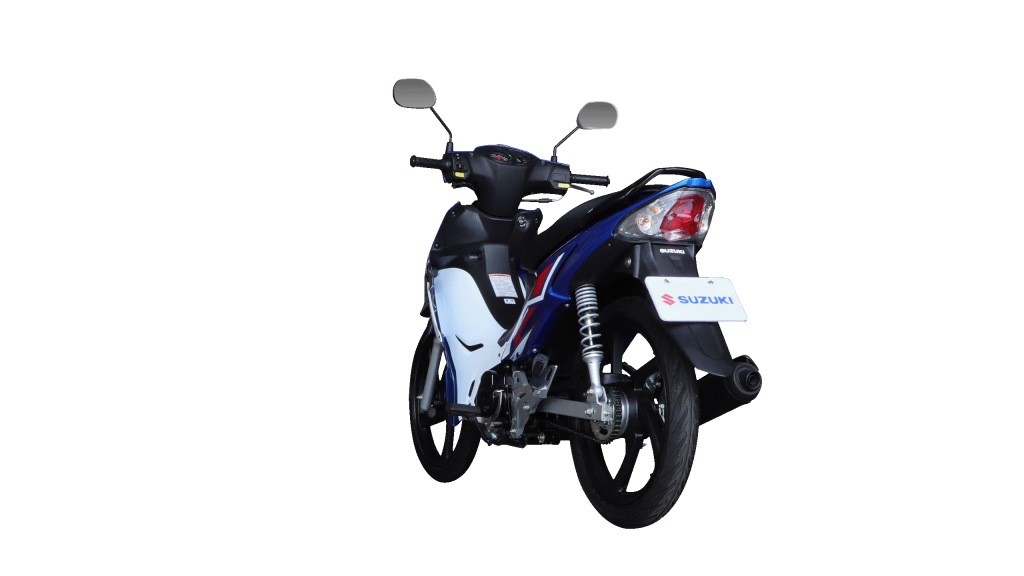

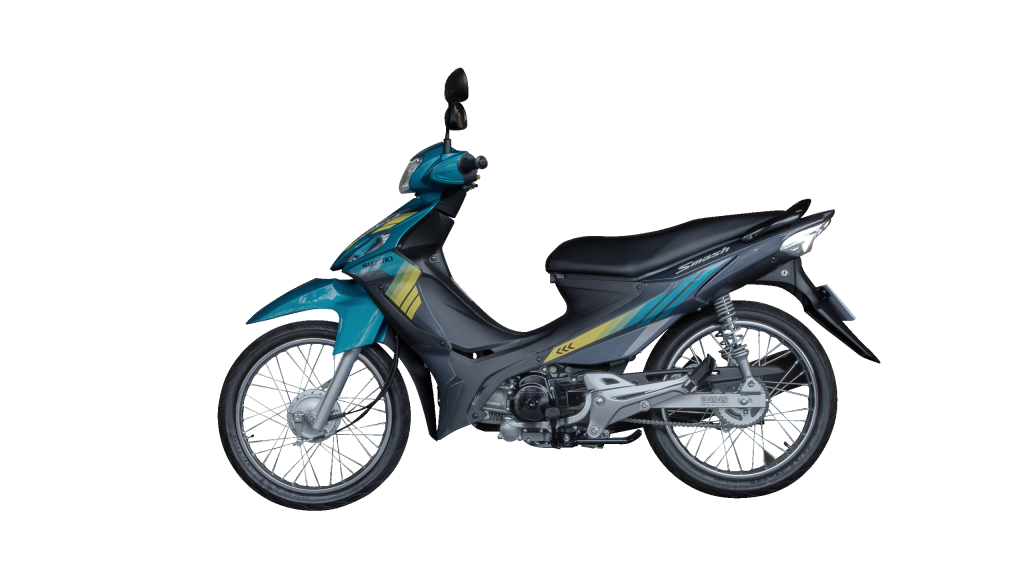

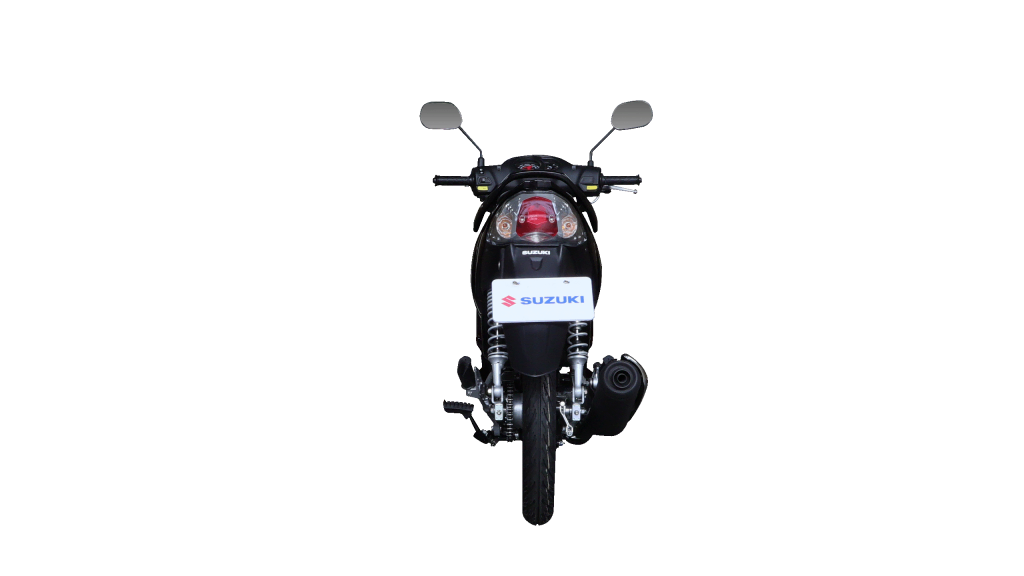

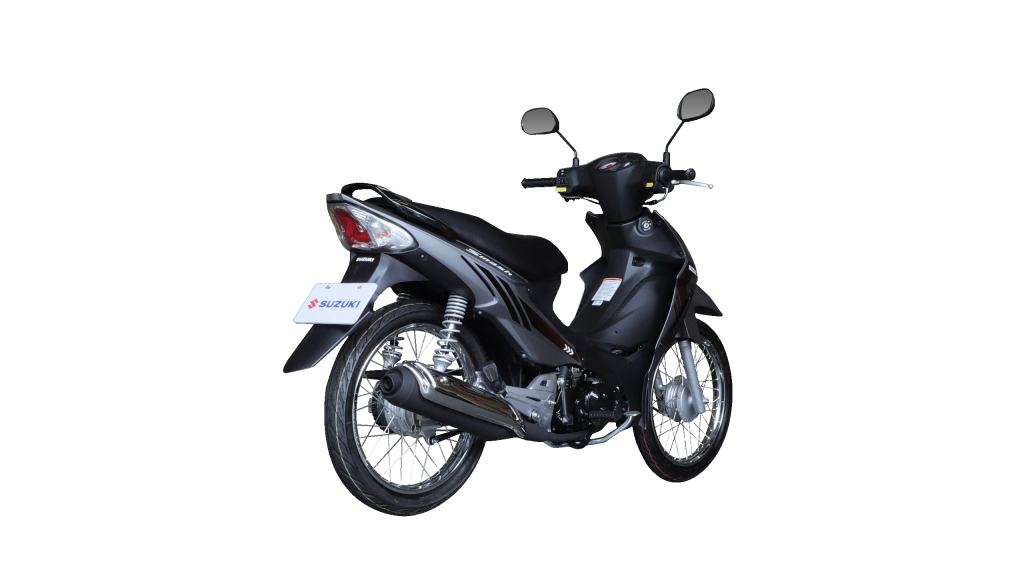

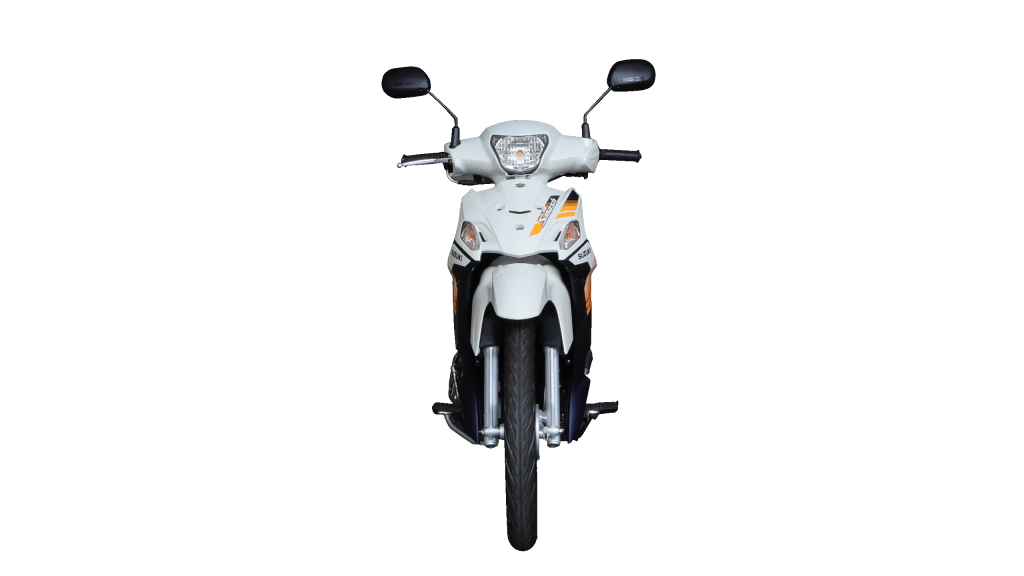

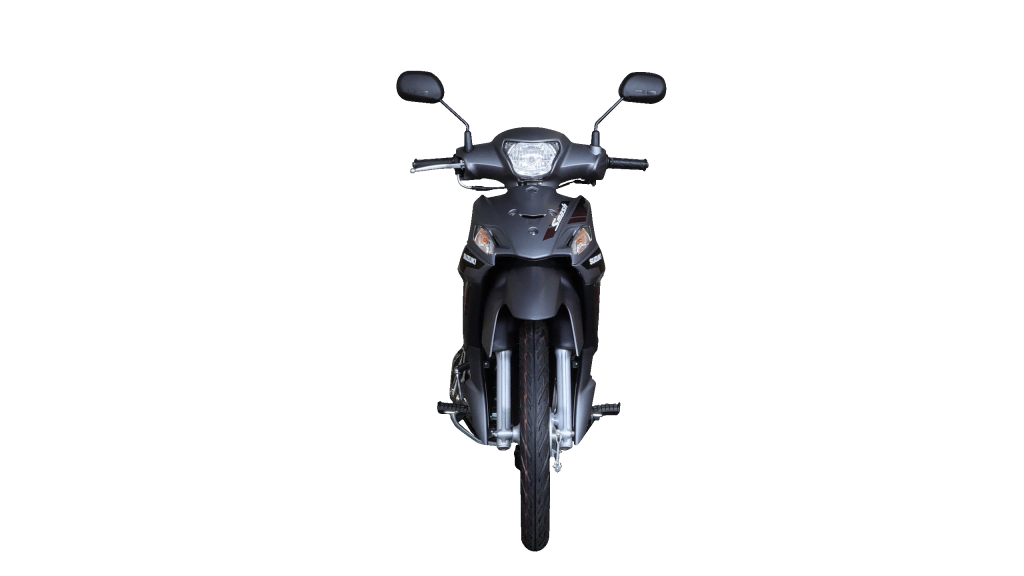

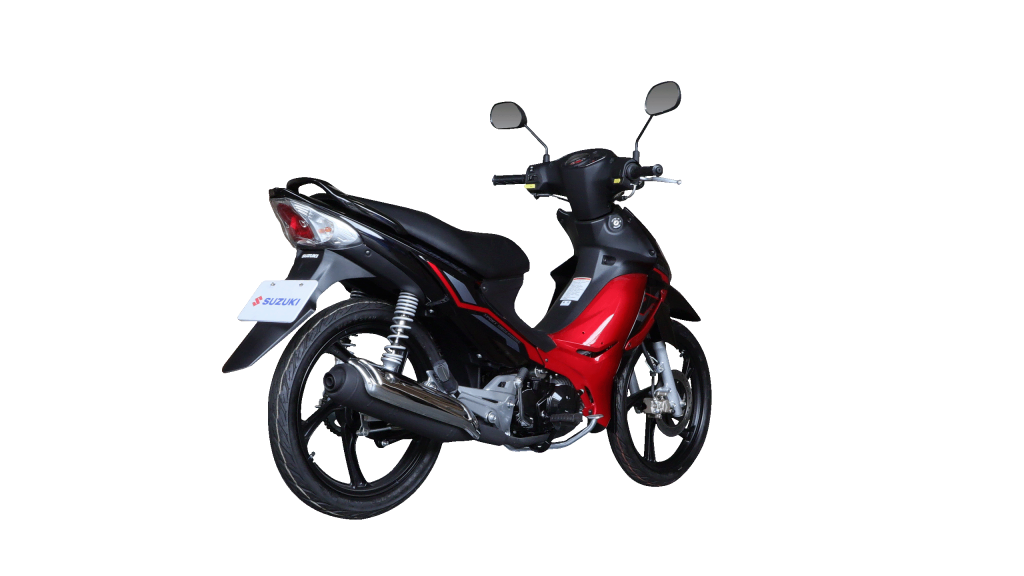

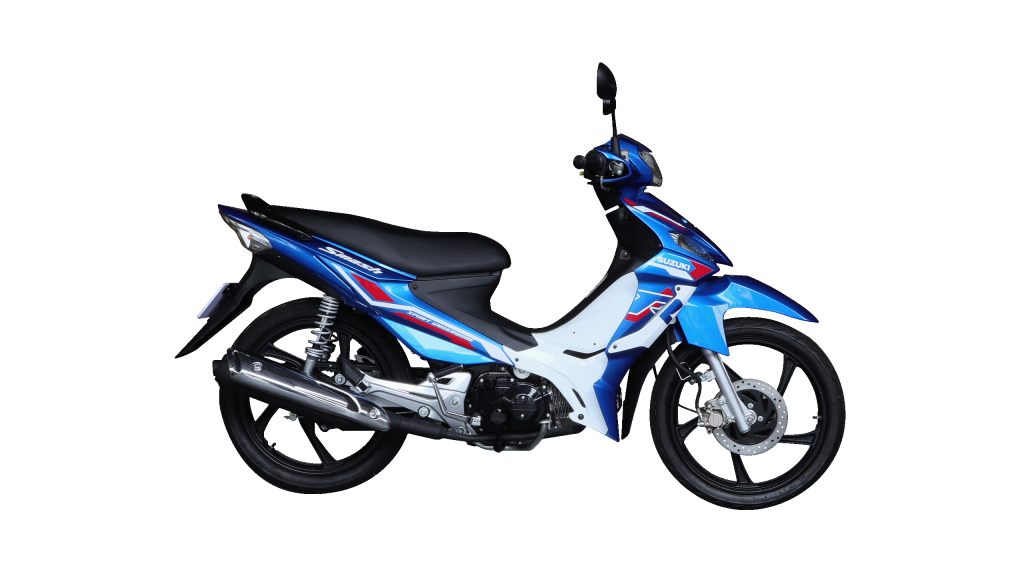

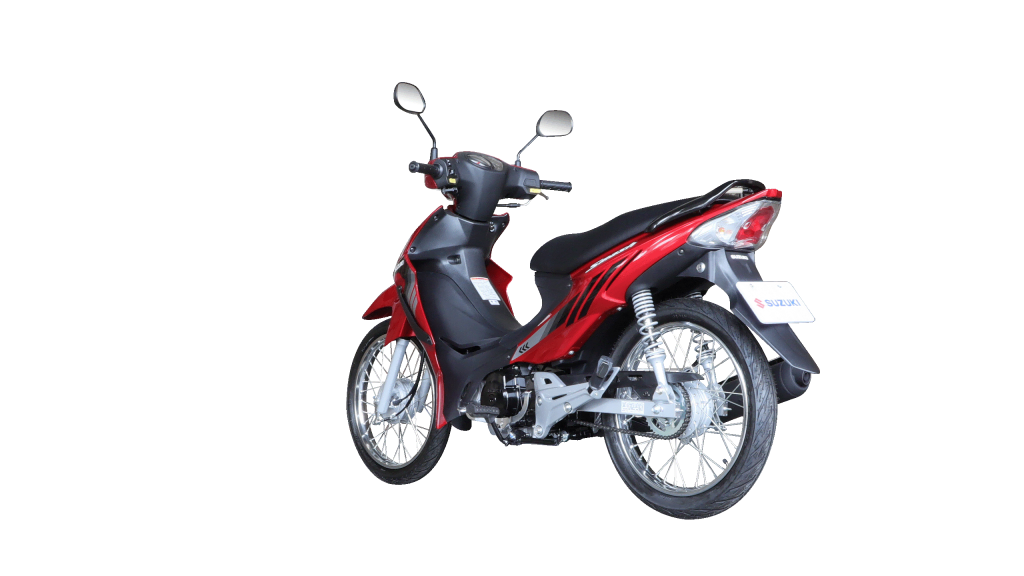

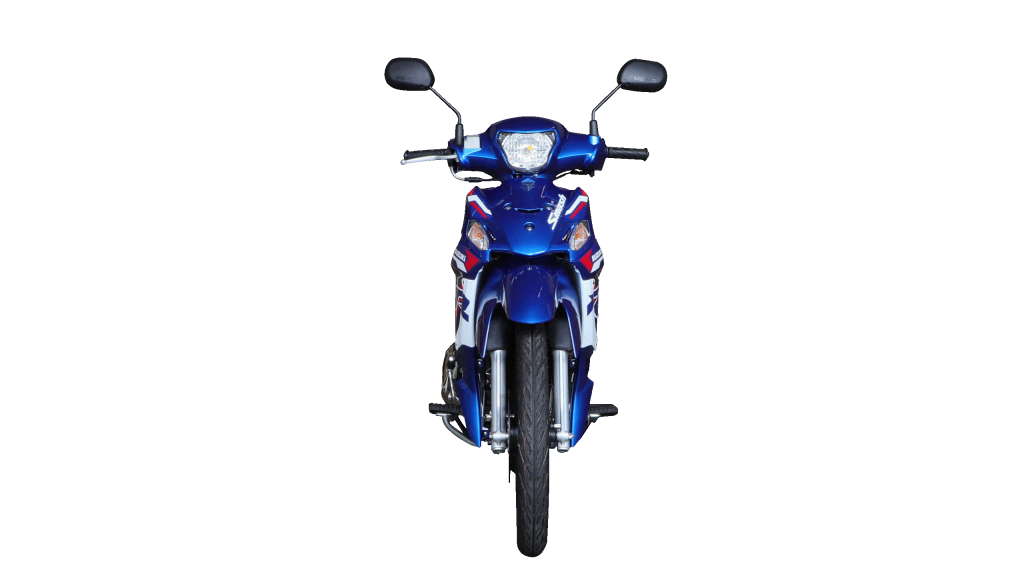

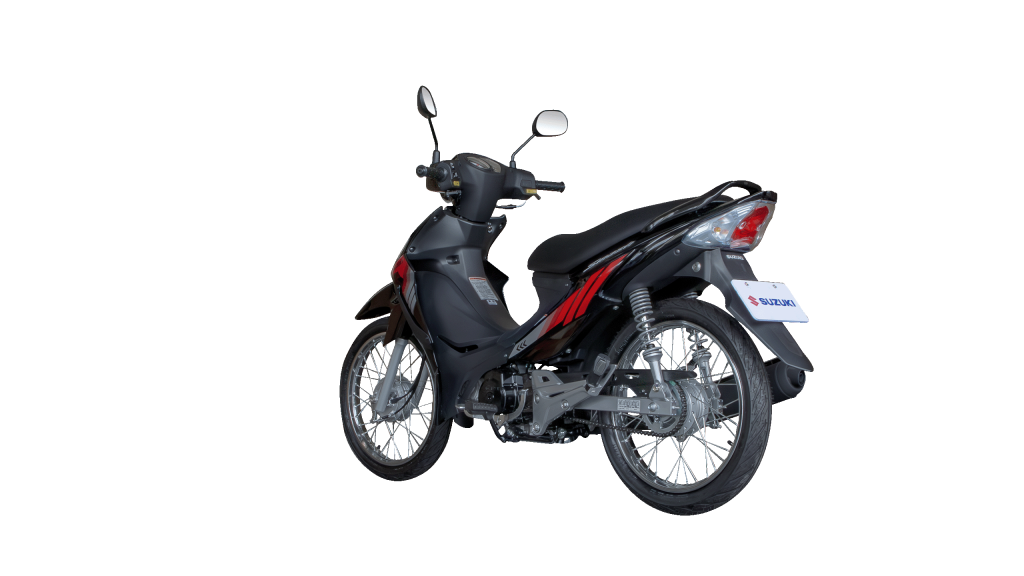

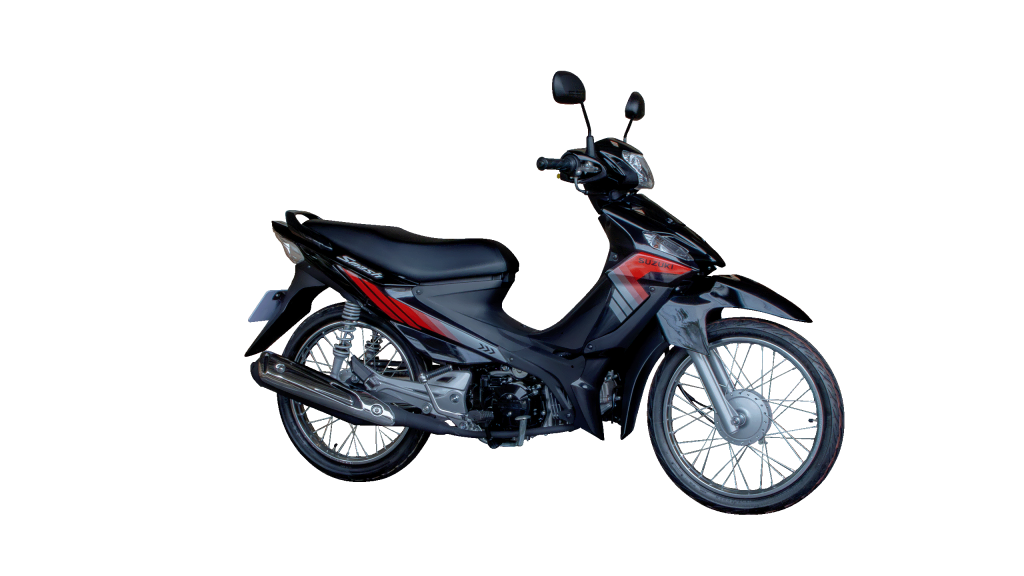

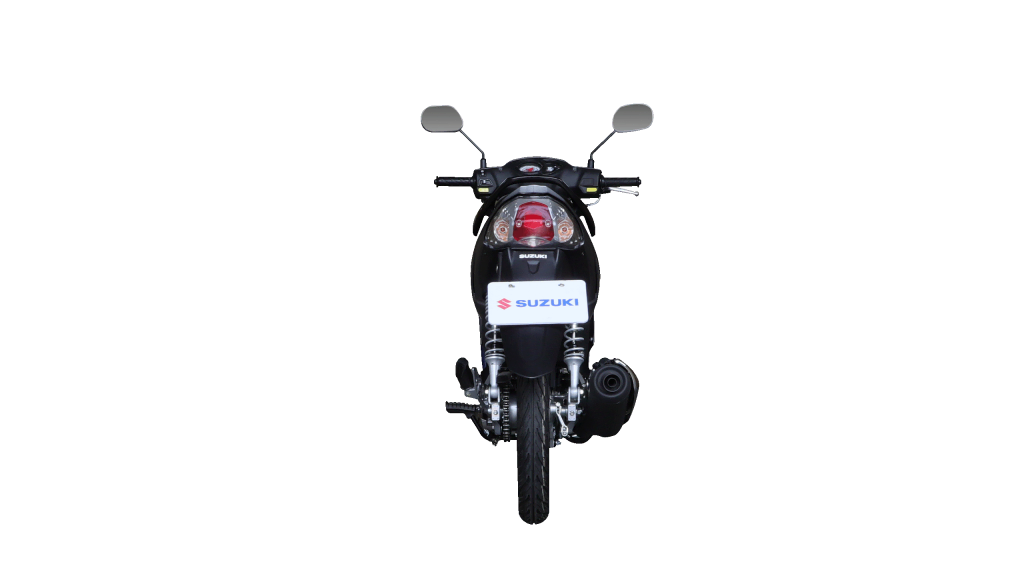

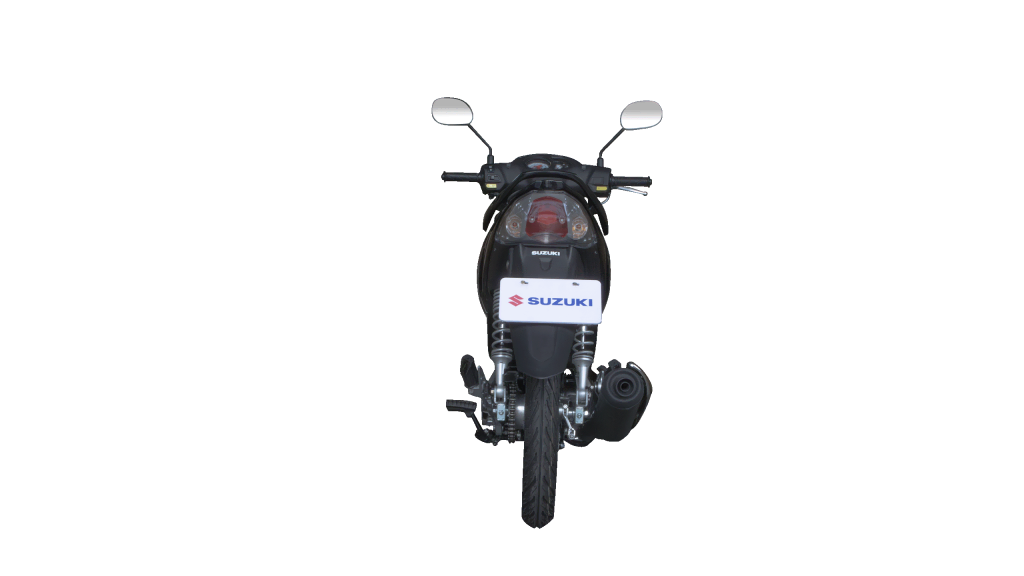

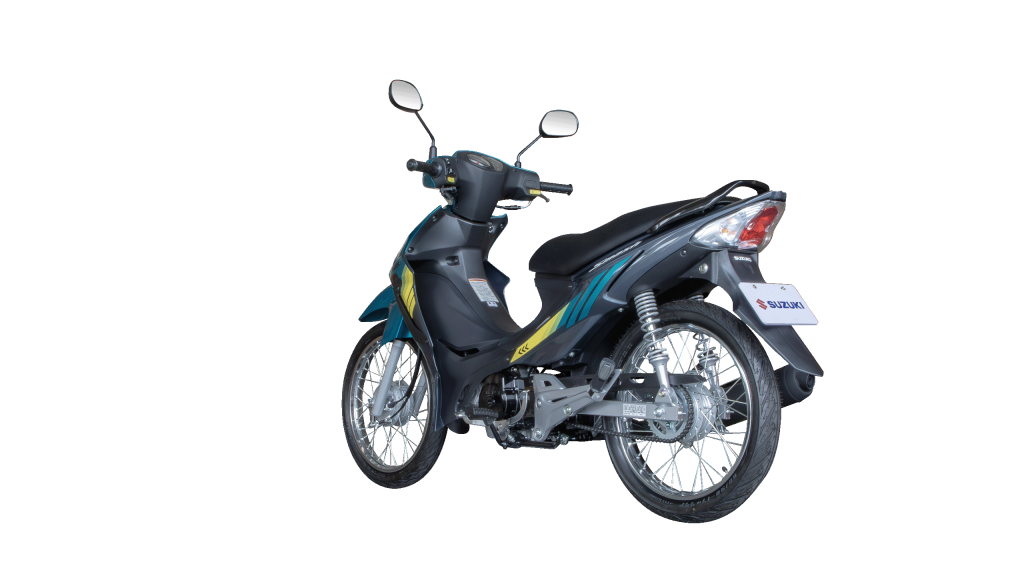

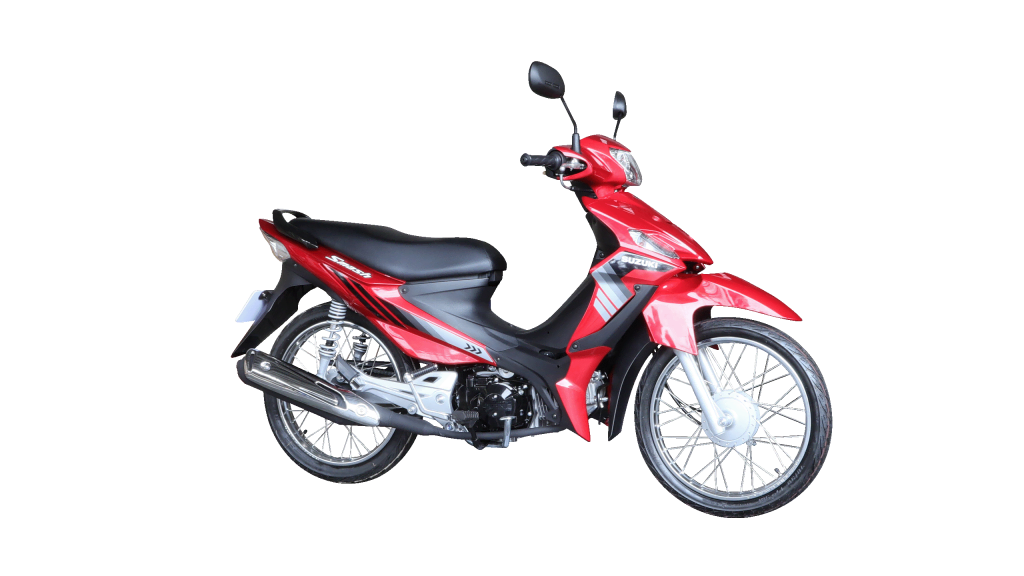

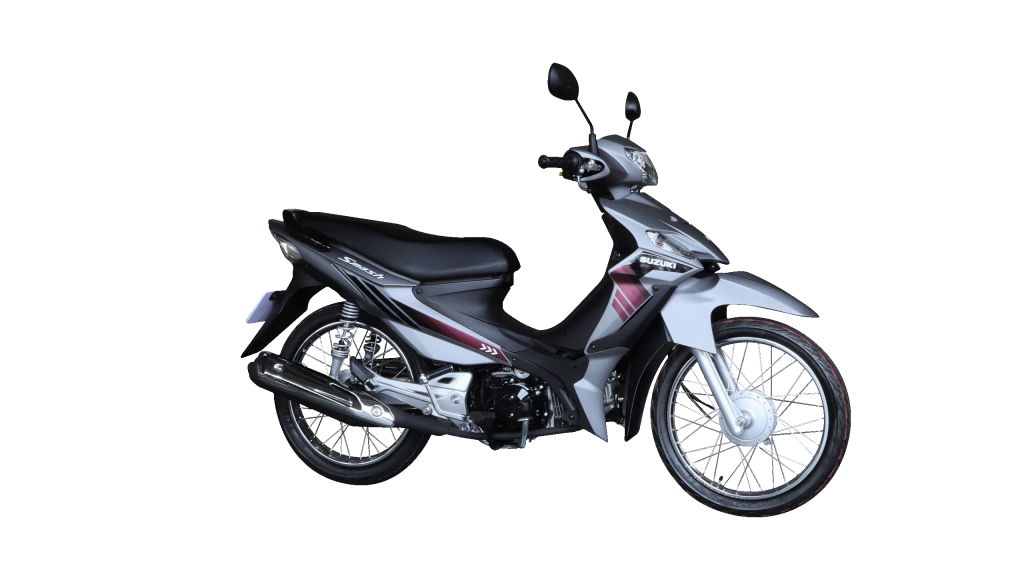

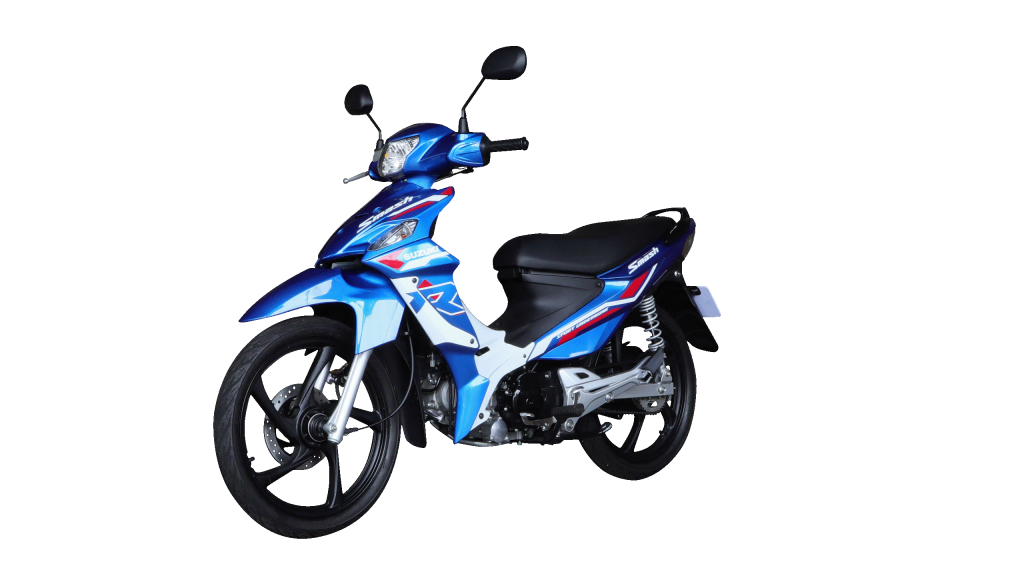

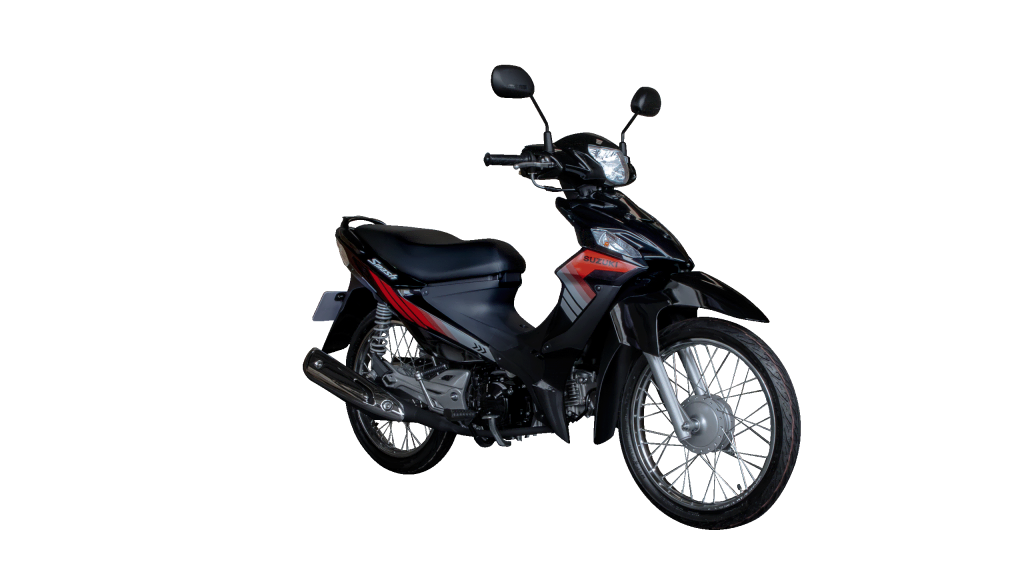

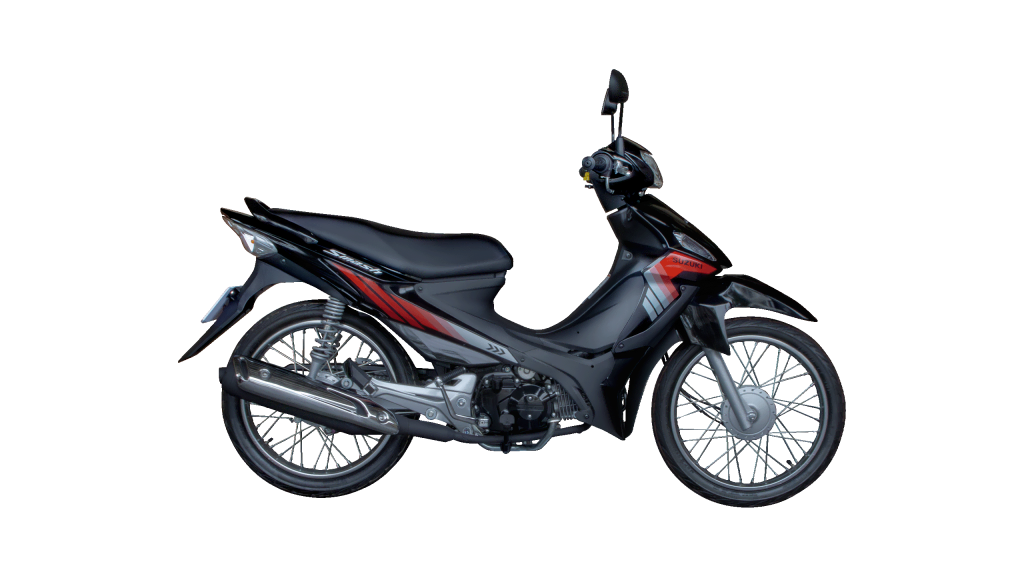

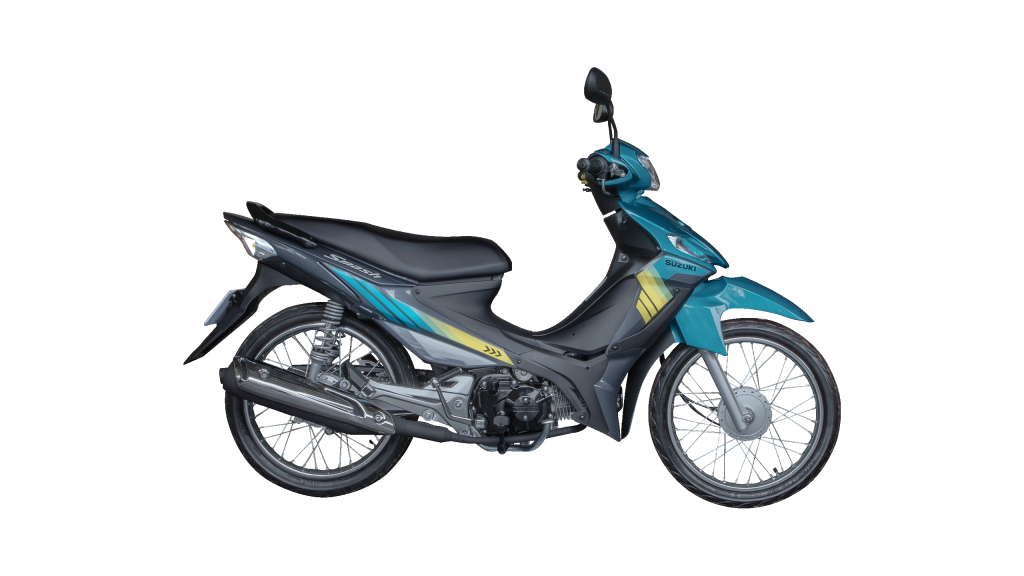

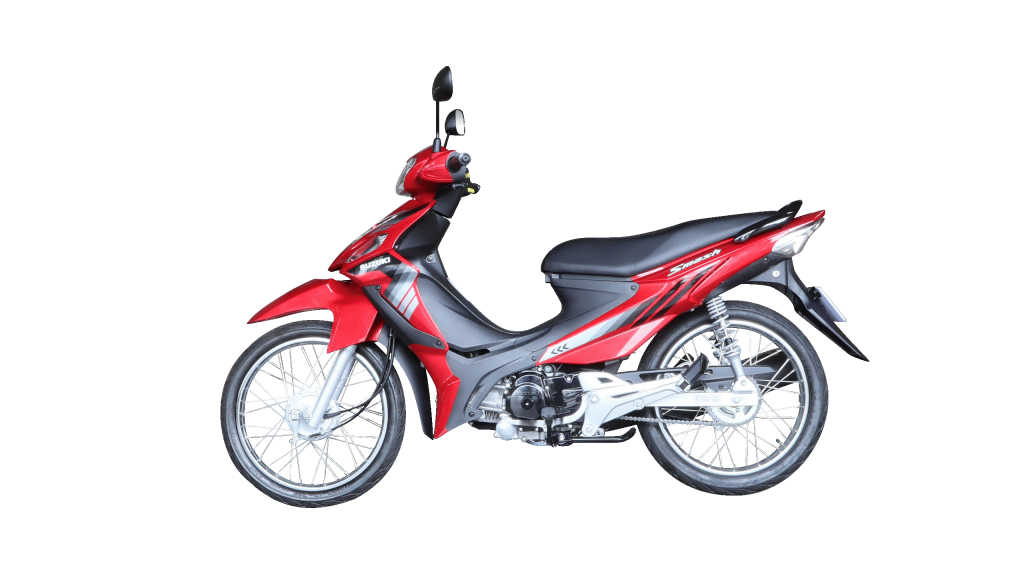

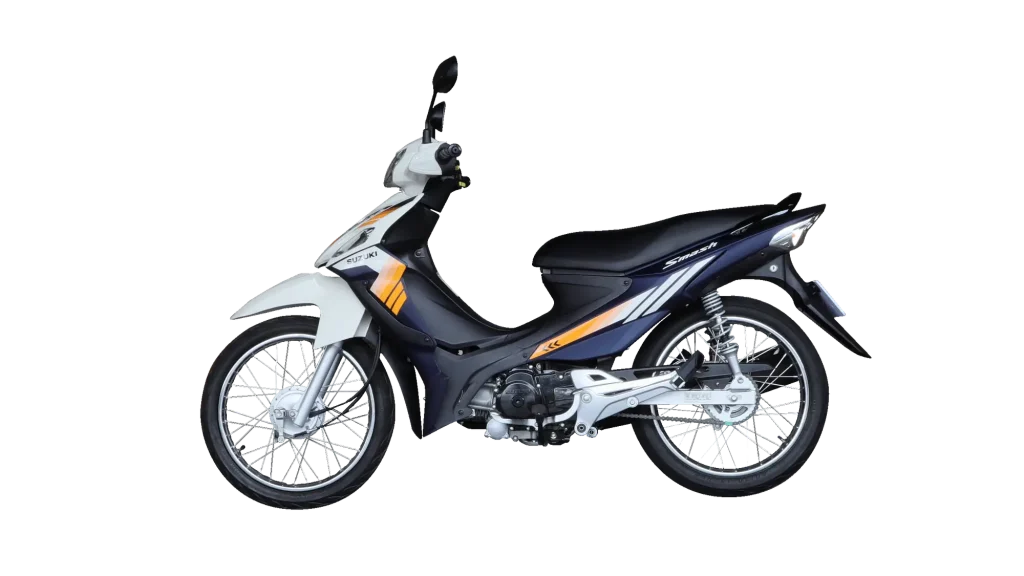

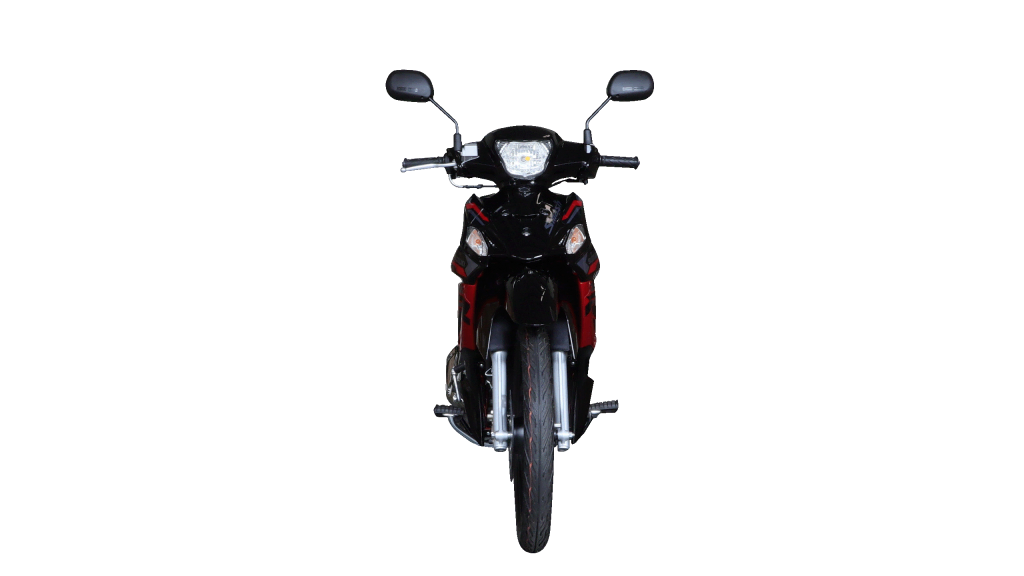

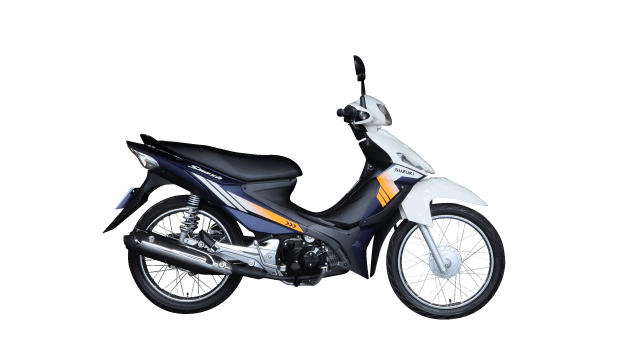

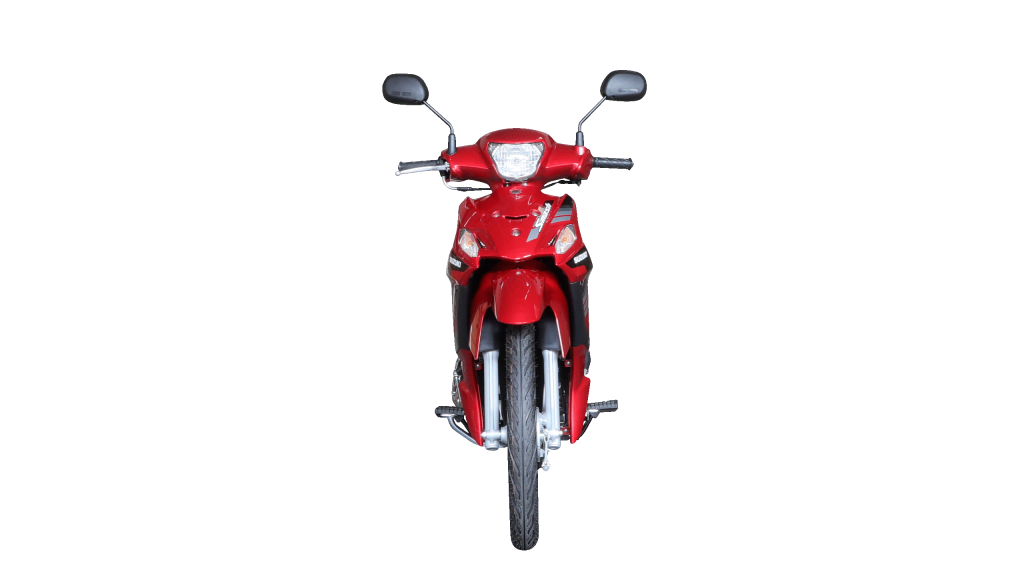

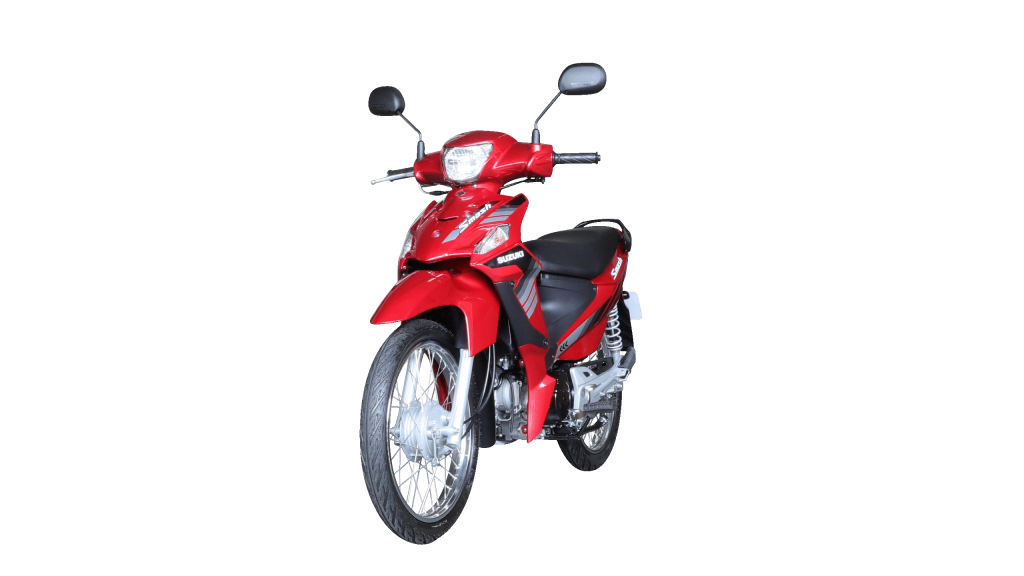

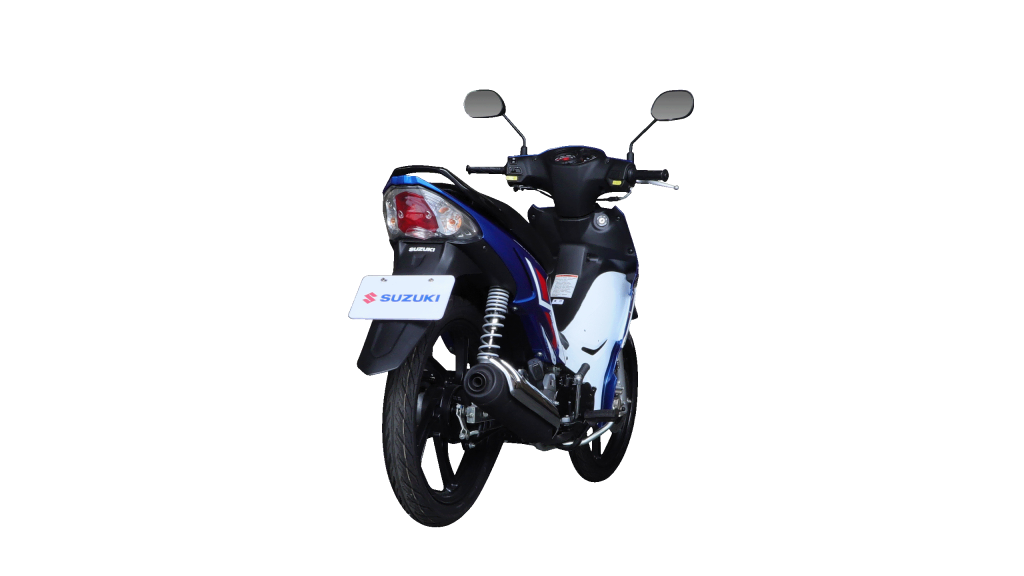

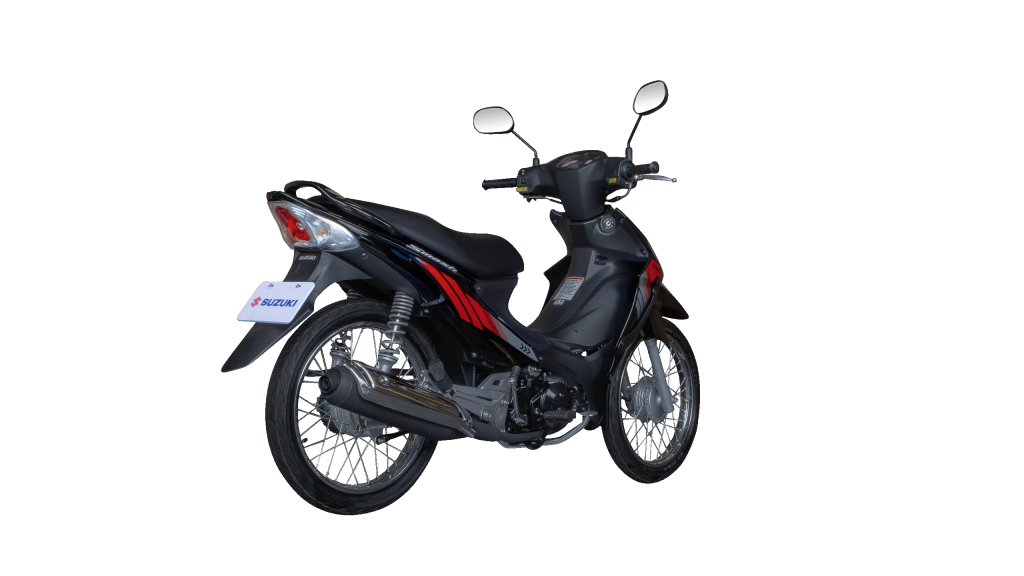

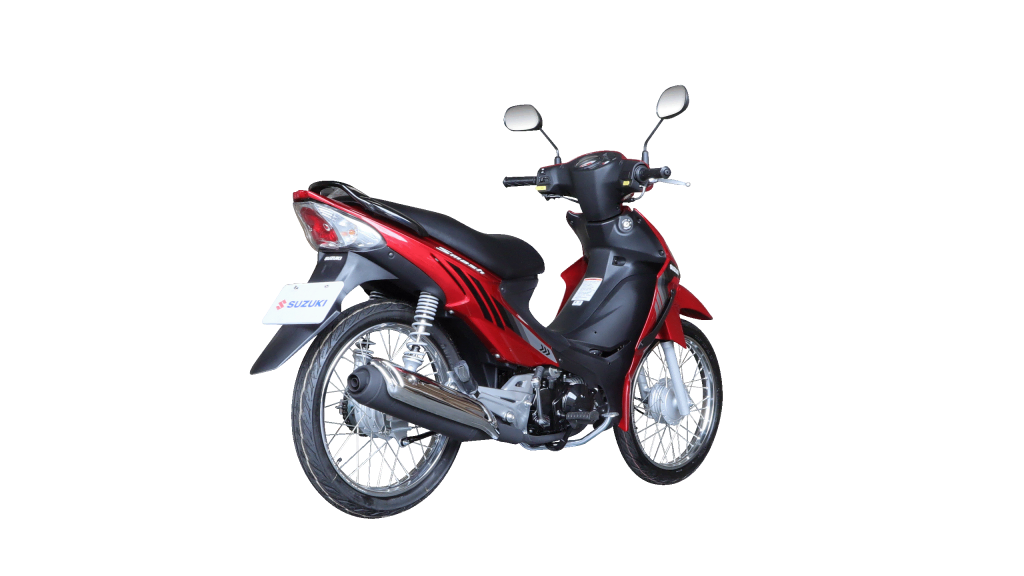

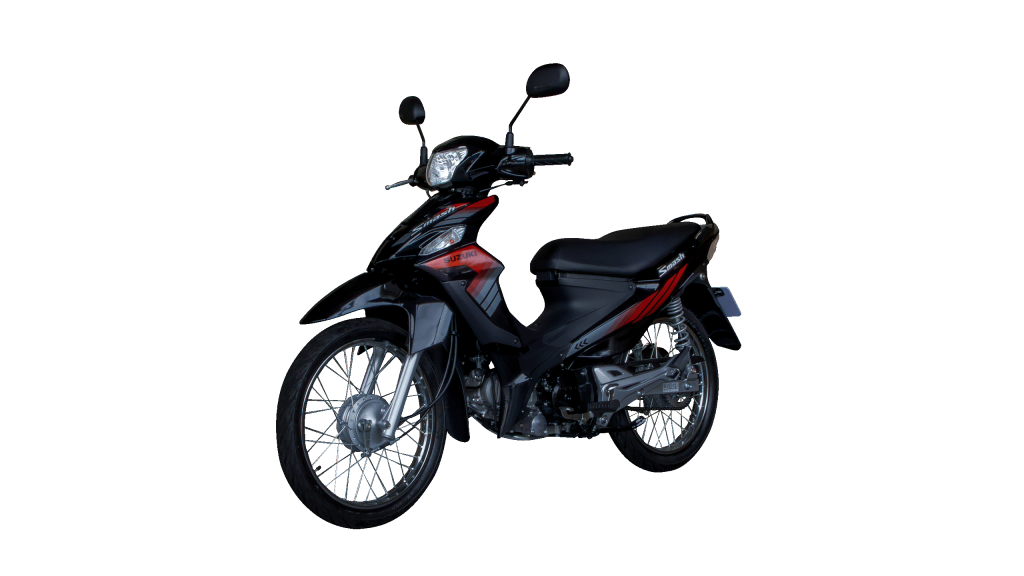

Color Variants

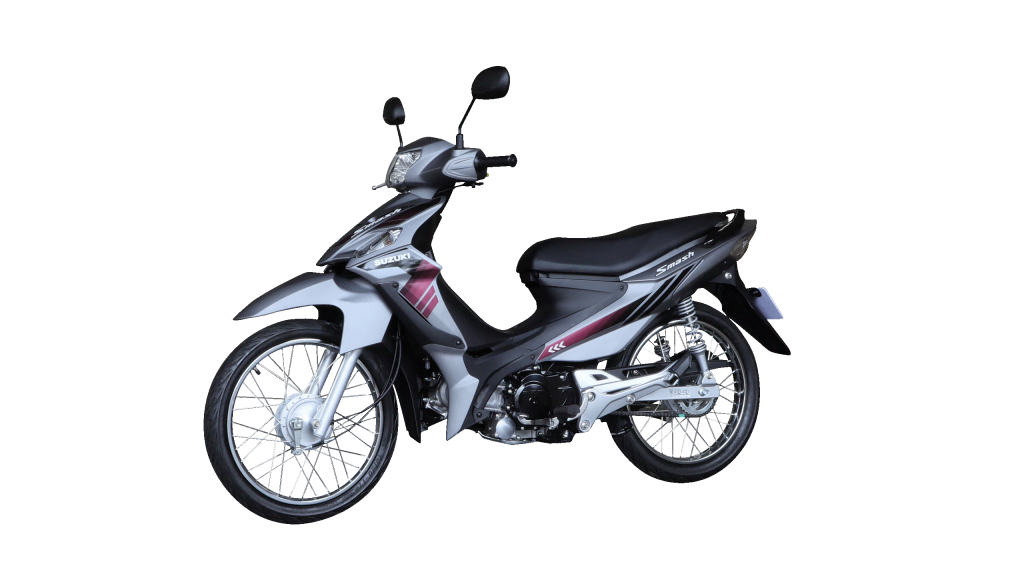

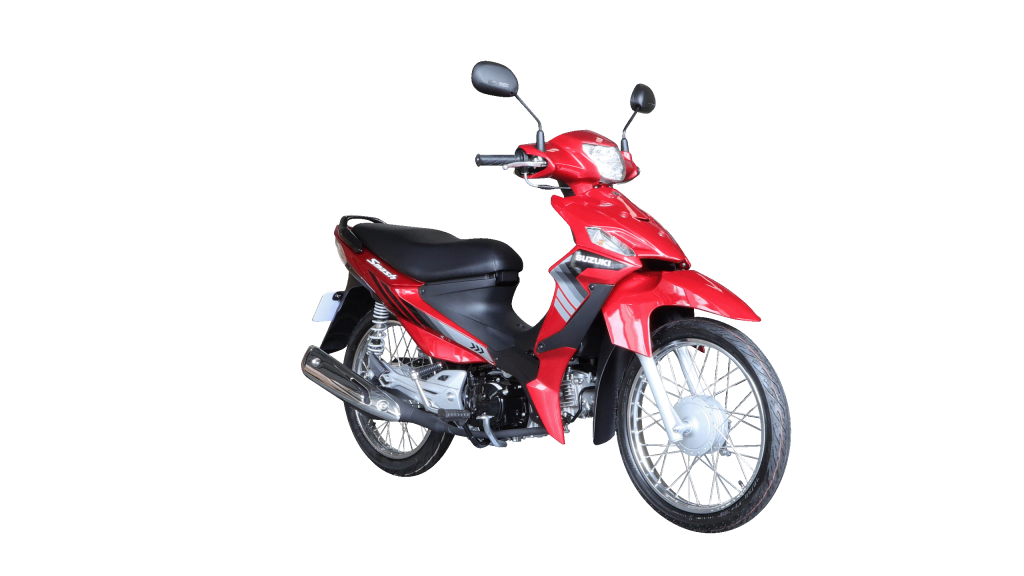

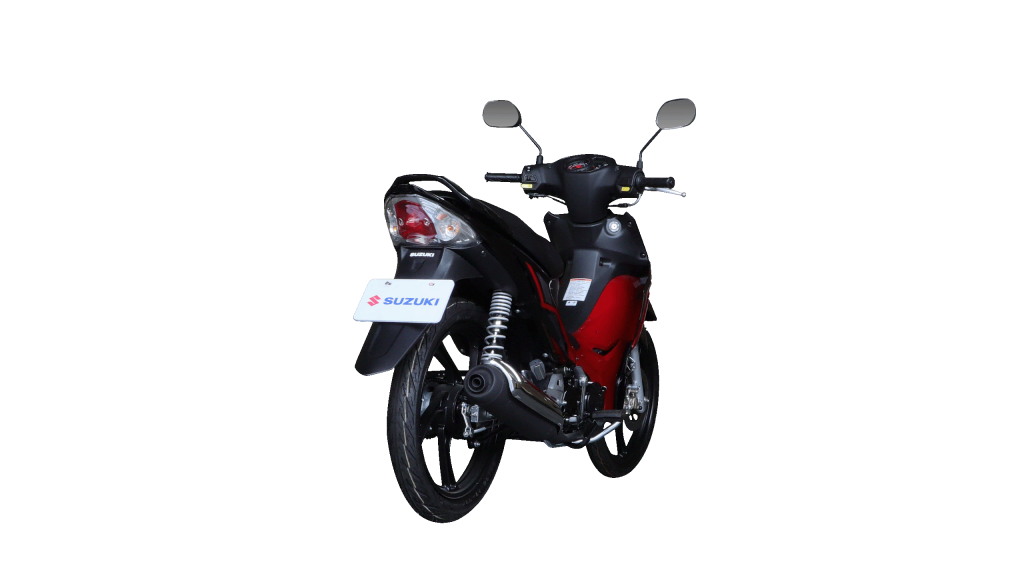

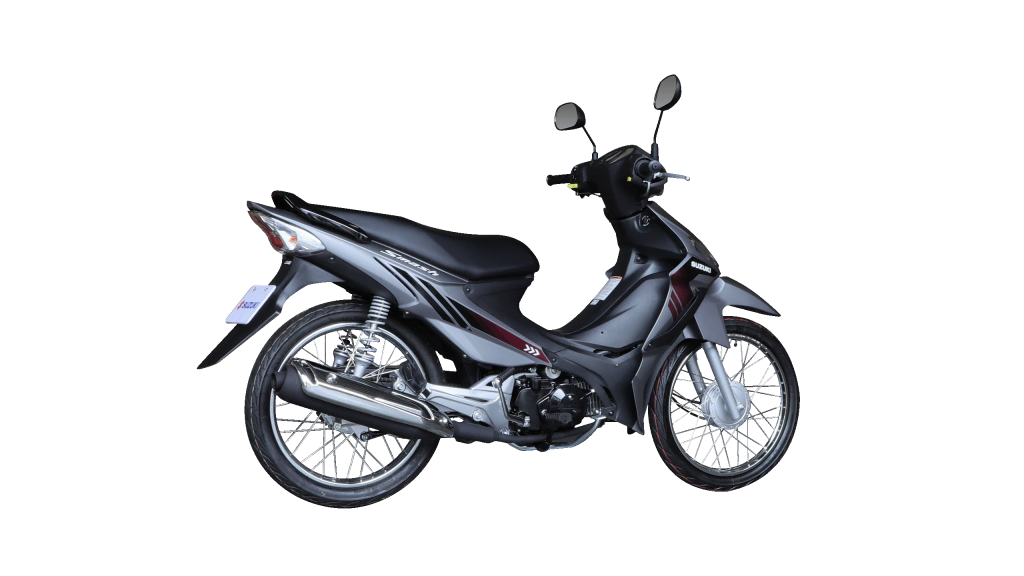

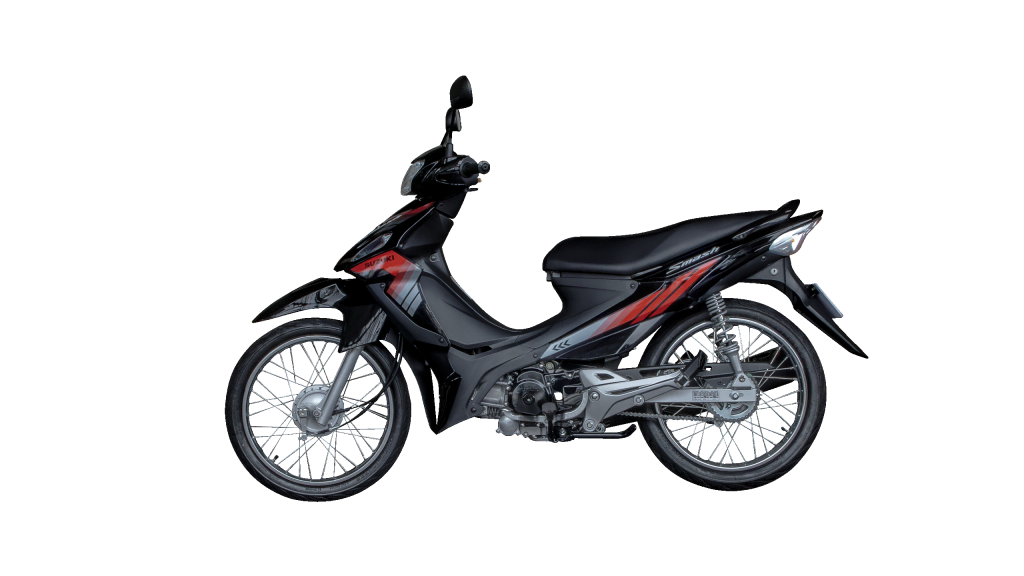

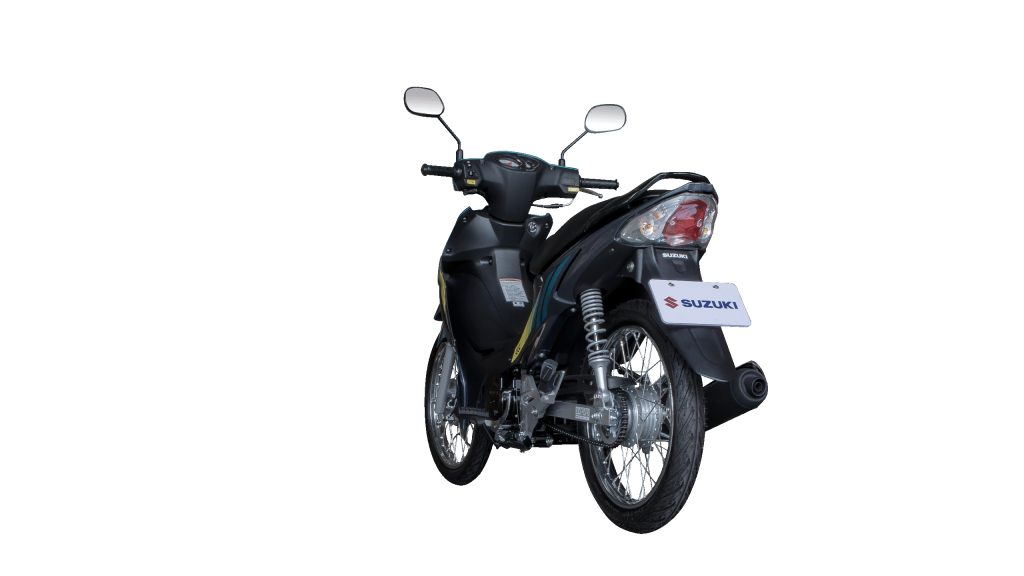

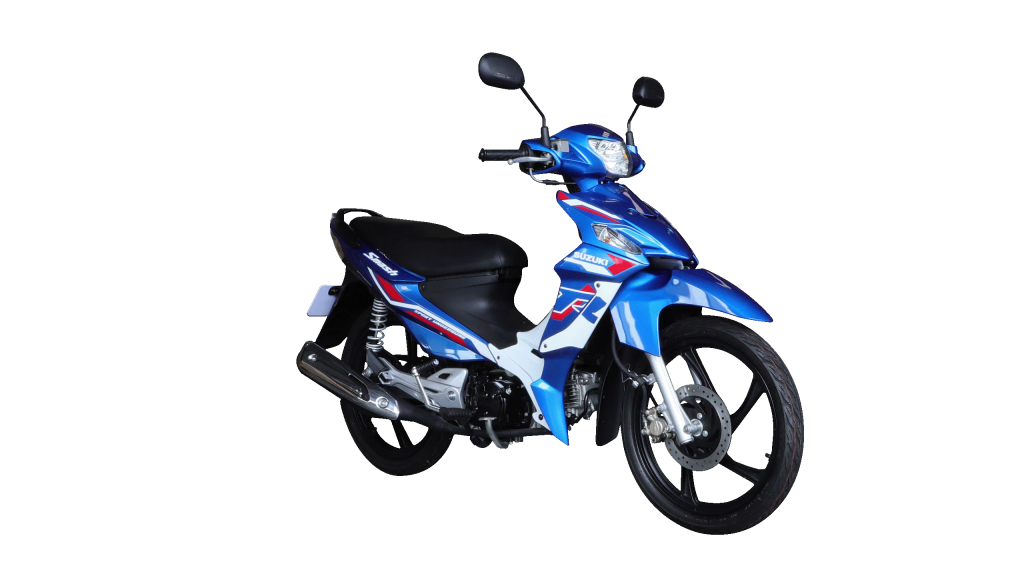

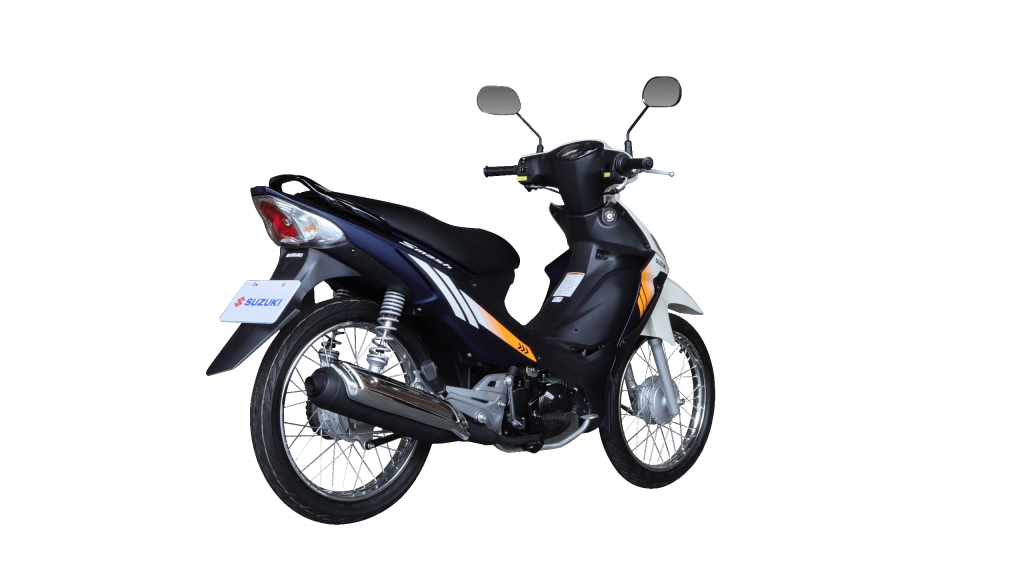

Show off your unique style! Smash Carb comes in the following color variants

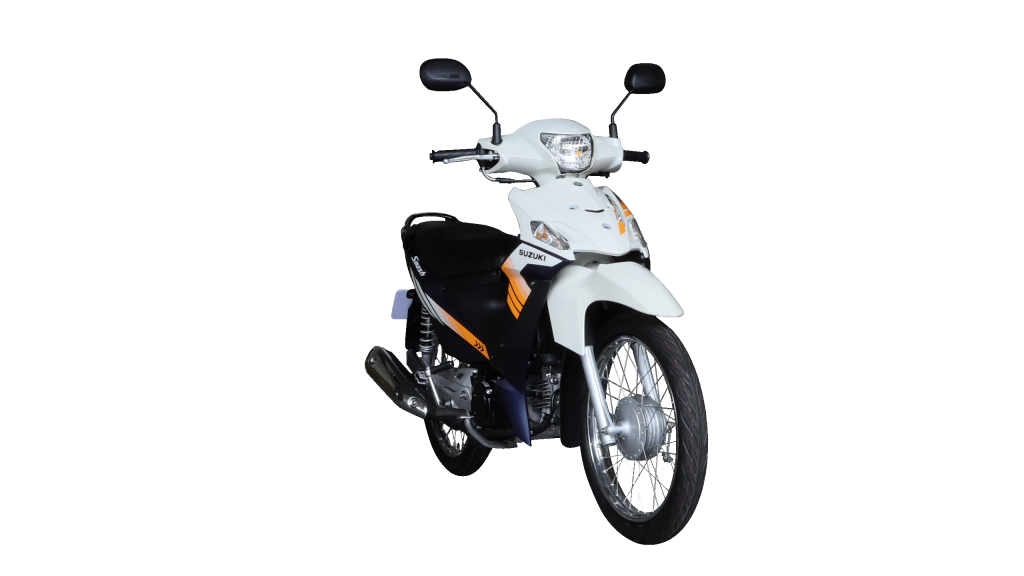

  • Pearl Bright Ivory

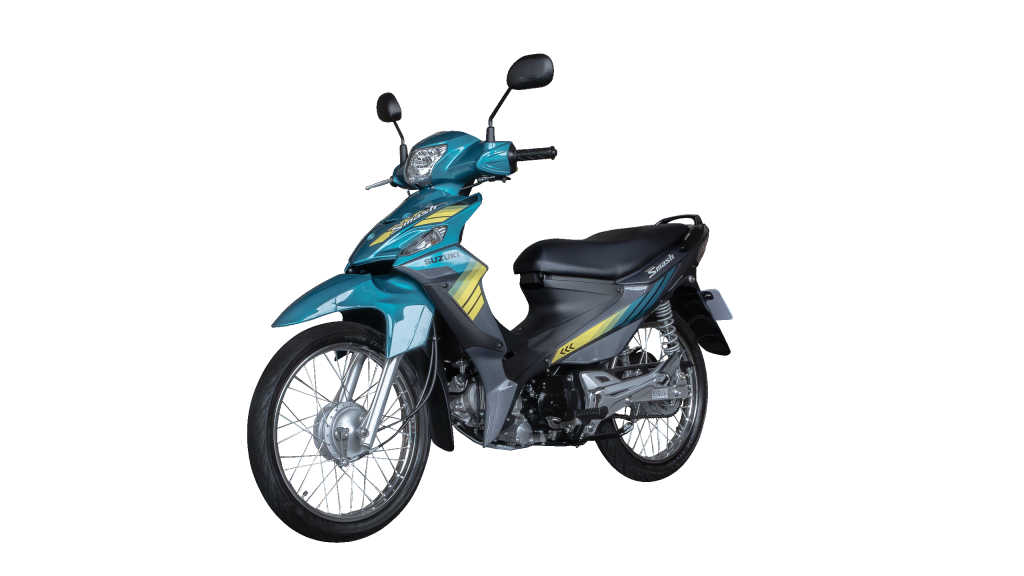

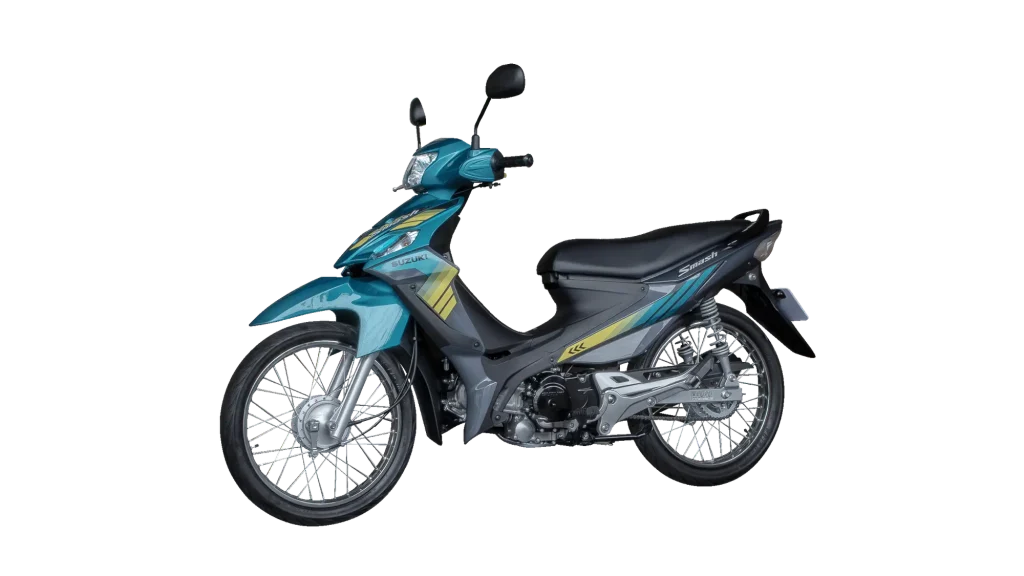

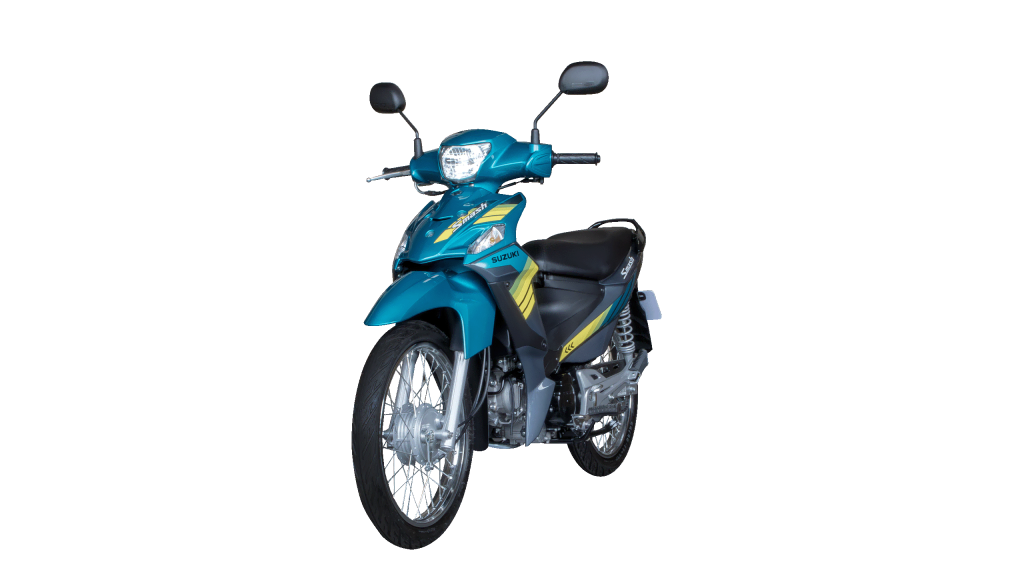

  • Candy Jackal Green

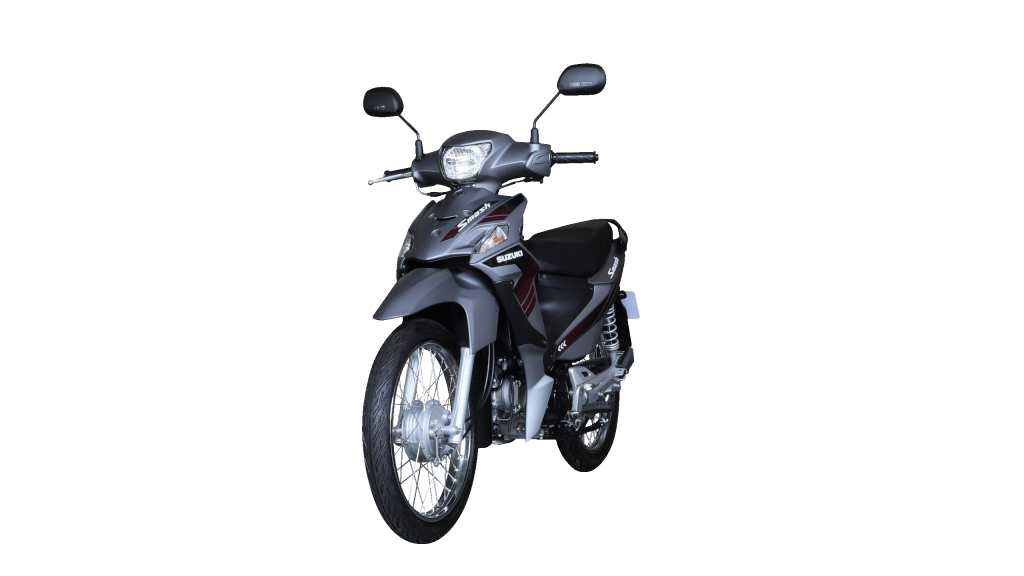

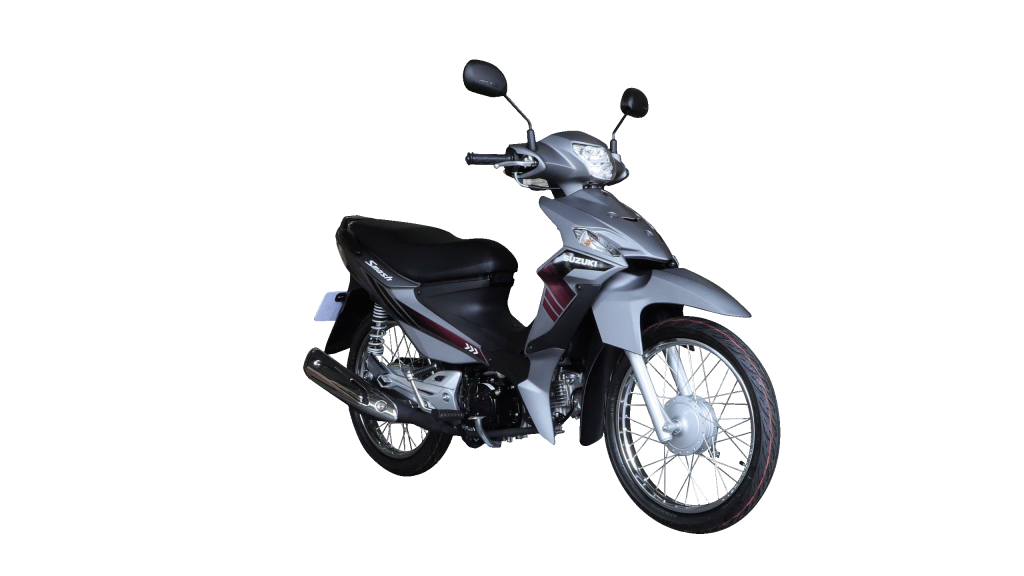

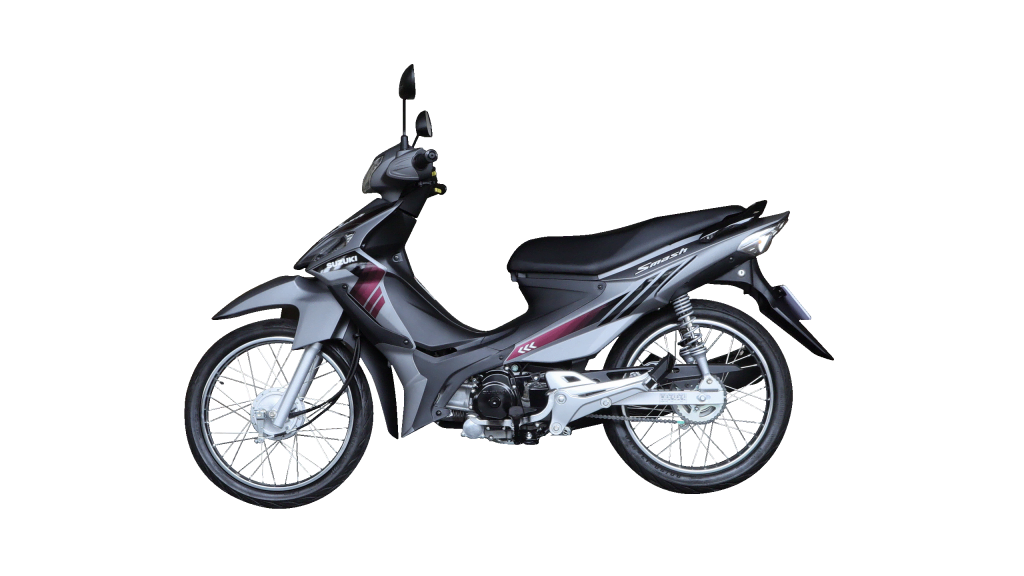

  • Metallic Matte Fibroin Gray

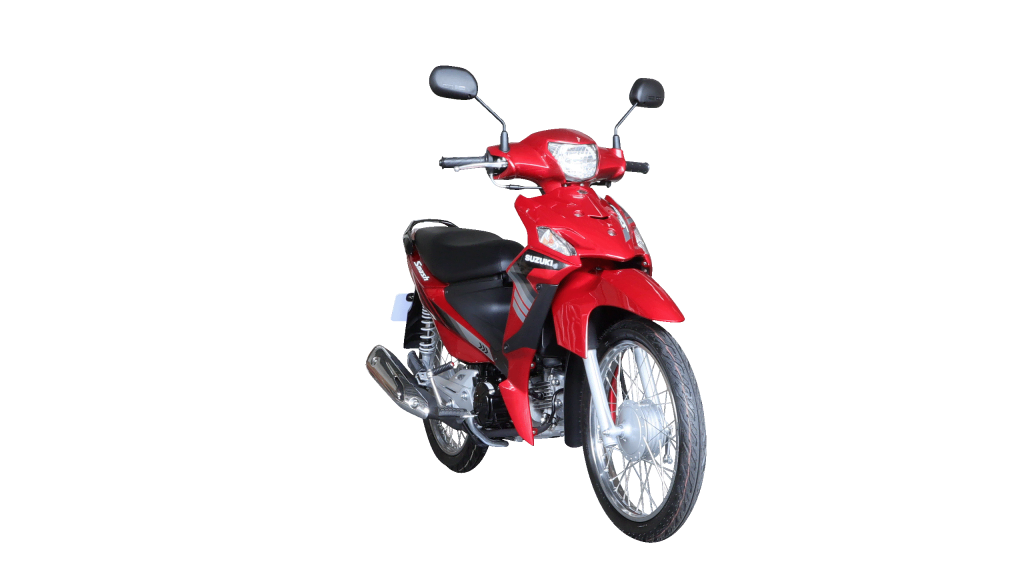

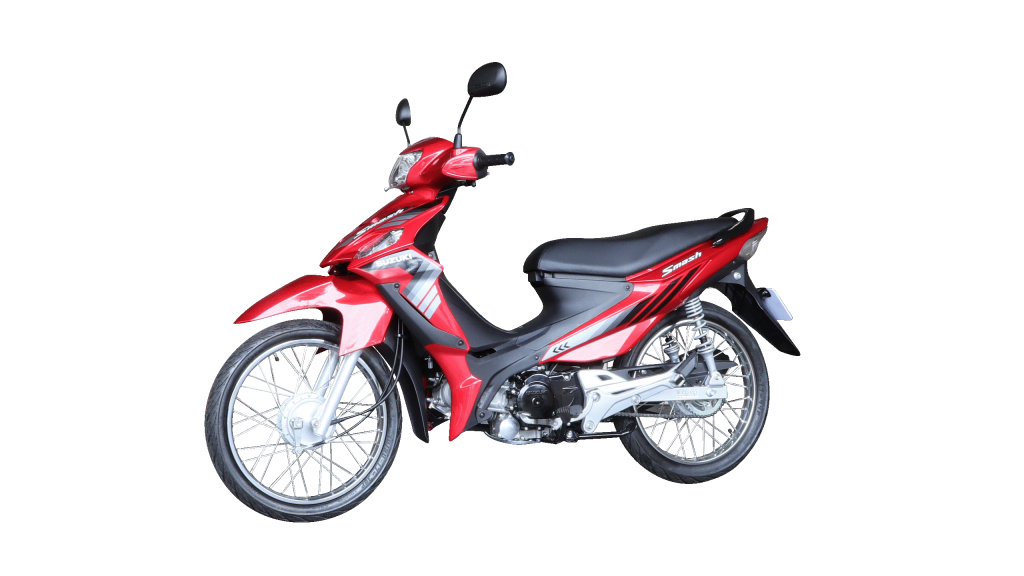

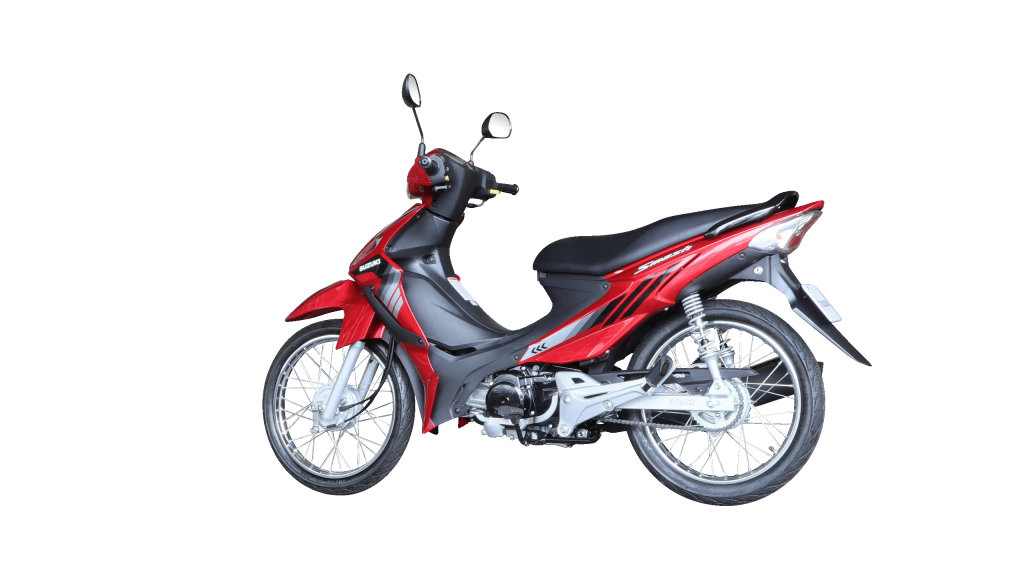

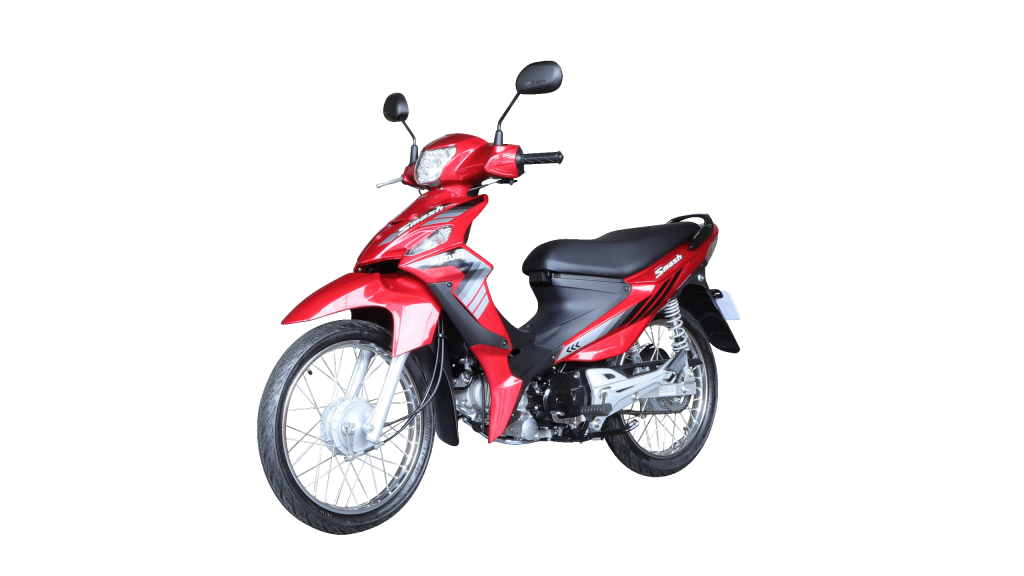

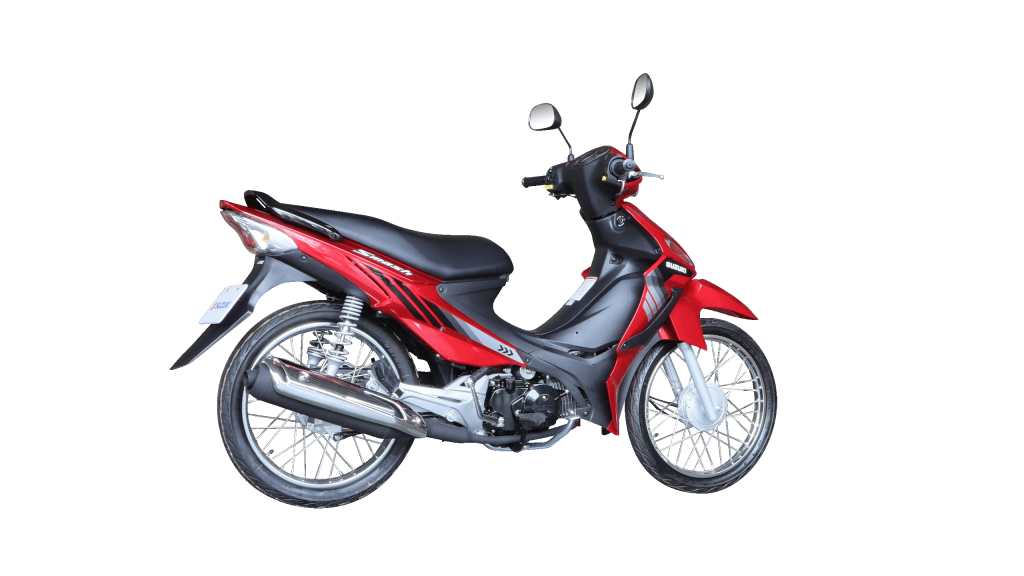

  • Candy Summer Red

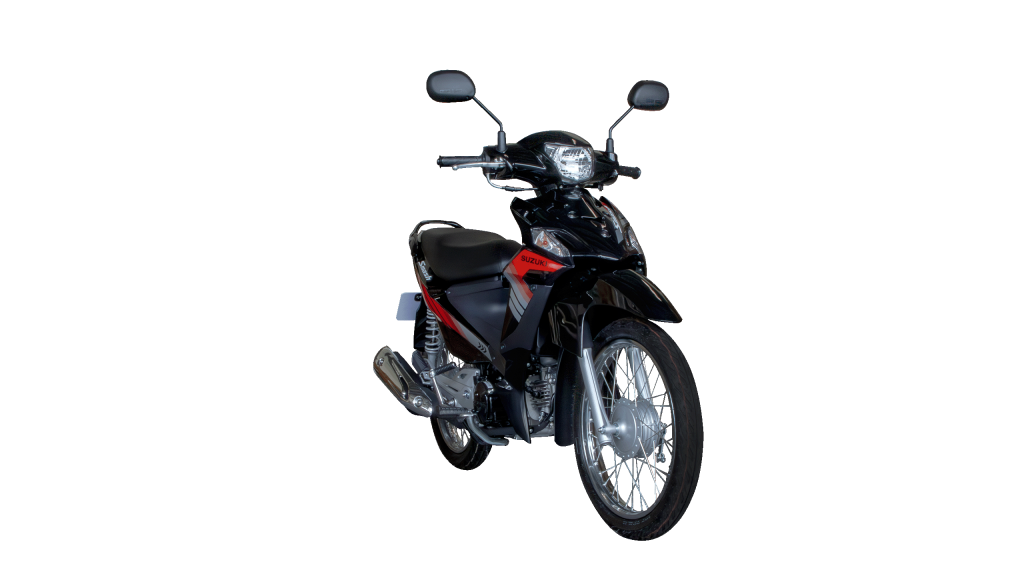

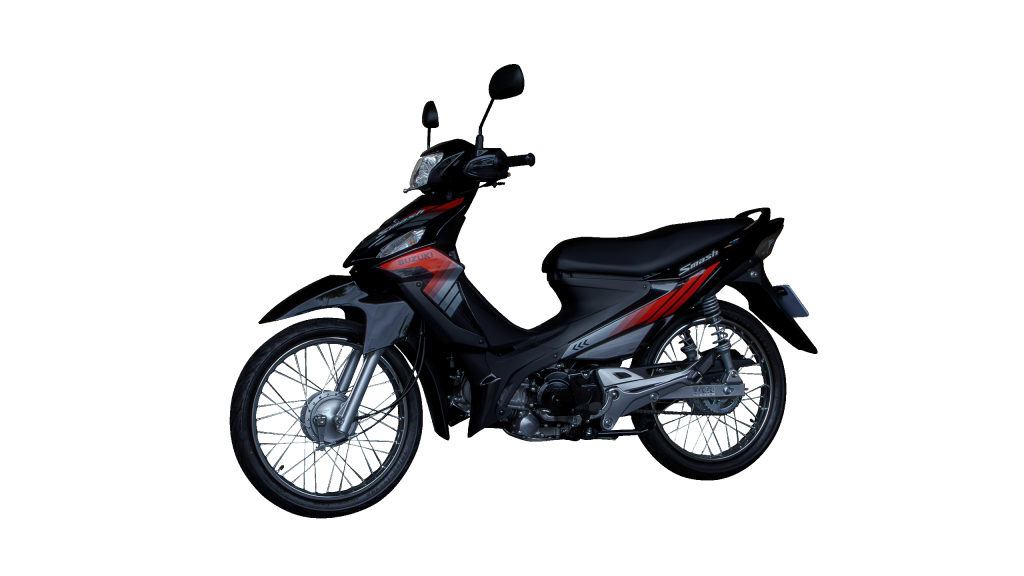

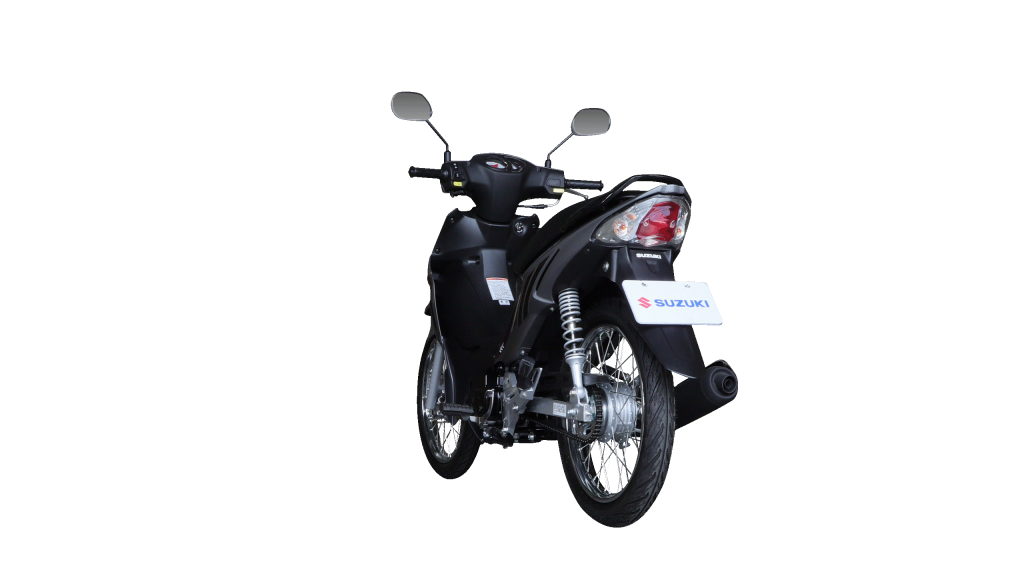

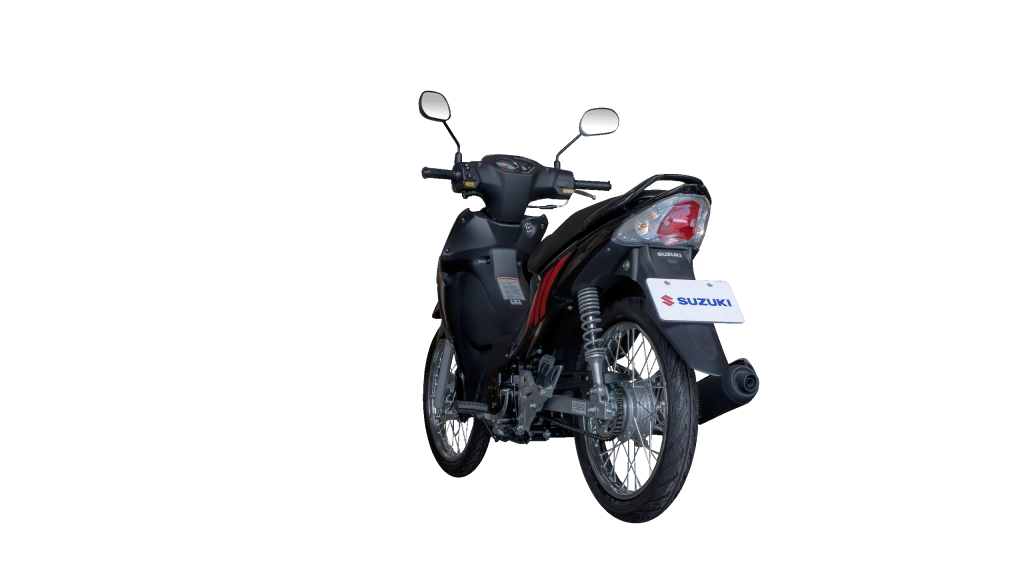

  • New Titan Black

*Color availability may vary per area.

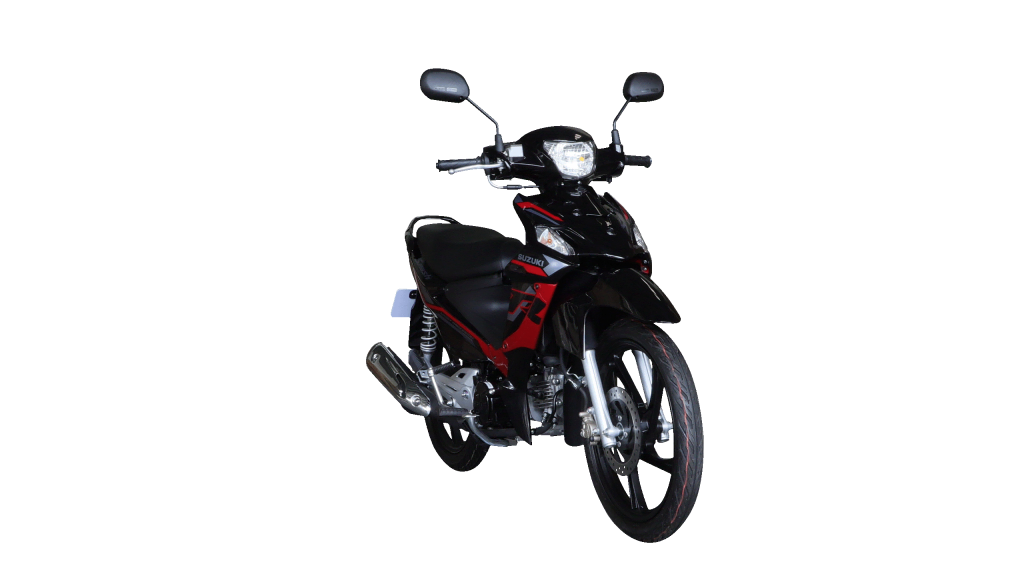

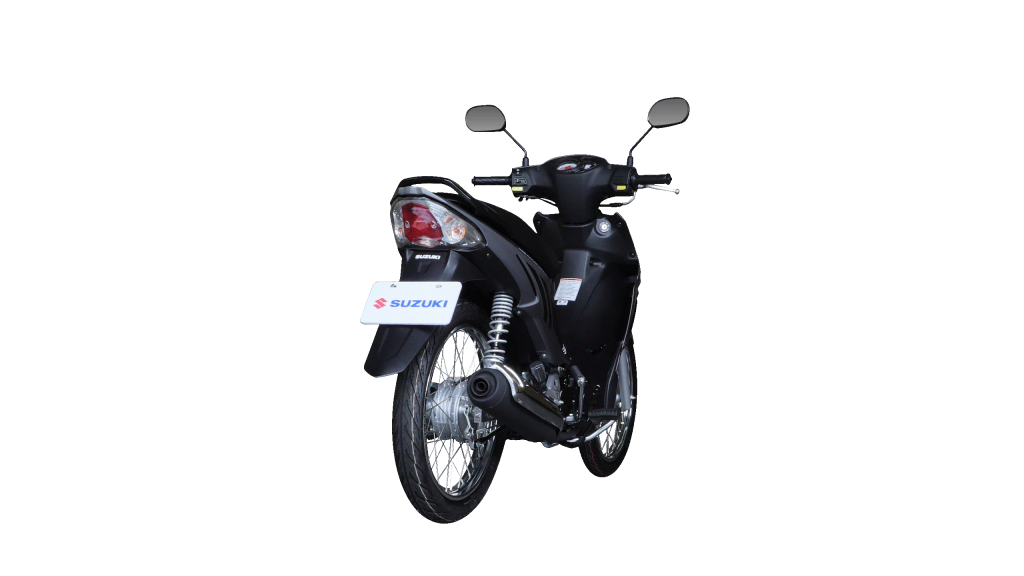

  • New Titan Black

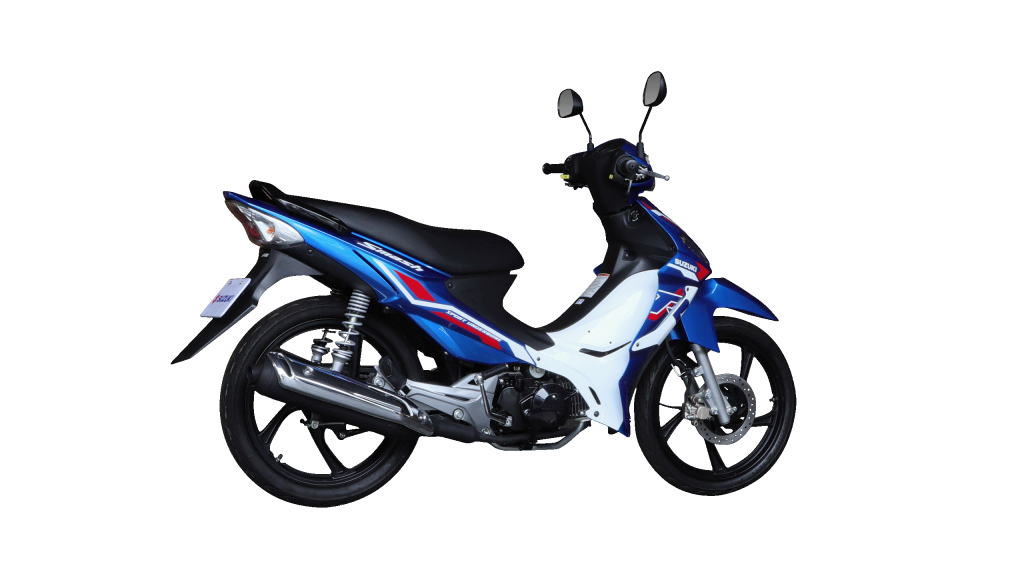

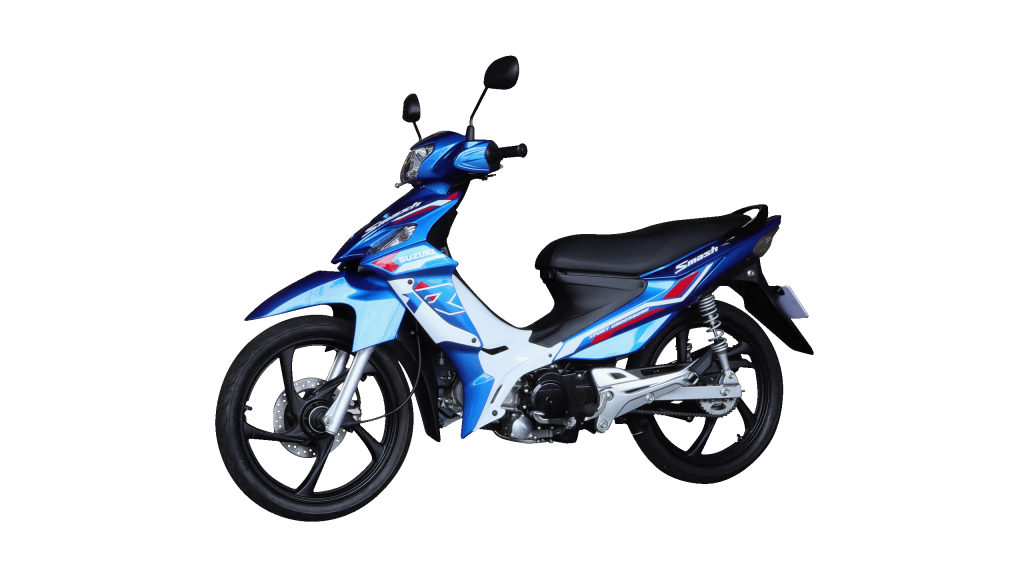

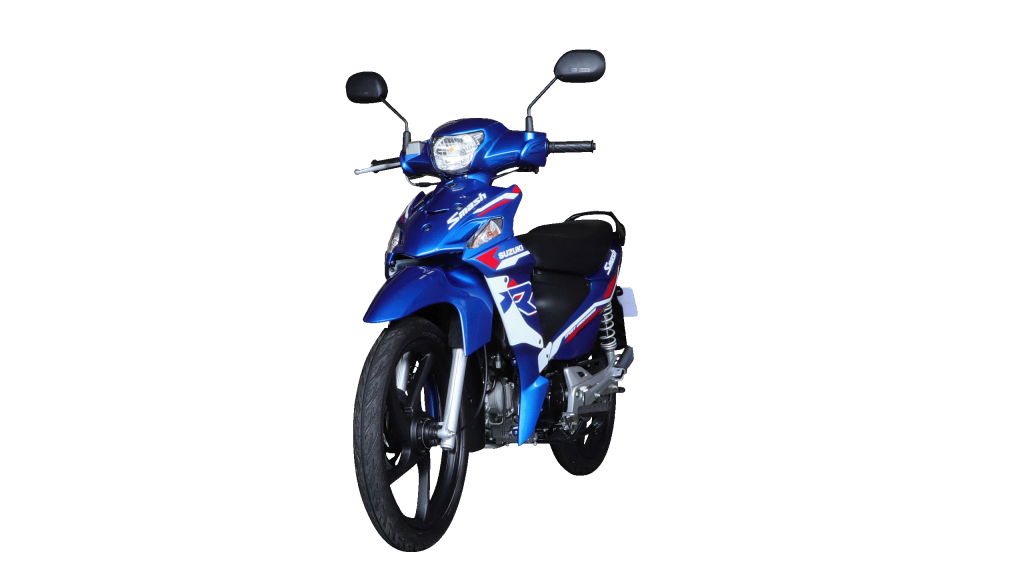

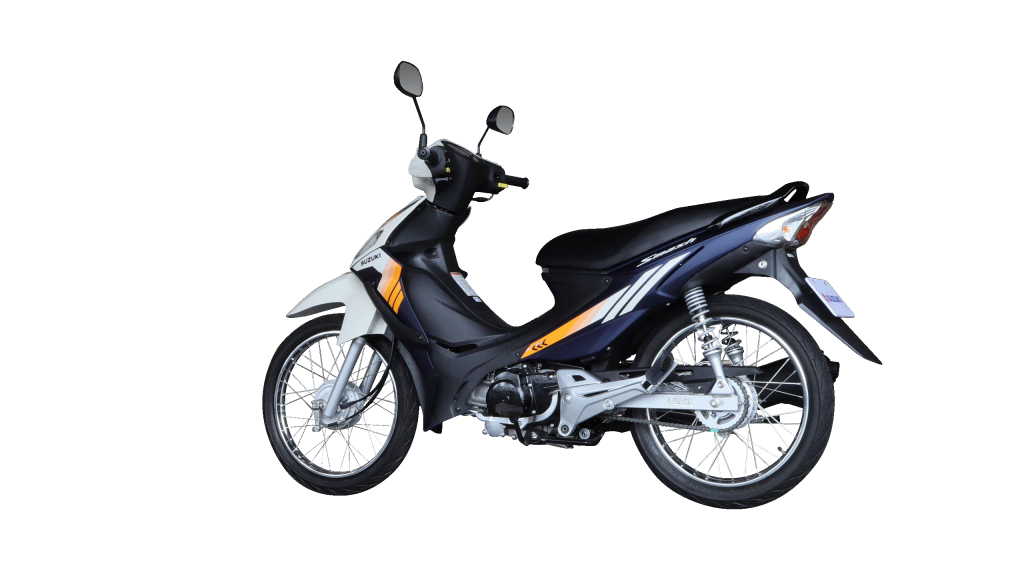

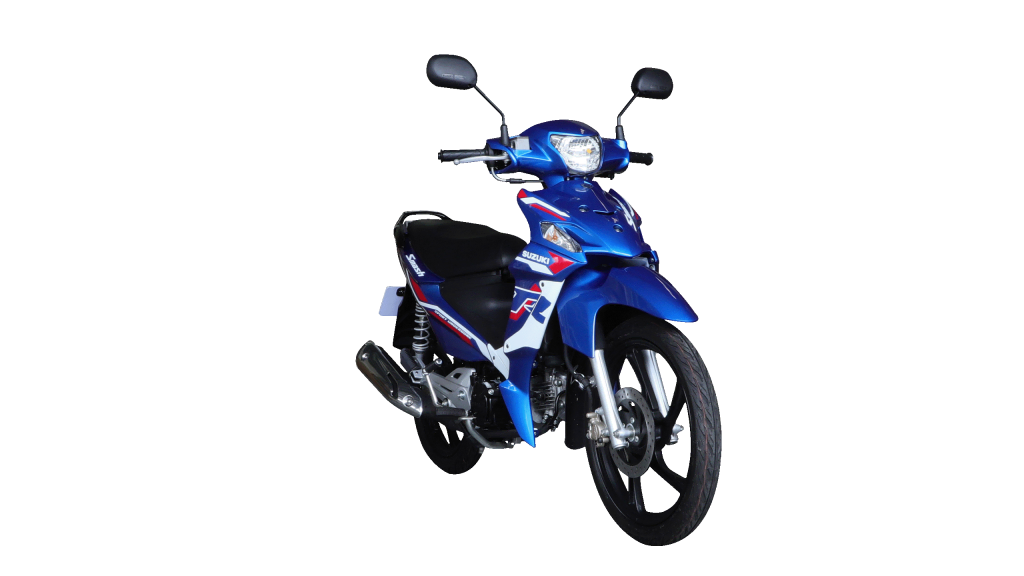

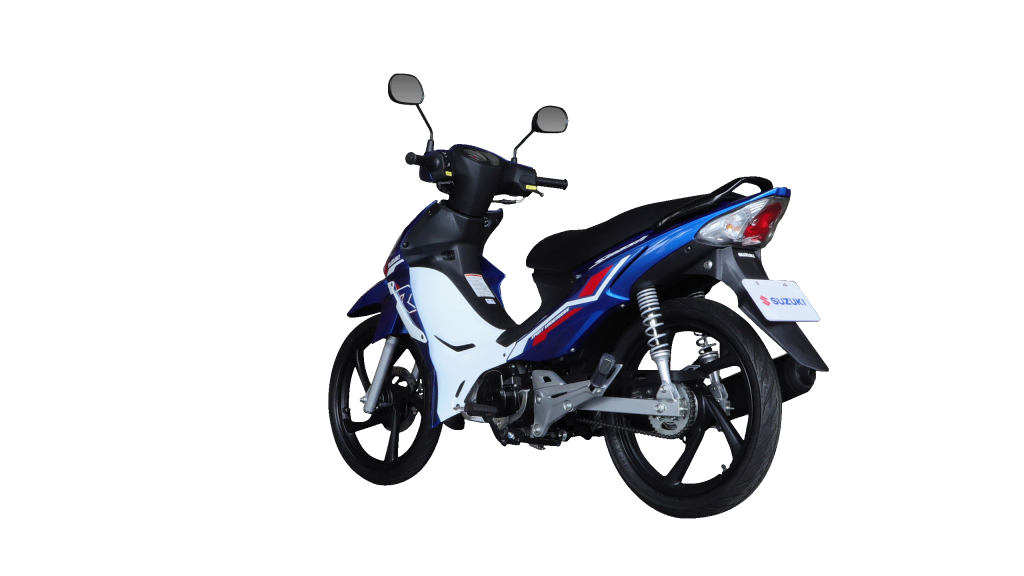

  • Metallic Triton Blue

*Color availability may vary per area.

*Color availability may vary per area.

Related Motorcycles

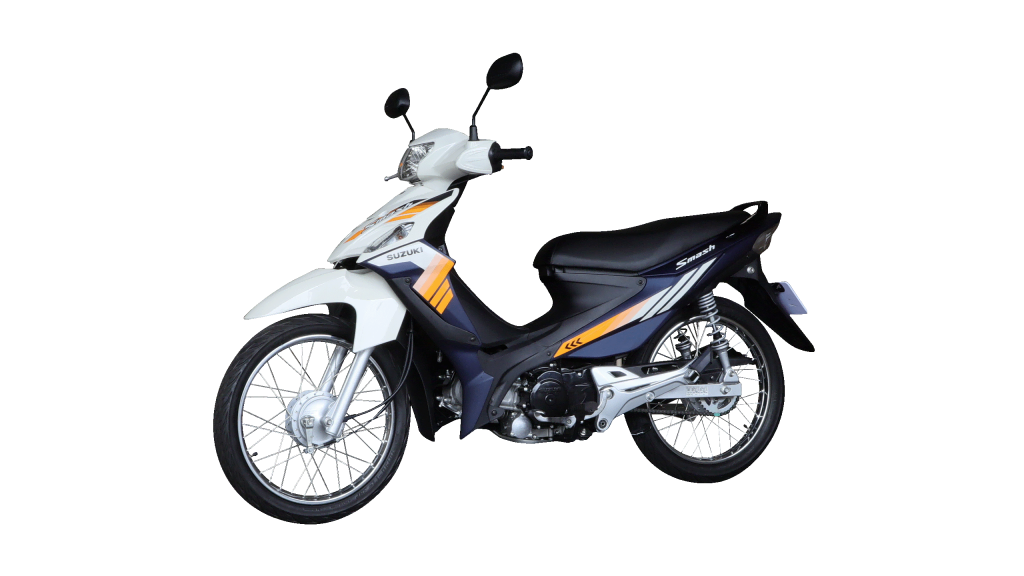

image 7-7
