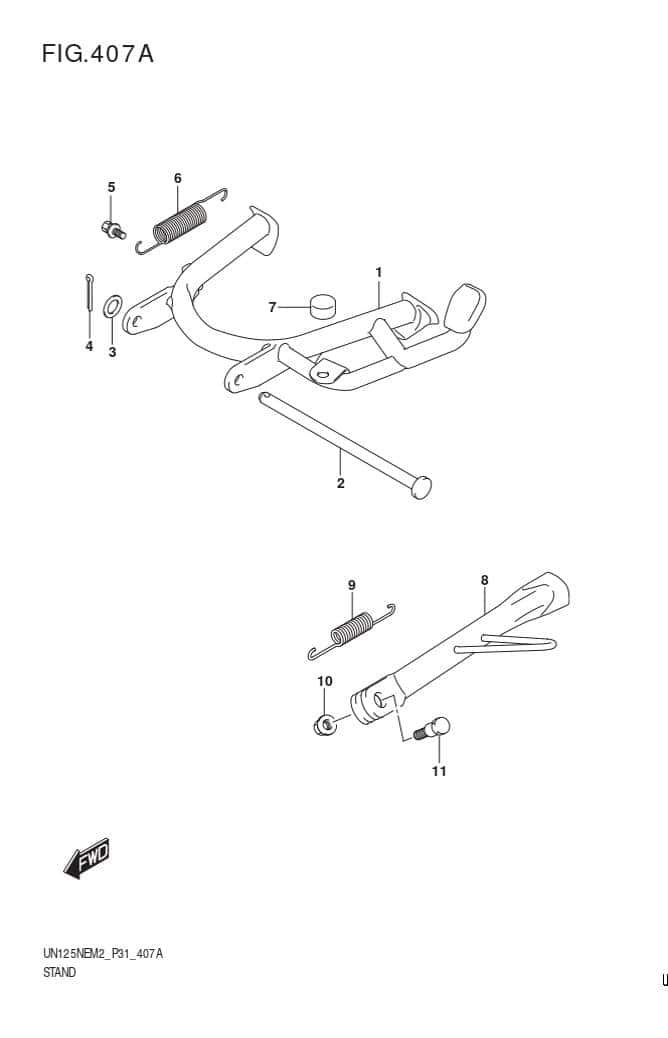

Ref No.	Part Number	Part Name	QTY	Price
1	42100-02L00-000	STAND,CENTER	1	₱ 997
2	42211-39J00-000	SHAFT,CTR STAND	1	₱ 101
3	42275-25J00-000	WASHER,CTR STAND	1	₱ 29
4	04111-3020A-000	PIN	1
5	42251-32G00-000	BOLT,CTR STAND SPRING	1	₱ 295
6	09443-17026-000	SPRING	1	₱ 82
7	42278-44K00-000	CUSHION	1	₱ 29
8	42310-02L00-000	STAND,PROP	1	₱ 357
9	42421-02L00-000	SPRING,PROP STAND INNER	1	₱ 50
10	08319-3110A-000	NUT	1	₱ 42
11	42341-27K00-000	BOLT,PROP STAND (10X33)	1	₱ 87
