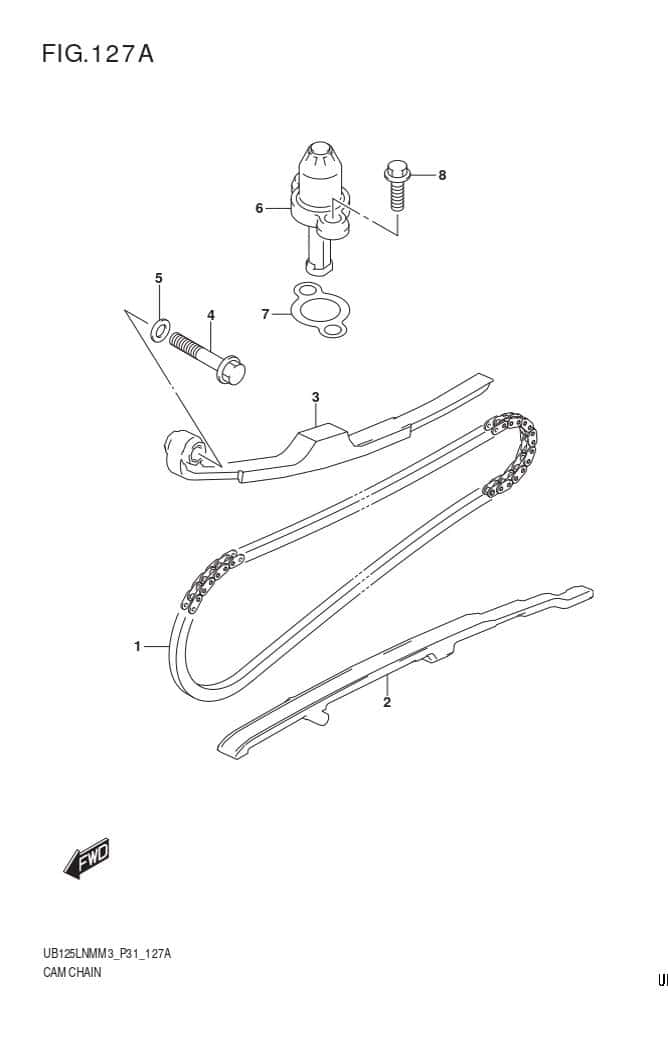

Burgman Street 125 EX - FIG.127A (1-B-9) CAM CHAIN

FIG.102A (1-B-2) CYLINDER HEAD COVER
FIG. 103A (1-B-3) CYLINDER HEAD
FIG.107A (1-B-4) CYLINDER
FIG.108A (1-B-5) CRANKCASE
FIG.112A (1-B-6) CRANKCASE COVER
FIG.120A (1-B-7) CRANKSHAFT
FIG.126A (1-B-8) CAMSHAFT/VALVE
FIG.127A (1-B-9) CAM CHAIN
FIG.140A (1-B-10) THROTTLE BODY
FIG.155A (1-B-11) AIR CLEANER
FIG.163A (1-B-12) MUFFLER
FIG.170A (1-B-13) OIL PUMP
FIG.181A (1-B-15) COOLING FAN

Ref No.	Part Number	Part Name	QTY	Price
1	12760-20G30-000	CHAIN,CAMSHAFT DRIVE	1	₱ 893
2	12771-27L00-000	GUIDE,CAM CHAIN	1	₱ 102
3	12811-27L00-000	TENSIONER,CAM CHAIN	1	₱ 291
4	09103-06247-000	BOLD(6X32)	1	₱ 89
5	09168-06004-000	GASKET(6.2X11X1.2)	1	₱ 48
6	12830-42K00-000	ADJUSTER ASSY, TENSIONER	1	₱ 496
7	12837-39J20-000	GASKET,TENSIONER ADJUSTER (NA)	1	₱ 27
8	01547-0620A-000	BOLT	2	₱ 26
