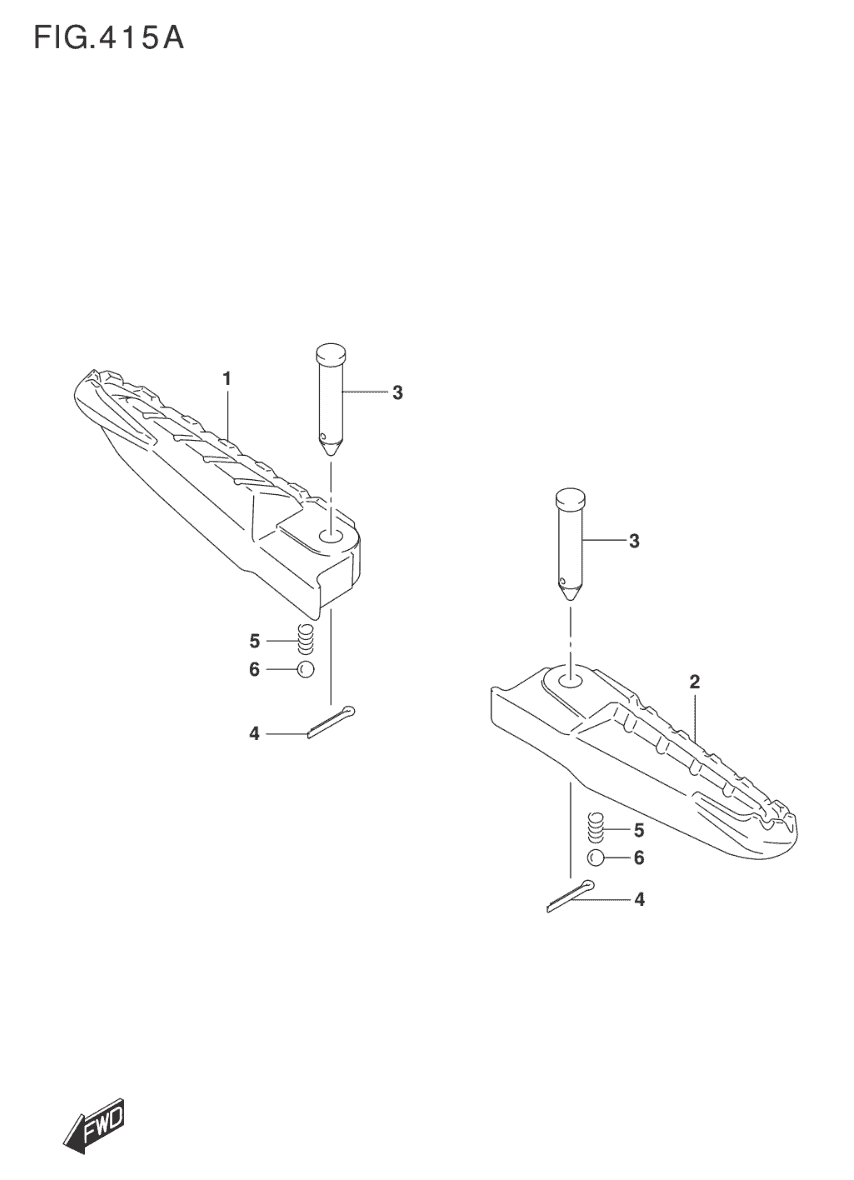

Burgman Street 125 EX - FIG.415A (1-C-16) FOOTREST

Genuine Parts

FIG.102A (1-B-2) CYLINDER HEAD COVER
FIG. 103A (1-B-3) CYLINDER HEAD
FIG.107A (1-B-4) CYLINDER
FIG.108A (1-B-5) CRANKCASE
FIG.112A (1-B-6) CRANKCASE COVER
FIG.120A (1-B-7) CRANKSHAFT
FIG.126A (1-B-8) CAMSHAFT/VALVE
FIG.127A (1-B-9) CAM CHAIN
FIG.140A (1-B-10) THROTTLE BODY
FIG.155A (1-B-11) AIR CLEANER
FIG.163A (1-B-12) MUFFLER
FIG.170A (1-B-13) OIL PUMP
FIG.181A (1-B-15) COOLING FAN

FIG.172A (1-B-14) FUEL PUMP
FIG.304A (1-C-4) GENERATOR
FIG.310A (1-C-5) BATTERY
FIG.312A (1-C-6) ELECTRICAL
FIG.330A (1-C-7) SPEEDOMETER
FIG.333A (1-C-8) HEADLAMP
FIG.335A (1-C-9) FRONT TURNSIGNAL LAMP
FIG.339A (1-C-10) REAR COMBINATION LAMP
FIG.350A (1-C-11) WIRING HARNESS
FIG.352A (1-C-12) LOCK SET

FIG.401A (1-C-13) FRAME
FIG.405A (1-C-14) BATTERY HOLDER
FIG.407A (1-C-15) STAND
FIG.415A (1-C-16) FOOTREST
FIG.420A (1-D-2) FUEL TANK
FIG.427A (1-D-3) EVAP SYSTEM
FIG.435B (1-D-4) FRONT LEG SHIELD
FIG.438C (1-D-5) SIDE LEG SHIELD
FIG.440B (1-D-6) REAR LEG SHIELD
FIG.445B (1-D-7) FRAME COVER
FIG.454A (1-D-8) WINDSCREEN
FIG.456A (1-D-9) HELMET BOX
FIG.460C (1-D-10) FRONT FENDER
FIG.462B (1-D-11) HANDLEBAR
FIG.463B (1-D-12) HANDLE COVER
FIG.467A (1-D-13) HANDLE LEVER
FIG.474A (1-D-14) REAR FENDER
FIG.489B (1-D-15) FRONT BOX
FIG.496C (1-D-16) LABEL
FIG.505A (1-E-2) SEAT
FIG.521A (1-E-3) FRONT FORK DAMPER
FIG.524A (1-E-4) STEERING STEM
FIG.530A (1-E-5) FRONT WHEEL
FIG.535A (1-E-6) FRONT CALIPER
FIG.537A (1-E-7) FRONT MASTER CYLINDER
FIG.545A (1-E-8) REAR SHOCK ABSORBER
FIG.550A (1-E-9) REAR WHEEL

Ref No.	Part Number	Part Name	QTY	Price
1	43611-44K10-000	BAR PILLION FOOTREST R	1	₱ 317
2	43621-44K10-000	BAR PILLION FOOTREST L	1	₱ 317
3	09200-08077-000	PIN	2	₱ 34
4	04111-2515A-000	PIN	1	₱ 39
5	09440-05003-000	SPRING	2	₱ 33
6	06112-07004-000	BALL	2	₱ 24
