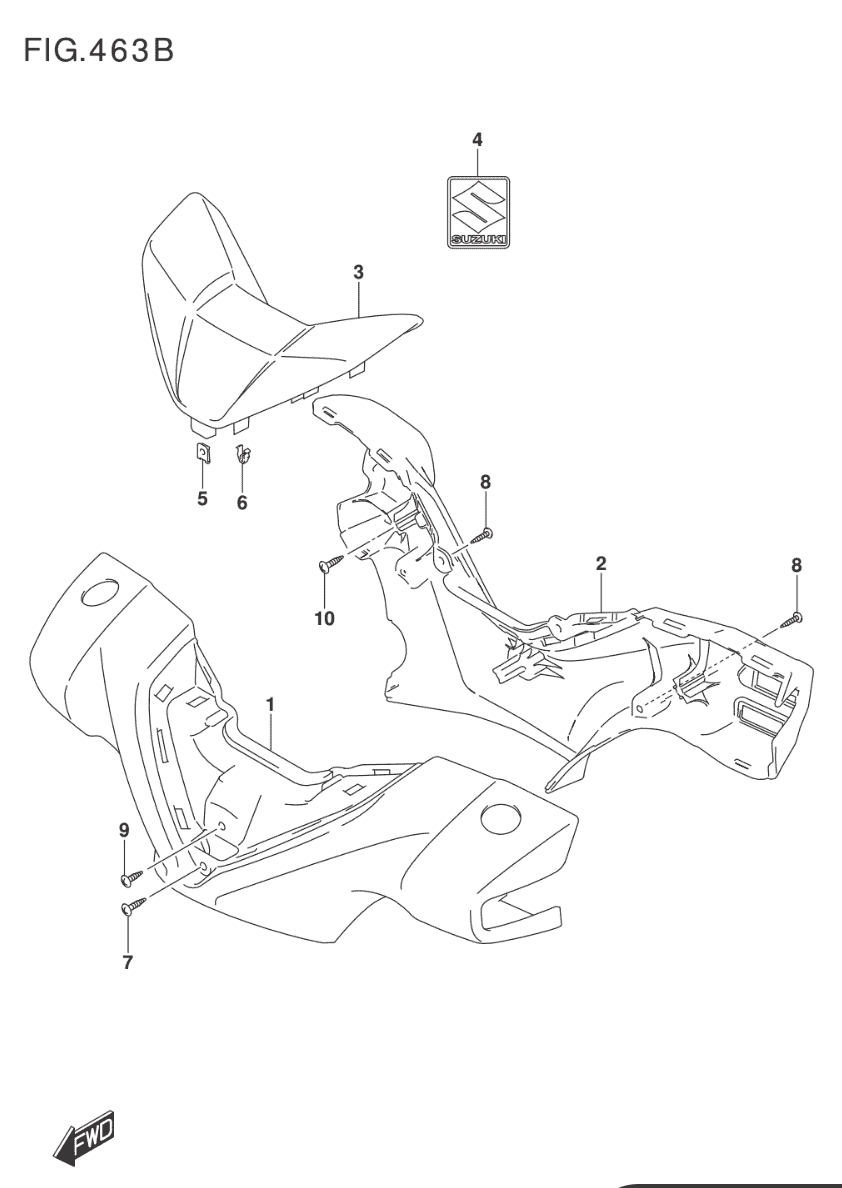

Burgman Street 125 EX - FIG.463B (1-D-12) HANDLE COVER

FIG.401A (1-C-13) FRAME
FIG.405A (1-C-14) BATTERY HOLDER
FIG.407A (1-C-15) STAND
FIG.415A (1-C-16) FOOTREST
FIG.420A (1-D-2) FUEL TANK
FIG.427A (1-D-3) EVAP SYSTEM
FIG.435B (1-D-4) FRONT LEG SHIELD
FIG.438C (1-D-5) SIDE LEG SHIELD
FIG.440B (1-D-6) REAR LEG SHIELD
FIG.445B (1-D-7) FRAME COVER
FIG.454A (1-D-8) WINDSCREEN
FIG.456A (1-D-9) HELMET BOX
FIG.460C (1-D-10) FRONT FENDER
FIG.462B (1-D-11) HANDLEBAR
FIG.463B (1-D-12) HANDLE COVER
FIG.467A (1-D-13) HANDLE LEVER
FIG.474A (1-D-14) REAR FENDER
FIG.489B (1-D-15) FRONT BOX
FIG.496C (1-D-16) LABEL
FIG.505A (1-E-2) SEAT
FIG.521A (1-E-3) FRONT FORK DAMPER
FIG.524A (1-E-4) STEERING STEM
FIG.530A (1-E-5) FRONT WHEEL
FIG.535A (1-E-6) FRONT CALIPER
FIG.537A (1-E-7) FRONT MASTER CYLINDER
FIG.545A (1-E-8) REAR SHOCK ABSORBER
FIG.550A (1-E-9) REAR WHEEL

Ref No.	Part Number	Part Name	QTY	Price
1	56311-44K30-U1G	COVER HANDLE FRONT (MAROON)	1	₱ 338
2	56321-44K30-U1G	COVER HANDLE REAR (MAROON)	1	₱ 435
3	56312-44K01-PGZ	COVER,HANDLE UPPER(GRAY)	1	₱ 725
4	68281-44K00-000	EMBLEMS	1	₱ 182
5	09148-05060-000	NUT(M5)	1	₱ 22
6	09409-08L09-000	CLIP	2	₱ 29
7	03541-0516B-000	SCREW	1	₱ 11
8	03541-0416B-000	SCREW	4	₱ 38
9	02142-0512A-000	SCREW	1	₱ 30
10	03541-0516A-000	SCREW	3	₱ 48
