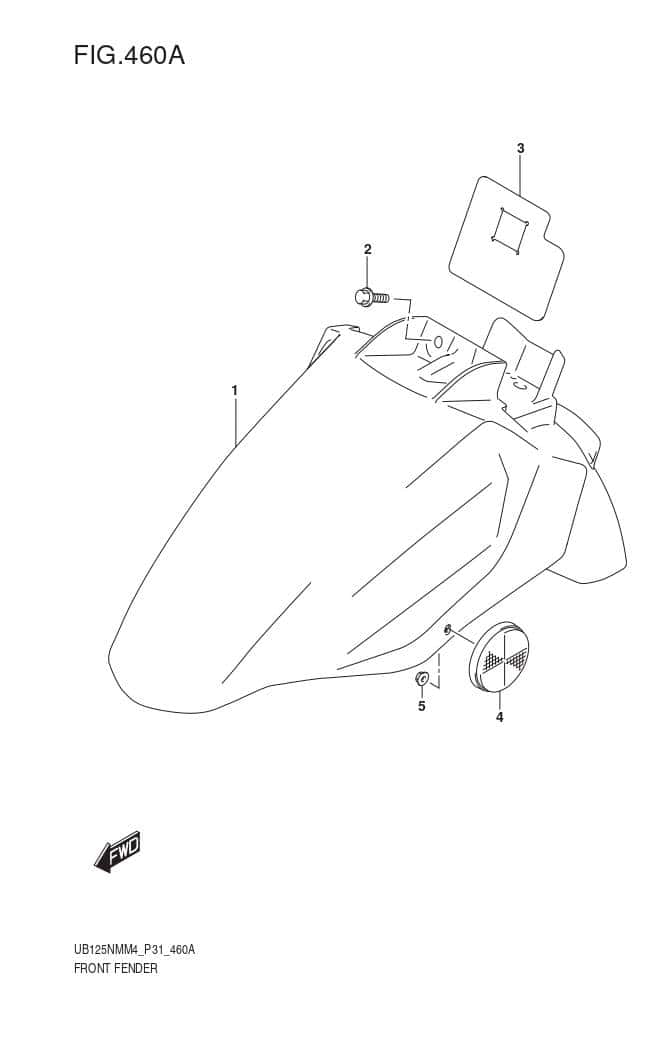

Burgman Street - FIG.460A (1-E-2) FRONT FENDER - Suzuki Motorcycles Philippines

FIG.401A (1-C-13) FRAME
FIG.405A (1-C-14) BATTERY HOLDER
FIG.407A (1-C-15) STAND
FIG.415A (1-C-16) FOOTREST
FIG.420A (1-D-2) FUEL TANK
FIG.427A (1-D-3) EVAP SYSTEM
FIG.435B (1-D-4) FRONT LEG SHIELD
FIG.438C (1-D-5) SIDE LEG SHIELD
FIG.440B (1-D-6) REAR LEG SHIELD
FIG.445B (1-D-7) FRAME COVER
FIG.454A (1-D-8) WINDSCREEN
FIG.456A (1-D-9) HELMET BOX
FIG.460C (1-D-10) FRONT FENDER
FIG.462B (1-D-11) HANDLEBAR
FIG.463B (1-D-12) HANDLE COVER
FIG.467A (1-D-13) HANDLE LEVER
FIG.474A (1-D-14) REAR FENDER
FIG.489B (1-D-15) FRONT BOX
FIG.496C (1-D-16) LABEL
FIG.505A (1-E-2) SEAT
FIG.521A (1-E-3) FRONT FORK DAMPER
FIG.524A (1-E-4) STEERING STEM
FIG.530A (1-E-5) FRONT WHEEL
FIG.535A (1-E-6) FRONT CALIPER
FIG.537A (1-E-7) FRONT MASTER CYLINDER
FIG.545A (1-E-8) REAR SHOCK ABSORBER
FIG.550A (1-E-9) REAR WHEEL

Ref No.	Part Number	Part Name	QTY	Price
1.1	53111-44K10-QMV	FENDER,FRONT (BRONZE)	1	₱ 2,947
1.2	53111-44K10-YKV	FENDER,FRONT (BLACK)	1
1.3	53111-44K40-YPA	FENDER,FRONT(WHITE)	1
1.4	53111-44K40-YWC	FENDER,FRONT (GRAY)	1	₱ 2,573
2	09111-06109-000	BOLT (6X14.8)	3	₱ 32
3	53331-44K00-000	MUDGUARD,FRONT FENDER	1	₱ 78
4	35950-20L00-000	REFLEX REFLECTOR ASSY, SIDE	2	₱ 80
5	08316-10068-000	NUT(6X12)	2
