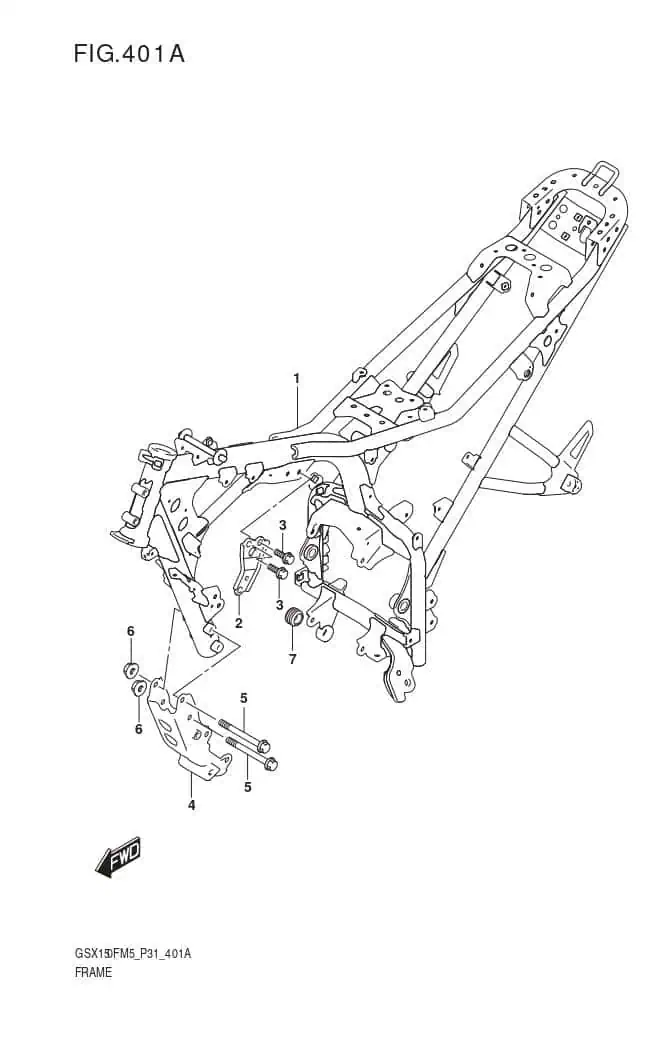

Gixxer SF 155 - FIG.401A (1-D-4) FRAME - Suzuki Motorcycles Philippines

Genuine Parts

FIG.102A (1-B-2) CYLINDER HEAD COVER
FIG.103A (1-B-3) CYLINDER HEAD
FIG.107A (1-B-4) CYLINDER
FIG.108A (1-B-5) CRANKCASE
FIG.112A (1-B-6) CRANKCASE COVER
FIG.120A (1-B-7) CRANKSHAFT
FIG.122A (1-B-9) STARTER CLUTCH
FIG.124A (1-B-10) CRANK BALANCER
FIG.126A (1-B-11) CAMSHAFT/VALVE
FIG.140A (1-B-12) THROTTLE BODY
FIG.155A (1-B-13) AIR CLEANER
FIG.163A (1-B-14) MUFFLER
FIG.170A (1-B-15) OIL PUMP

FIG.172A (1-B-16) FUEL PUMP
FIG.301A (1-C-7) STARTING MOTOR (SEE NOTE 1)
FIG.303A (1-C-9) MAGNETO
FIG.312A (1-C-11) ELECTRICAL
FIG.330A (1-C-12) SPEEDOMETER
FIG.333A (1-C-13) HEADLAMP
FIG.334A (1-C-14) TURNSIGNAL LAMP
FIG.339A (1-C-15) REAR COMBINATION LAMP
FIG.350A (1-C-16) WIRING HARNESS
FIG.352A (1-D-2) LOCK SET
FIG.355A (1-D-3) HANDLE SWITCH
FIG.310A (1-C-10) BATTERY

FIG.401A (1-D-4) FRAME
FIG.406A (1-D-5) HOLDER
FIG.410A (1-D-7) PILLION RIDER HANDLE (GSX150FRF)
FIG.407A (1-D-6) STAND
FIG.410B (1-D-8) PILLION RIDER HANDLE (GSX150FRFX)
FIG.415A (1-D-9) FOOTREST
FIG.420A (1-D-10) FUEL TANK
FIG.423A (1-D-11) FUEL TANK COVER (GSX150FRF)
FIG.423B (1-D-12) FUEL TANK COVER (GSX150FRFX)
FIG.445A (1-D-13) FRAME COVER (GSX150FRF)
FIG.445B (1-D-14) FRAME COVER (GSX150FRFX)
FIG.446A (1-D-15) FRAME LOWER COVER (GSX150FRF)
FIG.446B (1-D-16) FRAME LOWER COVER (GSX150FRFX)
FIG.460A (1-E-2) FRONT FENDER
FIG.462A (1-E-3) HANDLEBAR
FIG.474A (1-E-5) REAR FENDER
FIG.481A (1-E-6) COWLING BODY (GSX150FRF)
FIG.481B (1-E-7) COWLING BODY (GSX150FRFX)
FIG.483A (1-E-8) UNDER COWLING (GSX150FRF)
FIG.485B (1-E-12) SIDE COWLING (GSX150FRFX)
FIG.485A (1-E-10) SIDE COWLING (GSX150FRF)
FIG.496A (1-E-13) LABEL
FIG.505A (1-E-14) SEAT
FIG.521A (1-E-15) FRONT FORK DAMPER
FIG.524A (1-F-2) STEERING STEM
FIG.467A (1-E-4) HANDLE LEVER
FIG.558A (1-F-11) REAR MASTER CYLINDER
FIG.555A (1-F-10) REAR CALIPER
FIG.550A (1-F-9) REAR WHEEL
FIG.542A (1-F-8) CHAIN CASE
FIG.541A (1-F-7) REAR SWINGINGARM
FIG.537A (1-F-6) FRONT MASTER CYLINDER
FIG.536A (1-F-5) FRONT BRAKE HOSE
FIG.535A (1-F-4) FRONT CALIPER
FIG.530A (1-F-3) FRONT WHEEL

Ref No.	Part Number	Part Name	QTY	Price
1	41100-41K12-000	FRAME	1	₱ 18,454
2	41991-34J00-000	PLATE,ENG MTG UPPER	1	₱ 206
3	01550-0816A-000	BOLT (8X16)	2	₱ 53
4	41990-42K00-000	BRACKET,ENG MTG LOWER	1	₱ 725
5	41933-34J00-000	BOLT,ENG MTG LOWER	2	₱ 138
6	08319-3110B-000	NUT	2	₱ 100
7	43585-27K00-000	CAP,FRAME BRIDGE LOWER	1	₱ 70
