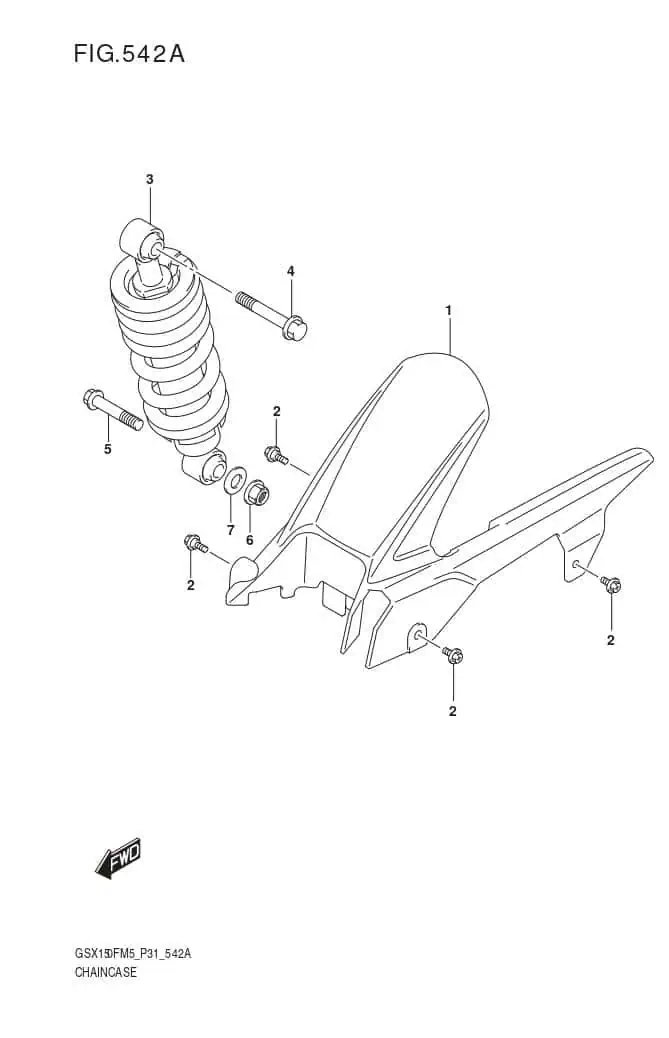

Ref No.	Part Number	Part Name	QTY	Price
1	61311-34J10-000	CASE,CHAIN	1	₱ 538
2	09111-06107-000	BOLT (6X12)	4	₱ 79
3	62100-42K10-YKS	ABSORBER ASSY,REAR SHOCK (RED)	1	₱ 5,934
4	62658-47H00-000	BOLT,RR CUSHION LEVER	1	₱ 114
5	62668-30B00-000	BOLT,RR CUSHION LEVER FR (12X60)	1	₱ 114
6	09159-12085-000	NUT	1	₱ 62
7	09160-12131-000	WASHER (12.3X24X2.3)	1	₱ 26
