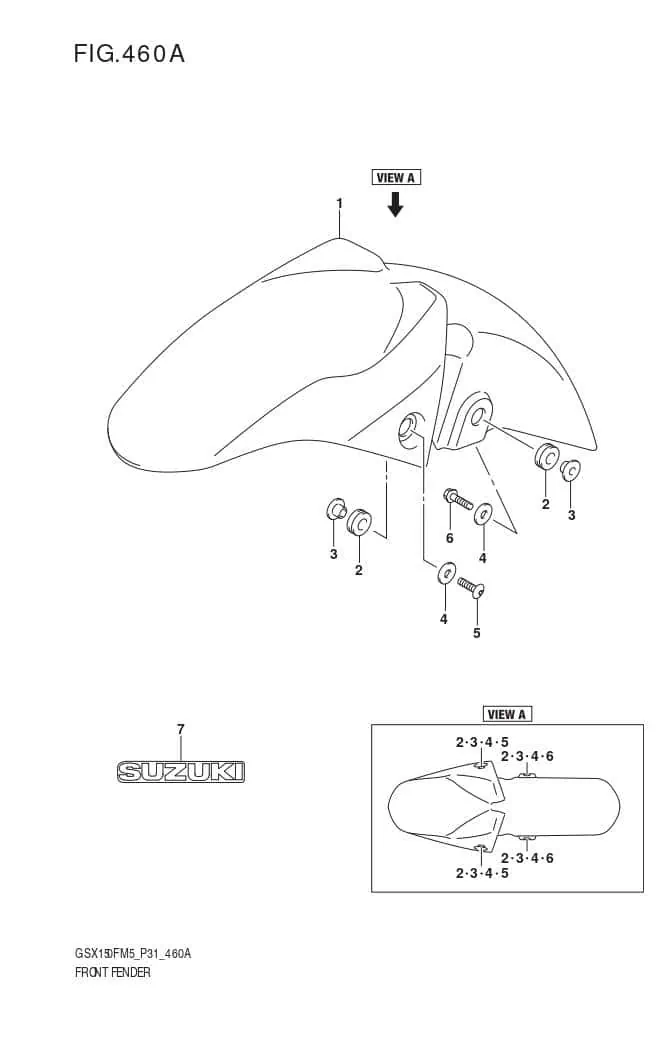

FIG.460A (1-E-2) FRONT FENDER
FIG.462A (1-E-3) HANDLEBAR
FIG.474A (1-E-5) REAR FENDER
FIG.481A (1-E-6) COWLING BODY (GSX150FRF)
FIG.481B (1-E-7) COWLING BODY (GSX150FRFX)
FIG.483A (1-E-8) UNDER COWLING (GSX150FRF)
FIG.485B (1-E-12) SIDE COWLING (GSX150FRFX)
FIG.485A (1-E-10) SIDE COWLING (GSX150FRF)
FIG.496A (1-E-13) LABEL
FIG.505A (1-E-14) SEAT
FIG.521A (1-E-15) FRONT FORK DAMPER
FIG.524A (1-F-2) STEERING STEM
FIG.467A (1-E-4) HANDLE LEVER
FIG.558A (1-F-11) REAR MASTER CYLINDER
FIG.555A (1-F-10) REAR CALIPER
FIG.550A (1-F-9) REAR WHEEL
FIG.542A (1-F-8) CHAIN CASE
FIG.541A (1-F-7) REAR SWINGINGARM
FIG.537A (1-F-6) FRONT MASTER CYLINDER
FIG.536A (1-F-5) FRONT BRAKE HOSE
FIG.535A (1-F-4) FRONT CALIPER
FIG.530A (1-F-3) FRONT WHEEL

Ref No.	Part Number	Part Name	QTY	Price
1	53111-34J00-YVB	FENDER,FRONT (BLACK)	1	₱ 1,661
2	47161-23J00-000	CUSHION (10X22X7)	4	₱ 29
3	53275-34J00-000	SPACER,FR FENDER	4	₱ 26
4	09160-06060-000	WASHER (6.5X20X1.2)	4	₱ 11
5	53113-30H00-000	SCREW,FR FENDER FR	2	₱ 70
6	01550-0620A-000	BOLT (6X20)	2	₱ 48
7	68171-34J10-YMD	EMBLEM,SUZUKI (SILVER)	1	₱ 47
