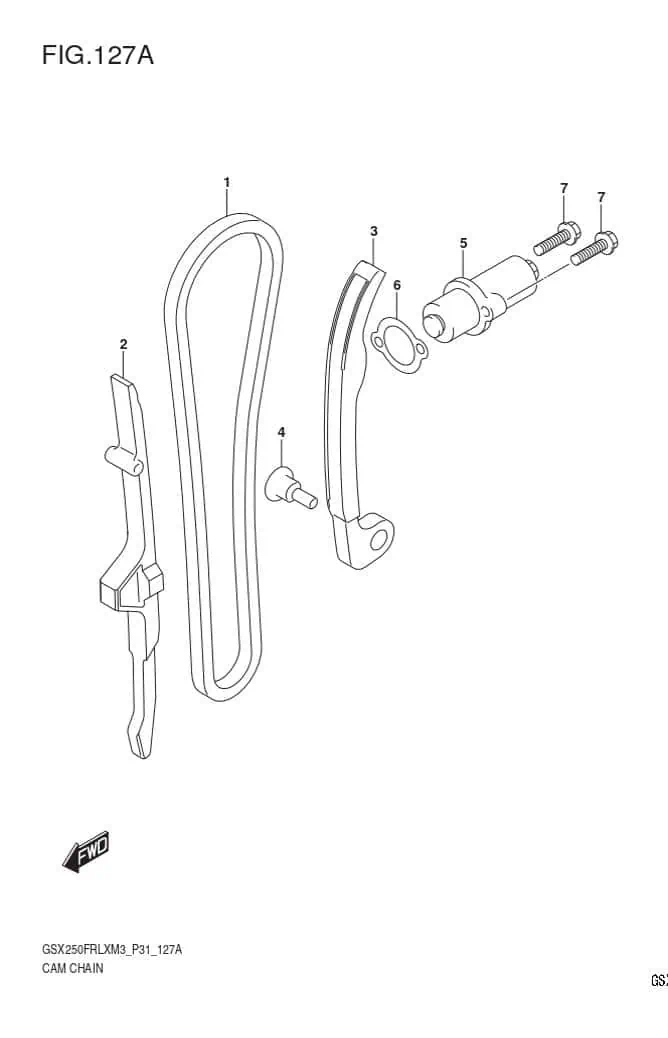

Gixxer SF250 - FIG.127A (1-B-14) CAM CHAIN - Suzuki Motorcycles Philippines

FIG.102A (1-B-2) CYLINDER HEAD COVER
FIG.103A (1-B-3) CYLINDER HEAD
FIG.107A (1-B-4) CYLINDER
FIG.108A (1-B-5) CRANKCASE
FIG.112A (1-B-6) CRANKCASE COVER
FIG.120A (1-B-7) CRANKSHAFT
FIG.122A (1-B-9) STARTER CLUTCH
FIG.124A (1-B-10) CRANK BALANCER
FIG.126A (1-B-11) CAMSHAFT/VALVE
FIG.127A (1-B-14) CAM CHAIN
FIG.140A (1-C-2) THROTTLE BODY
FIG.155A (1-C-3) AIR CLEANER
FIG.163A (1-C-4) MUFFLER
FIG.170A (1-C-5) OIL PUMP
FIG.178A (1-C-7) OIL COOLER

Ref No.	Part Number	Part Name	QTY	Price
1	12760-41K00-000	CHAIN, CAMSHAFT DRIVE	1	₱ 903
2	12771-41K00-000	GUIDE, CAM CHAIN	1	₱ 91
3	12811-41K00-000	TENSIONER, CAM CHAIN	1	₱ 200
4	12812-35C00-000	BOLT, CAM CHAIN TENSIONER	1	₱ 57
5	12830-41K00-000	ADJUSTER ASSY, TENSIONER	1	₱ 1,155
6	12837-24A30-000	GASKET, TENSIONER ADJUSTER	1	₱ 43
7	01547-0625B-000	BOLT	2	₱ 71
