Gixxer SF250 - FIG.460A (1-E-7) FRONT FENDER - Suzuki Motorcycles Philippines

FIG.401A (1-D-10) FRAME
FIG.406A (1-D-11) HOLDER
FIG.407A (1-D-12) STAND
FIG.410A (1-D-13) PILLION RIDER HANDLE
FIG.415A (1-D-14) FOOTREST
FIG.420A (1-E-2) FUEL TANK
FIG.423A (1-E-3) FUEL TANK COVER
FIG.427A (1-E-4) EVAP SYSTEM
FIG.445A (1-E-5) FRAME COVER
FIG.446A (1-E-6) FRAME LOWER COVER

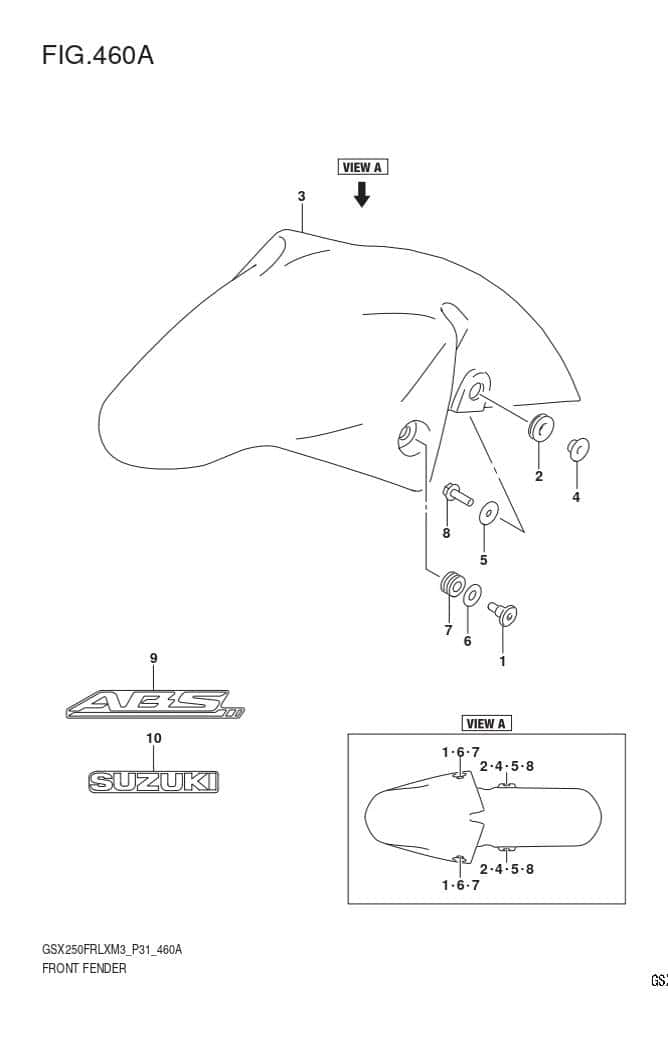

FIG.460A (1-E-7) FRONT FENDER
FIG.462A (1-E-8) HANDLEBAR
FIG.467A (1-E-9) HANDLE LEVER
FIG.474A (1-E-10) REAR FENDER
FIG.481A (1-E-11) COWLING BODY
FIG.483A (1-E-12) UNDER COWLING
FIG.485A (1-E-13) SIDE COWLING
FIG.496A (1-E-14) LABEL
FIG.505A (1-F-2) SEAT
FIG.521A (1-F-4) FRONT FORK DAMPER
FIG.524A (1-F-5) STEERING STEM
FIG.530A (1-F-6) FRONT WHEEL
FIG.533A (1-F-7) HYDRAULIC UNIT
FIG.535A (1-F-8) FRONT CALIPER
FIG.536A (1-F-9) FRONT BRAKE HOSE
FIG.537A (1-F-10) FRONT MASTER CYLINDER
FIG.541A (1-F-11) REAR SWINGINGARM
FIG.545A (1-F-12) REAR SHOCK ABSORBER
FIG.550A (1-F-13) REAR WHEEL
FIG.555A (1-F-14) REAR CALIPER
FIG.558A (1-G-2) REAR MASTER CYLINDER

Ref No.	Part Number	Part Name	QTY	Price
1	47123-41K00-000	SCREW (6X20)	2	₱ 39
2	47161-23J00-000	CUSHION (10X22X7)	2	₱ 29
3	53111-41K00-YVB	FENDER, FRONT (BLACK)	1	₱ 2,338
4	53275-34J00-000	SPACER, FR FENDER	2	₱ 21
5	09160-06077-000	WASHER (6.5X20X1.2)	2	₱ 11
6	09160-09015-000	WASHER (9X19X1.0)	2	₱ 230
7	09320-09016-000	CUSHION (9X18X9.5)	2	₱ 16
8	01550-0620A-000	BOLT	2	₱ 48
9	68155-34J00-J7A	EMBLEM, ABS (GRAY/BLACK)	1	₱ 86
10	68171-34J10-YWW	EMBLEM, SUZUKI (WHITE)	1	₱ 47
