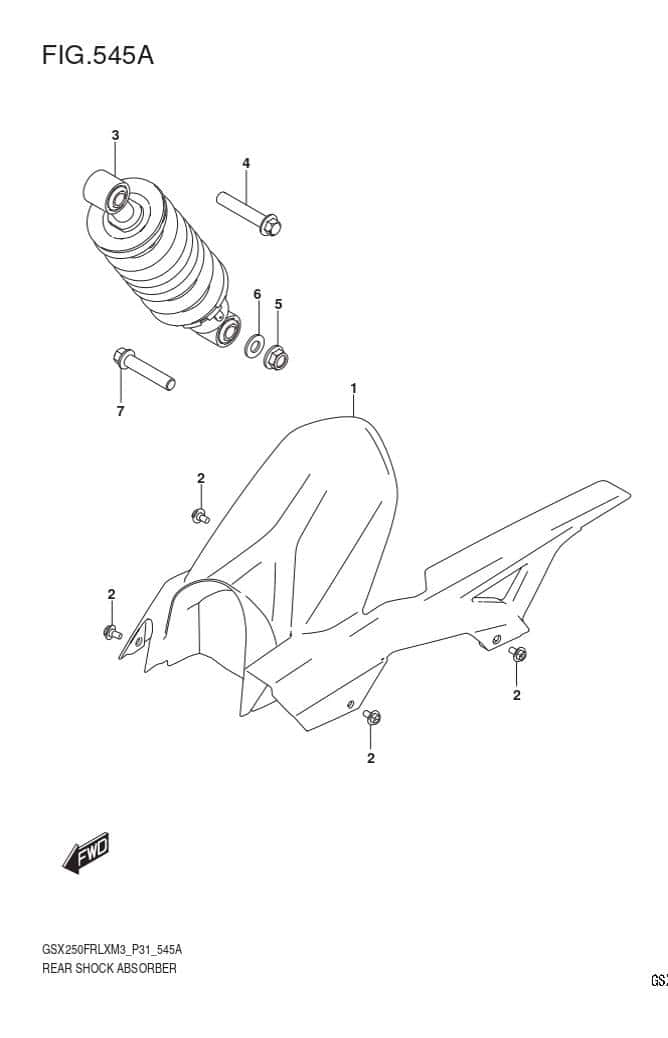

Gixxer SF250 - FIG.545A (1-F-12) REAR SHOCK ABSORBER

FIG.401A (1-D-10) FRAME
FIG.406A (1-D-11) HOLDER
FIG.407A (1-D-12) STAND
FIG.410A (1-D-13) PILLION RIDER HANDLE
FIG.415A (1-D-14) FOOTREST
FIG.420A (1-E-2) FUEL TANK
FIG.423A (1-E-3) FUEL TANK COVER
FIG.427A (1-E-4) EVAP SYSTEM
FIG.445A (1-E-5) FRAME COVER
FIG.446A (1-E-6) FRAME LOWER COVER
FIG.460A (1-E-7) FRONT FENDER
FIG.462A (1-E-8) HANDLEBAR
FIG.467A (1-E-9) HANDLE LEVER
FIG.474A (1-E-10) REAR FENDER
FIG.481A (1-E-11) COWLING BODY
FIG.483A (1-E-12) UNDER COWLING
FIG.485A (1-E-13) SIDE COWLING
FIG.496A (1-E-14) LABEL
FIG.505A (1-F-2) SEAT
FIG.521A (1-F-4) FRONT FORK DAMPER
FIG.524A (1-F-5) STEERING STEM
FIG.530A (1-F-6) FRONT WHEEL
FIG.533A (1-F-7) HYDRAULIC UNIT
FIG.535A (1-F-8) FRONT CALIPER
FIG.536A (1-F-9) FRONT BRAKE HOSE
FIG.537A (1-F-10) FRONT MASTER CYLINDER
FIG.541A (1-F-11) REAR SWINGINGARM
FIG.545A (1-F-12) REAR SHOCK ABSORBER
FIG.550A (1-F-13) REAR WHEEL
FIG.555A (1-F-14) REAR CALIPER
FIG.558A (1-G-2) REAR MASTER CYLINDER

Ref No.	Part Number	Part Name	QTY	Price
1	61311-41K00-000	CASE, CHAIN	1	₱ 382
2	09111-06107-000	BOLT (6X12)	4	₱ 79
3	62100-41K00-28W	ABSORBER ASSY, RR SHOCK (WHITE)	1	₱ 5,049
4	62658-47H00-000	BOLT, RR CUSHION LEVER	1	₱ 104
5	09159-12082-000	NUT	1	₱ 85
6	09160-12131-000	WASHER (12.3X24X2.3)	1	₱ 26
7	62668-30B00-000	BOLT, RR CUSHION LEVER FR (12X60)	1	₱ 109
