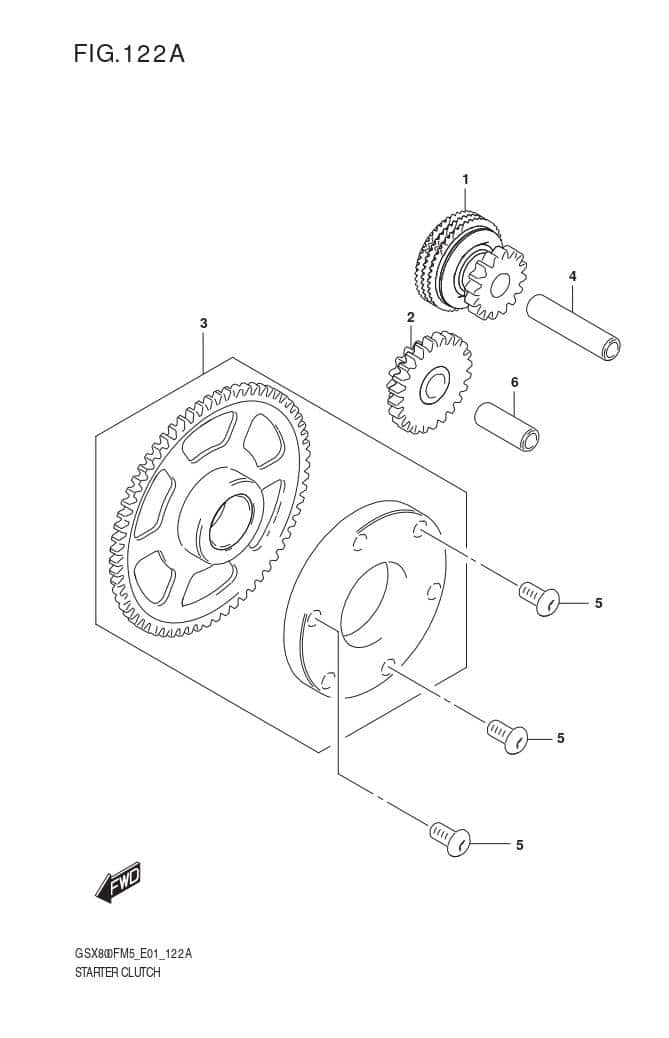

GSX-8R - FIG.122A (1-B-12) STARTER CLUTCH - Suzuki Motorcycles Philippines

FIG.101A (1-B-2) GASKET SET
FIG.102A (1-B-3) CYLINDER HEAD COVER
FIG.103A (1-B-4) CYLINDER HEAD
FIG.107A (1-B-5) CYLINDER
FIG.108A (1-B-6) CRANKCASE
FIG.109A (1-B-7) CRANKCASE (2)
FIG.113A (1-B-8) MAGNETO COVER
FIG.114A (1-B-9) CLUTCH COVER
FIG.116A (1-B-10) OIL PAN/OIL PUMP
FIG.120A (1-B-11) CRANKSHAFT
FIG.122A (1-B-12) STARTER CLUTCH
FIG.124A (1-B-13) CRANK BALANCER
FIG.126A (1-B-15) CAMSHAFT/VALVE
FIG.140A (1-C-2) THROTTLE BODY
FIG.155A (1-C-3) AIR CLEANER
FIG.163A (1-C-4) MUFFLER
FIG.178A (1-C-6) OIL COOLER
FIG.180A (1-C-7) WATER PUMP
FIG.185A (1-C-8) RADIATOR
FIG.127A (1-B-16) CAM CHAIN
FIG.187A (1-C-9) RADIATOR HOSE
FIG.189A (1-C-10) 2ND AIR

Ref No.	Part Number	Part Name	QTY	Price
1	12600-25L00	LIMITER ASSY,START ID GR NO.1	1
2	12610-25L00	GEAR,STARTER IDLE NO.2 (NT:14)	1
3	12600-25840	CLUTCH SET,STARTER	1
4	12615-24F00	PIN,STARTER IDLE GEAR NO.1	1	₱ 262
5	12615-25L00	BOLT,STARTER CLUTCH	3
6	09206-12007	PIN (8X12X33)	1	₱ 172
