GSX-8R - FIG.334A (1-D-11) TURNSIGNAL LAMP - Suzuki Motorcycles Philippines

FIG.172A (1-C-5) FUEL PUMP
FIG.303A (1-D-3) MAGNETO
FIG.301A (1-D-2) STARTING MOTOR
FIG.310A (1-D-4) BATTERY
FIG.311A (1-D-5) STARTOR RELAY
FIG.313A (1-D-6) RECTIFIER
FIG.316A (1-D-7) IGNITION COIL
FIG.322B (1-D-8) ELECTRIC POWER CONTROL UNIT
FIG.330C (1-D-9) SPEEDOMETER
FIG.333A (1-D-10) HEADLAMP

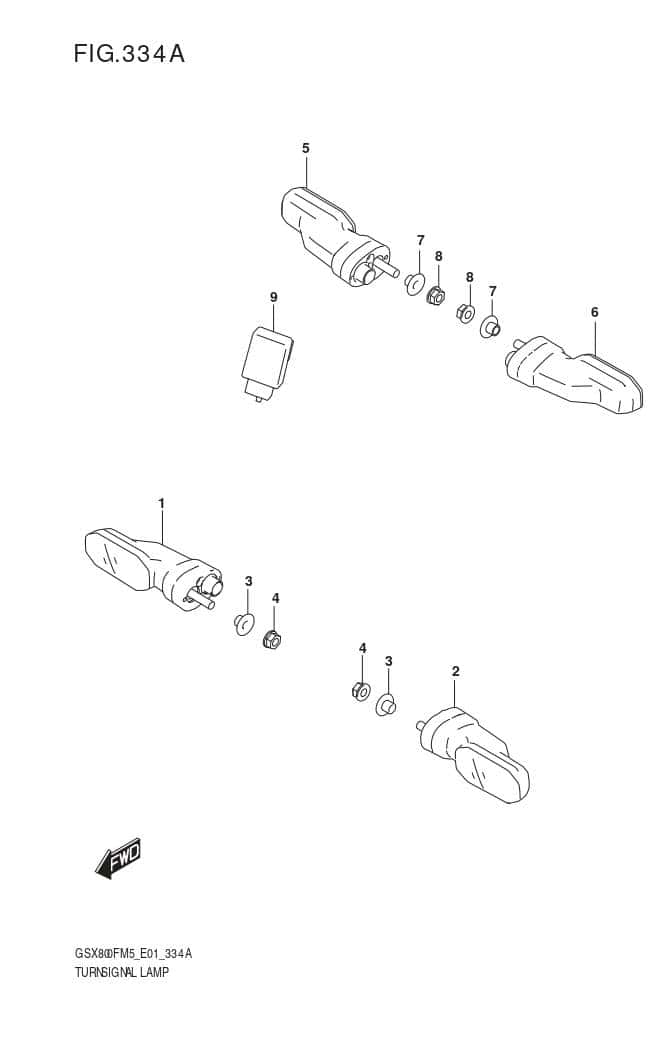

FIG.334A (1-D-11) TURNSIGNAL LAMP
FIG.339A (1-D-12) REAR COMBINATION LAMP
FIG.350A (1-D-13) WIRING HARNESS
FIG.352A (1-D-14) LOCK SET
FIG.352A (1-D-15) HANDLE SWITCH

Ref No.	Part Number	Part Name	QTY	Price
1	35601-48KB2	LAMP ASSY,FRONT TURNSIGNAL,R	1
2	35602-48KB2	LAMP ASSY,FRONT TURNSIGNAL,L	1
3	09169-06100	WASHER	2
4	08316-1006A	NUT (6X12)	2	₱ 43
5	35603-48KG1	LAMP ASSY,REAR TURNSIGNAL,R	1
6	35604-48KG1	LAMP ASSY,REAR TURNSIGNAL,L	1
7	09169-06100	WASHER	2
8	08316-1006A	NUT (6X12)	2	₱ 43
9	38610-06L01	RELAY ASSY,TURNSIGNAL	1
