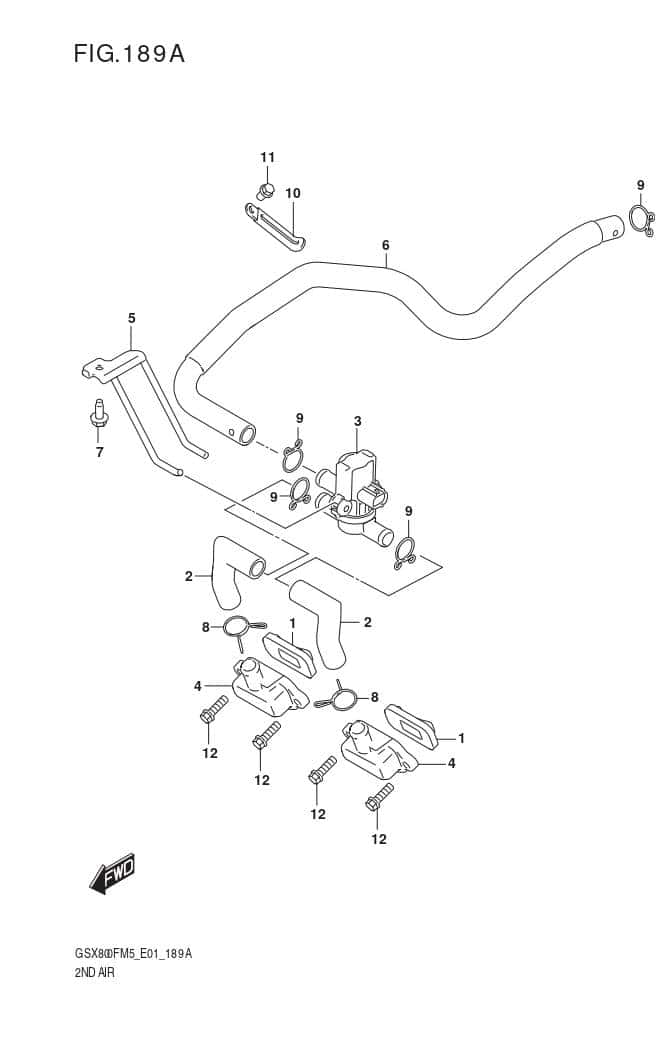

FIG.189A (1-C-10) 2ND AIR

Ref No.	Part Number	Part Name	QTY	Price
1	18450-28K00	VALVE ASSY,2ND AIR REED	2	₱ 1,225
2	18461-25L00	HOSE,2ND AIR VALVE	2
3	18510-29G31	VALVE ASSY,AIR CUT	1	₱ 2,749
4	18531-25L00	COVER,2ND AIR REED VALVE	2
5	18610-25L00	BRACKET,2ND AIR VALVE	1
6	18710-25L00	HOSE,2ND AIR CLNR	1
7	09135-06027	BOLT (6X16)	1
8	09401-17201	CLIP	2	₱ 104
9	09401-18101	CLIP	4	₱ 76
10	09404-06043	CLAMP (L:65)	1
11	01547-0610A	BOLT	1	₱ 36
12	01547-0620A	BOLT	4	₱ 26
