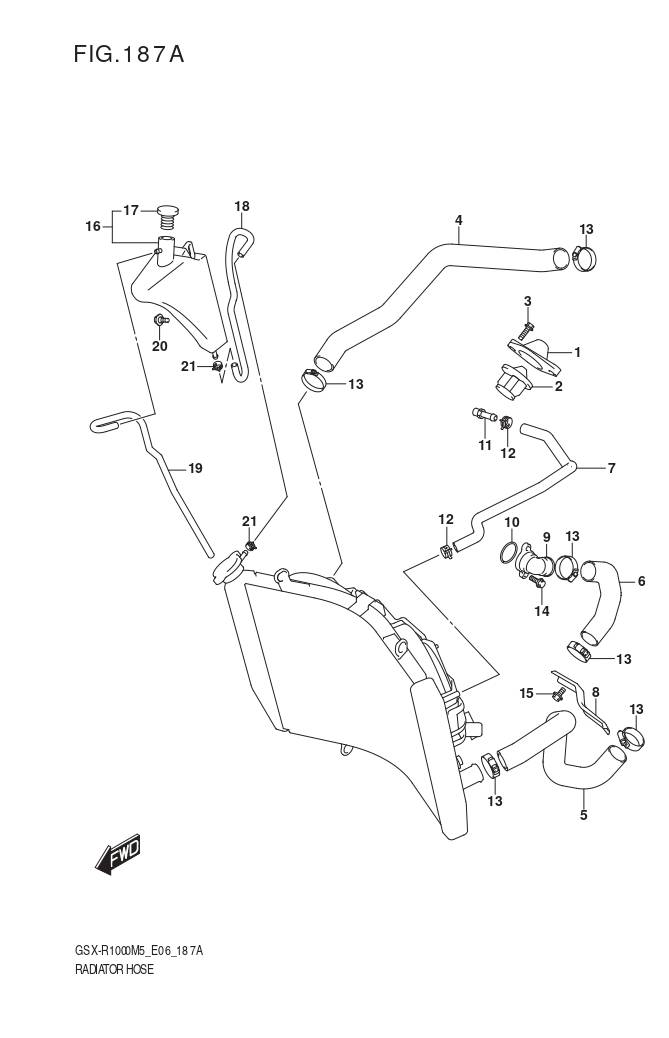

Ref No. |
Part Number |
Part Name |
QTY |
Price |
|---|---|---|---|---|
1 |
17661-37H00 |
COVER,THERMOSTAT |
1 |
₱ 747 |
2 |
17670-06G61 |
THERMOSTAT,WATER |
1 |
₱ 999 |
3 |
01547-0620A |
BOLT |
2 |
₱ 26 |
4 |
17851-17K00 |
HOSE,RDTR INLET |
1 |
₱ 1,044 |
5 |
17852-17K00 |
HOSE,RDTR OUTLET |
1 |
₱ 1,172 |
6 |
17853-17K00 |
HOSE,CYLINDER INLET |
1 |
₱ 481 |
7 |
17854-17K00 |
HOSE,WATER BYPASS |
1 |
₱ 846 |
8 |
17859-17K00 |
BRACKET,HOSE GUIDE |
1 |
₱ 826 |
9 |
17861-17K00 |
CONNECTOR,CYL WATER INLET |
1 |
₱ 1,349 |
10 |
09280-28005 |
O-RING (D:2.4,OD:27.7) |
1 |
₱ 26 |
11 |
09362-09011 |
UNION |
1 |
₱ 324 |
12 |
09401-12414 |
CLIP |
1 |
₱ 94 |
13 |
09402-35501 |
CLAMP |
6 |
₱ 191 |
14 |
01547-0616A |
BOLT |
2 |
₱ 74 |
15 |
01550-0612A |
BOLT |
1 |
₱ 12 |
16 |
17910-17K00 |
TANK ASSY,RESERVOIR |
1 |
₱ 2,464 |
17 |
17931-31J00 |
.CAP,WATER RESERVOIR TANK |
1 |
₱ 176 |
18 |
17981-17K00 |
HOSE,RESERVOIR TANK INLET |
1 |
₱ 453 |
19 |
17982-47H10 |
HOSE,RSVR TANK OVFL |
1 |
₱ 404 |
20 |
09111-06085 |
BOLT (6X12) |
1 |
₱ 138 |
21 |
09401-08411 |
CLIP (ID:8.6) |
2 |
₱ 47 |
