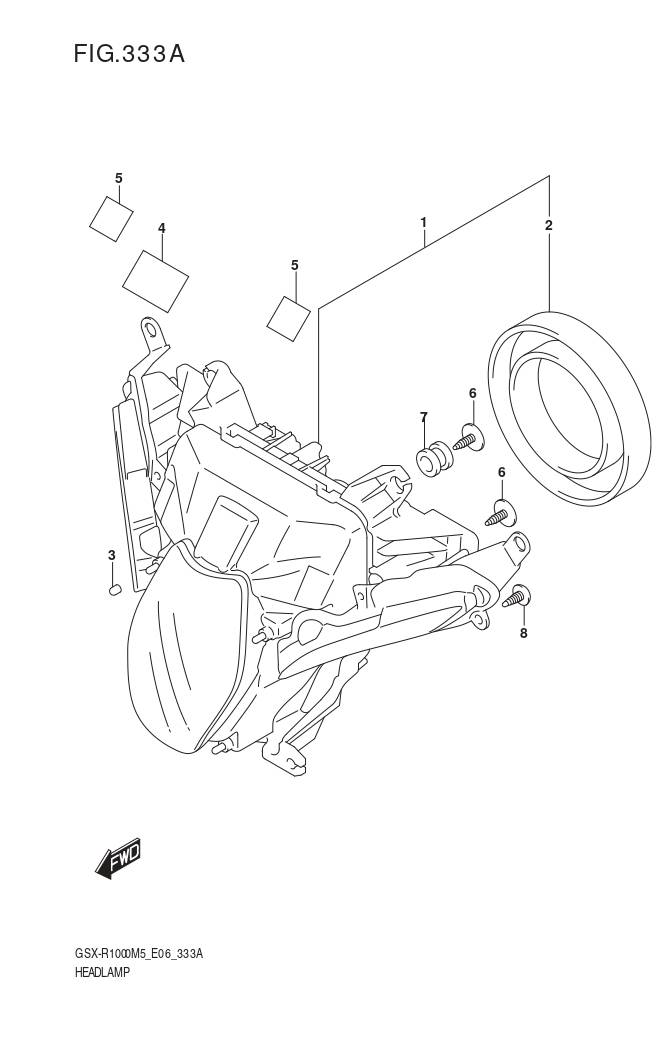

GSX-R1000 - FIG.333A (1-D-8) HEADLAMP (GSX-R1000RZA)

GSX-R1000 - FIG.172A (1-C-4) FUEL PUMP
GSX-R1000 - FIG.304A (1-D-2) GENERATOR
GSX-R1000 - FIG.301A (1-C-16) STARTING MOTOR
GSX-R1000 - FIG.312A (1-D-4) ELECTRICAL (GSX-R1000RA,GSX-R1000RZA)
GSX-R1000 - FIG.312E (1-D-5) ELECTRICAL (GSX-R1000A)
GSX-R1000 - FIG.330A (1-D-6) SPEEDOMETER (GSX-R1000A)
GSX-R1000 - FIG.334B (1-D-11) TURNSIGNAL LAMP
GSX-R1000 - FIG.339A (1-D-12) REAR COMBINATION LAMP
GSX-R1000 - FIG.350A (1-D-13) WIRING HARNESS ((GSX-R1000RA,GSX-R1000RZA))
GSX-R1000 - FIG.352A (1-D-15) LOCK SET
GSX-R1000 - FIG.355A (1-D-16) HANDLE SWITCH
GSX-R1000 - FIG.333A (1-D-8) HEADLAMP (GSX-R1000RZA)
GSX-R1000 - FIG.533A (1-G-16) HYDRAULIC UNIT (GSX-R1000A)
GAX-R1000 - FIG.310A (1-D-3) BATTERY

Ref No.	Part Number	Part Name	QTY	Price
1	35100-17KA1	HEADLAMP ASSY	1
2	35125-17K00	.SOCKET COVER	1	₱ 1,121
3	44294-43H11	CUSHION,FUEL TANK COVER	4	₱ 82
4	44572-02F01	FASTENER (25X33X2.6)	1	₱ 316
5	44572-37H00	FASTENER,COWLING (20X15X0.8)	2	₱ 278
6	09136-05062	SCREW (5X15)	6	₱ 64
7	09320-09059	CUSHION (9X18X14)	4	₱ 77
8	03541-0512B	SCREW	4	₱ 28
