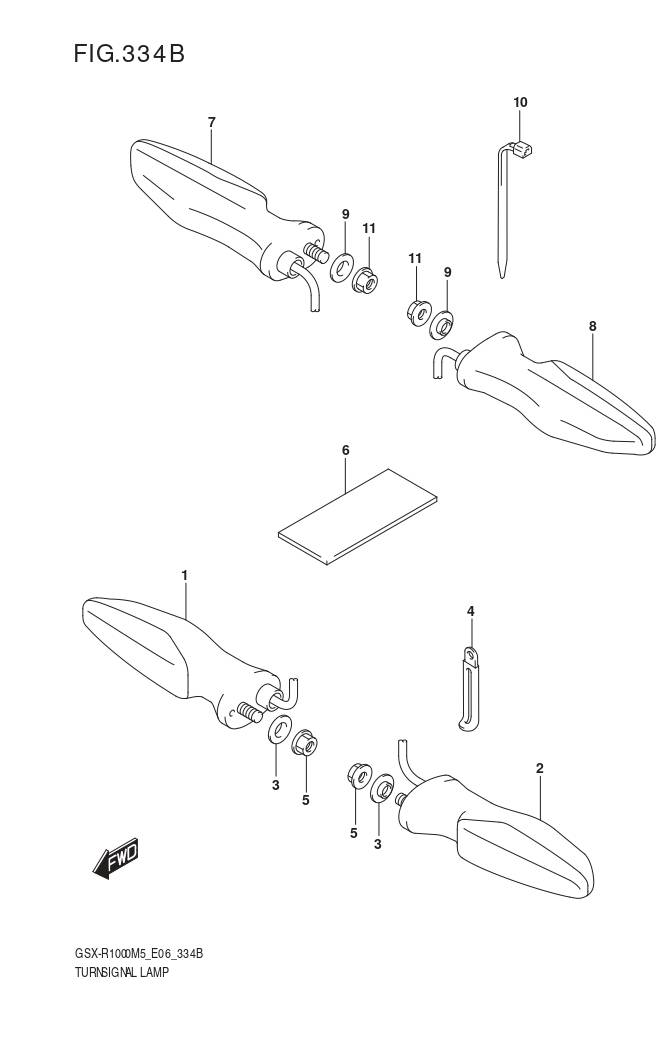

Ref No.	Part Number	Part Name	QTY	Price
1	35601-17KA1	LAMP ASSY,FRONT TURNSIGNAL,R	1	₱ 4,926
2	35602-17KA1	LAMP ASSY,FRONT TURNSIGNAL,L	1	₱ 4,926
3	09169-06076	WASHER	2	₱ 91
4	09404-06429	CLAMP (L:45)	1	₱ 64
5	08316-1006A	NUT (6X12)	2	₱ 43
6	33652-17K10	CUSHION (45X100X3)	1	₱ 117
7	35603-17KA1	LAMP ASSY,REAR TURNSIGNAL,R	1	₱ 4,926
8	35604-17KA1	LAMP ASSY,REAR TURNSIGNAL,L	1	₱ 4,926
9	09169-06076	WASHER	2	₱ 91
10	09407-14403	CLAMP (L:125)	1	₱ 65
11	08316-1006A	NUT (6X12)	2	₱ 43
