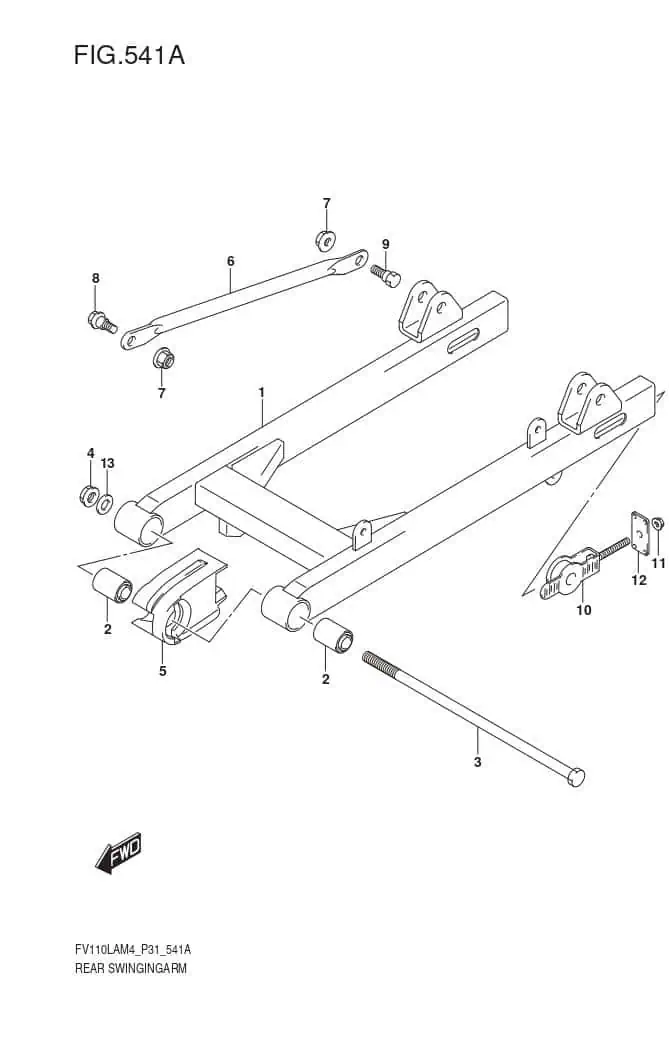

FIG.541A (1-F-11) REAR SWINGINGARM
FIG.550A (1-F-5) & (1-F-6) REAR WHEEL (FW110D)
FIG.550C (1-F-7) & (1-F-8) REAR WHEEL (FW110SC)
FIG.474A (1-E-12) REAR FENDER
FIG.407A (1-D-3) STAND
FIG.524A (1-E-13) STEERING STEM
FIG.462C (1-E-2) HANDLEBAR (FW110SC)

Ref No.	Part Name	QTY	Price
1	SWINGINGARM,REAR (SILVER)	1	₱ 2,747
2	BUSHING (10X23X35)	2	₱ 204
3	SHAFT,RR SWGARM PIVOT	1	₱ 193
4	WASHER (10.1X25X3.2)	2	₱ 45
5	NUT	1	₱ 42
6	BUFFER,CHAIN TOUCH DEFENSE	1	₱ 143
7	TORQUELINK,REAR	1	₱ 192
8	NUT	2	₱ 21
9	BOLT,RR TORQUELINK FR	1	₱ 40
10	BOLT,RR TORQUELINK FR	1	₱ 37
11	ADJUSTER,CHAIN	2	₱ 335
12	NUT	2	₱ 43
13	GUIDE,CHAIN ADJUSTER	2	₱ 96
14	WASHER (12.5X26X2.3)	2	₱ 44
