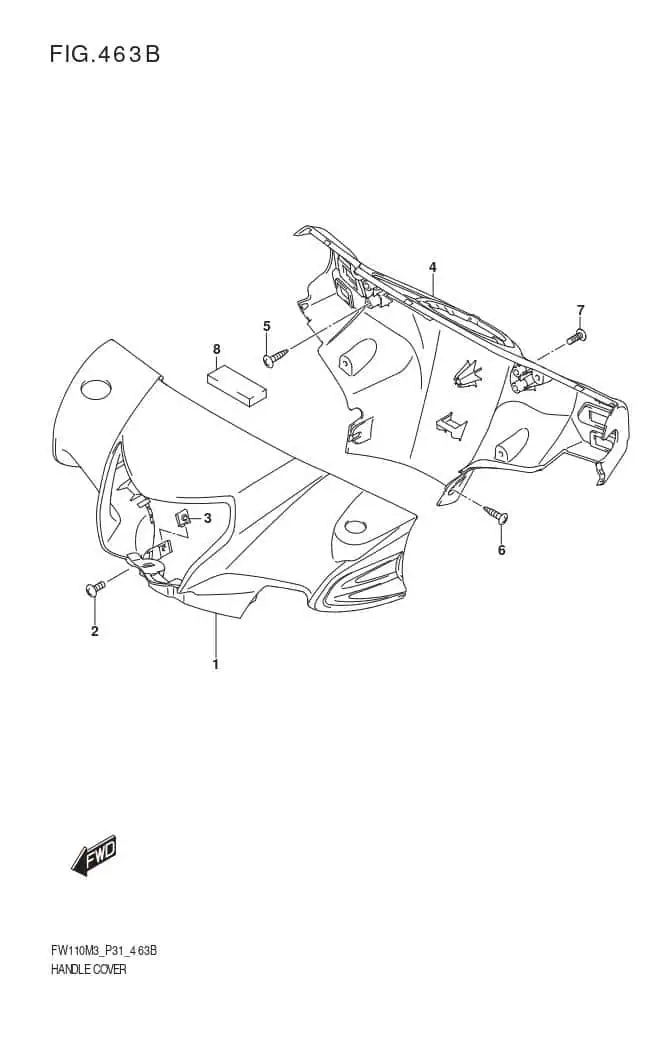

SMASH CARB – HANDLE COVER (FW110D) – FIG.463B (1-E-4)

FIG.542A (1-F-12) CHAIN CASE
FIG.415A (1-D-8) FOOTREST
FIG.445C (1-D-10) FRAME COVER (FW110D)
FIG.401A (1-D-2) FRAME
FIG.445B (1-D-9) FRAME COVER (FW110SC)
FIG.420A (1-D-9) FUEL TANK
FIG.530A (1-E-14) FRONT WHEEL (FW110SC)
FIG.530C (1-E-15) FRONT WHEEL (FW110D)
FIG.537A (1-F-2) FRONT MASTER CYLINDER (FW110SC)
FIG.521B (1-E-12) FRONT FORK DAMPER (FW110SC)
FIG.460B (1-D-14) FRONT FENDER (FW110SC)
FIG.460C (1-D-15) FRONT FENDER (FW110D)
FIG.535A (1-E-16) FRONT CALIPER (FW110SC)
FIG.449B (1-D-12) FRAME HEAD COVER
FIG.449C (1-D-13) FRAME HEAD COVER (FW110D)
FIG.463A (1-E-3) HANDLE COVER (FW110D)
FIG.463B (1-E-4) HANDLE COVER (FW110SC)
FIG.467A (1-E-5) HANDLE LEVER (FW110D)
FIG.467B (1-E-11) HANDLE LEVER (FW110SCM5 P31)
FIG.462A (1-D-16) HANDLEBAR (FW110D
FIG.496A (1-E-14) LABEL
FIG.431B (1-D-6) LEG SHIELD (FW110SC)
FIG.431C (1-D-7) & (1-D-8) LEG SHIELD (FW110SC)
FIG.478A (1-E-8) LUGGAGE BOX
FIG.474A (1-E-12) REAR FENDER
FIG.541A (1-F-11) REAR SWINGINGARM
FIG.550A (1-F-5) & (1-F-6) REAR WHEEL (FW110D)
FIG.550C (1-F-7) & (1-F-8) REAR WHEEL (FW110SC)
FIG.474A (1-E-12) REAR FENDER
FIG.407A (1-D-3) STAND
FIG.524A (1-E-13) STEERING STEM
FIG.462C (1-E-2) HANDLEBAR (FW110SC)

Ref No.	Part Number	Part Name	QTY	Price
1.1	56311-45H10-YNR	COVER,HANDLE FR (BLACK)	1
1.2	56311-45H10-YSF	COVER,HANDLE FRONT (BLUE)	1	₱ 1,066
2	02142-0512A-000	SCREW	1	₱ 30
3	09148-04019-000	NUT (M4)	4	₱ 55
4	56321-45H10-000	COVER,HANDLE REAR	1	₱ 470
5	03541-0516A-000	SCREW	2	₱ 48
6	03541-0416B-000	SCREW	4	₱ 38
7	56316-45H00-000	SCREW,HANDLE COVER FR & RR	2	₱ 52
8	33652-35400-000	PROTECTOR (20X50X8)	1	₱ 56
