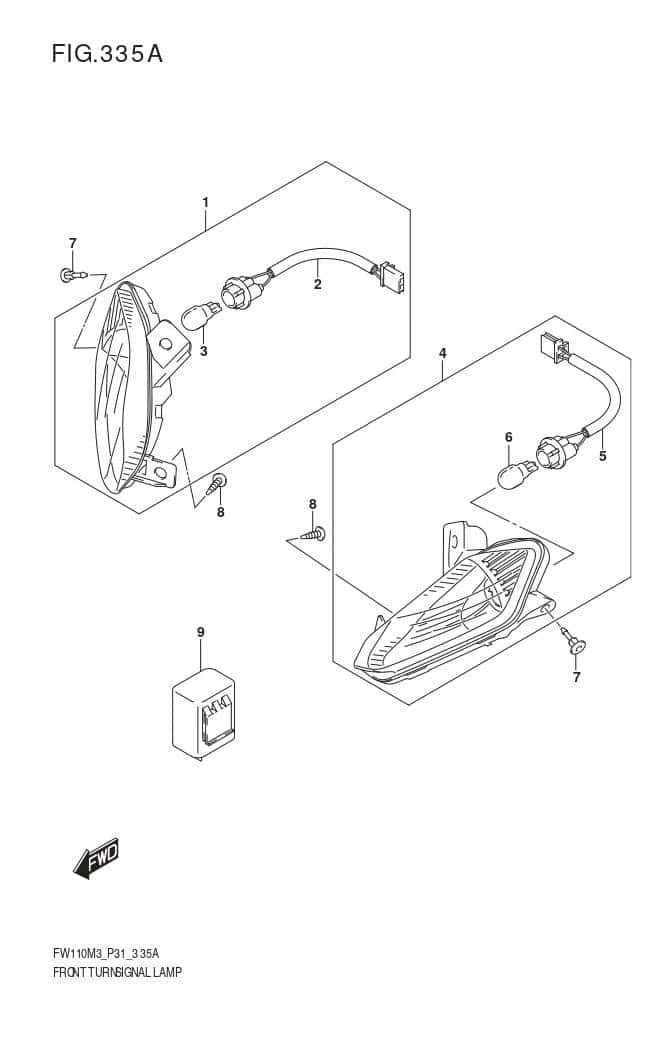

SMASH CARB – FRONT TURNSIGNAL LAMP – FIG.335A (1-D-2)

FIG.310A (1-C-10) BATTERY
FIG.312A (1-C-11) ELECTRICAL
FIG.335A (1-D-2) FRONT TURNSIGNAL LAMP
FIG.333A (1-C-14) HEADLAMP
FIG.303A (1-C-9) MAGNETO
FIG.339A (1-C-14) REAR COMBINATION LAMP
FIG.330B (1-C-12) SPEEDOMETER (FW110D)
FIG.301A (1-C-8) STARTING MOTOR
FIG.350A (1-C-15) WIRING HARNESS (FW110D)

Ref No.	Part Number	Part Name	QTY	Price
1	35601-45H01-000	LAMP ASSY,FRONT TURNSIGNAL,R	1	₱ 821
2	35618-16H00-000	.CORD ASSY RH	1	₱ 204
3	09471-12114-000	.BULB (12V10W)	1	₱ 138
4	35602-45H01-000	LAMP ASSY,FRONT TURNSIGNAL,L	1	₱ 821
5	35638-41HA0-000	.CORD ASSY LH	1	₱ 265
6	09471-12114-000	.BULB (12V10W)	1	₱ 138
7	09409-06314-000	CLIP (5.9X20.5)	2	₱ 19
8	03541-0512A-000	SCREW	4
9.1	38610-09411-000	RELAY ASSY	1	₱ 890
9.2	38610-07H00-000	RELAY ASSY	1
