VSTROM 800 DE - FIG.114A (1-B-9) CLUTCH COVER - Suzuki Motorcycles Philippines

VSTROM 800 DE - FIG.101A (1-B-2) GASKET SET
VSTROM 800 DE - FIG.102A (1-B-3) CYLINDER HEAD COVER
VSTROM 800 DE - FIG.103A (1-B-4) CYLINDER HEAD
VSTROM 800 DE - FIG.107A (1-B-5) CYLINDER
VSTROM 800 DE - FIG.108A (1-B-6) CRANKCASE
VSTROM 800 DE - FIG.109A (1-B-7) CRANKCASE (2)
VSTROM 800 DE - FIG.113A (1-B-8) MAGNETO COVER

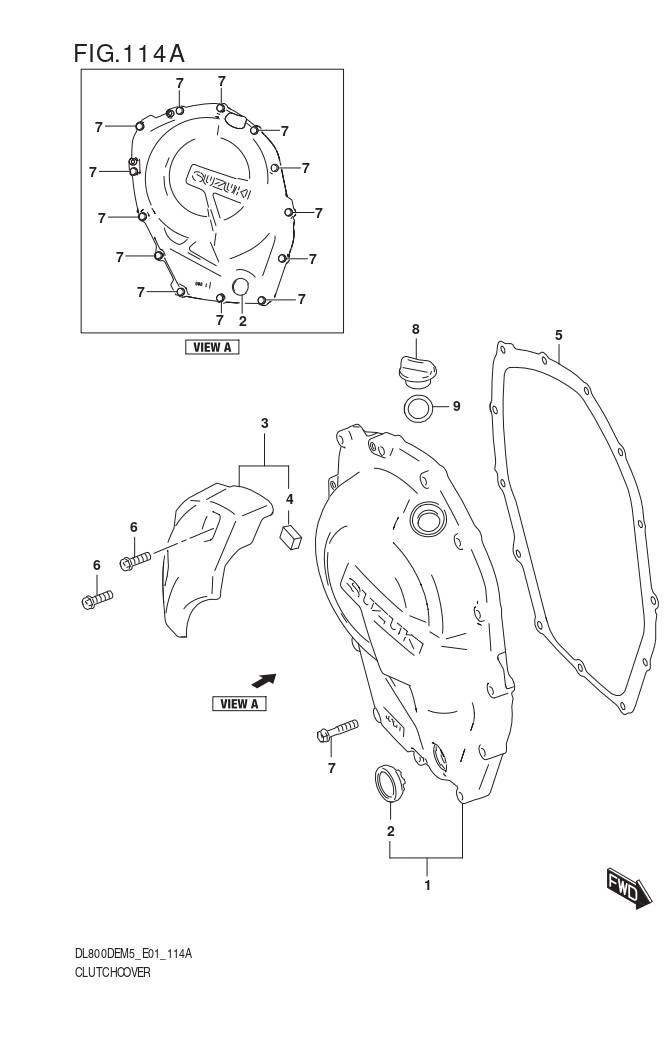

VSTROM 800 DE - FIG.114A (1-B-9) CLUTCH COVER
VSTROM 800 DE - FIG.116A (1-B-10) OIL PAN/OIL PUMP
VSTROM 800 DE - FIG.122A (1-B-12) STARTER CLUTCH
VSTROM 800 DE - FIG.124A (1-B-13) CRANK BALANCER
VSTROM 800 DE - FIG.126A (1-B-14) CAMSHAFT/VALVE
VSTROM 800 DE - FIG.127A (1-B-16) CAM CHAIN
VSTROM 800 DE - FIG.140A (1-C-2) THROTTLE BODY
VSTROM 800 DE - FIG.155A (1-C-3) AIR CLEANER
VSTROM 800 DE - FIG.120A (1-B-11) CRANKSHAFT
VSTROM 800 DE - FIG.163A (1-C-4) MUFFLER
VSTROM 800 DE - FIG.178A (1-C-6) OIL COOLER
VSTROM 800 DE - FIG.180A (1-C-7) WATER PUMP
VSTROM 800 DE - FIG.185A (1-C-8) RADIATOR
VSTROM 800 DE - FIG.187A (1-C-9) RADIATOR HOSE
FIG.189A (1-C-10) 2ND AIR

Ref No.	Part Number	Part Name	QTY	Price
1	11340-25L00	COVER,CLUTCH	1
2	11971-48H00	.LENS,OIL LEVEL CHECK	1
3	11370-25L00	PROTECTOR,CLUTCH COVER	1
4	94531-20K00	.CUSHION,UNDER COWL	2
5	11482-25L00	GASKET,CLUTCH COVER	1
6	09103-06527	BOLT (6X20)	2	₱ 57
7	09103-06529	BOLT (6X30)	13	₱ 66
8	09259-20008-XC0	PLUG	1	₱ 235
9	09280-17003	O-RING (D:3.1,ID:16.8)	1	₱ 45
