Part No: 94491-25LA0
Desc: COVER,UNDER
Qty: 1
Price:

Part No: 94492-25LA0
Desc: SHIELD,UNDER COVER HEAT NO.1
Qty: 1
Price:

Part No: 94493-25LA0
Desc: SHIELD,UNDER COVER HEAT NO.2
Qty: 1
Price:

Part No: 94494-25LA0
Desc: SHIELD,UNDER COVER HEAT NO.3
Qty: 1
Price:

Part No: 94495-25LA0
Desc: SHIELD,UNDER COVER HEAT NO.4
Qty: 1
Price:

Part No: 09111-06262
Desc: BOLT (6X13.5)
Qty: 2
Price: ₱ 51

Part No: 09139-06206
Desc: SCREW (6X20)
Qty: 2
Price: ₱ 131

Part No: 09320-09016
Desc: CUSHION (9X18X9.5)
Qty: 2
Price: ₱ 16

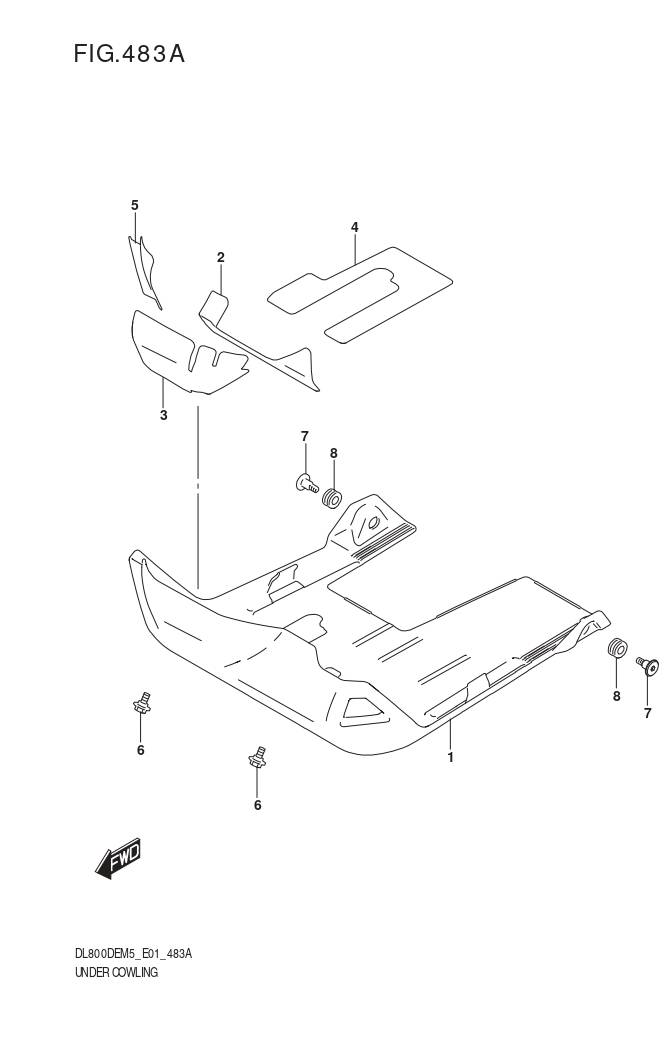

Ref No.	Part Number	Part Name	QTY	Price
1	94491-25LA0	COVER,UNDER	1
2	94492-25LA0	SHIELD,UNDER COVER HEAT NO.1	1
3	94493-25LA0	SHIELD,UNDER COVER HEAT NO.2	1
4	94494-25LA0	SHIELD,UNDER COVER HEAT NO.3	1
5	94495-25LA0	SHIELD,UNDER COVER HEAT NO.4	1
6	09111-06262	BOLT (6X13.5)	2	₱ 51
7	09139-06206	SCREW (6X20)	2	₱ 131
8	09320-09016	CUSHION (9X18X9.5)	2	₱ 16
