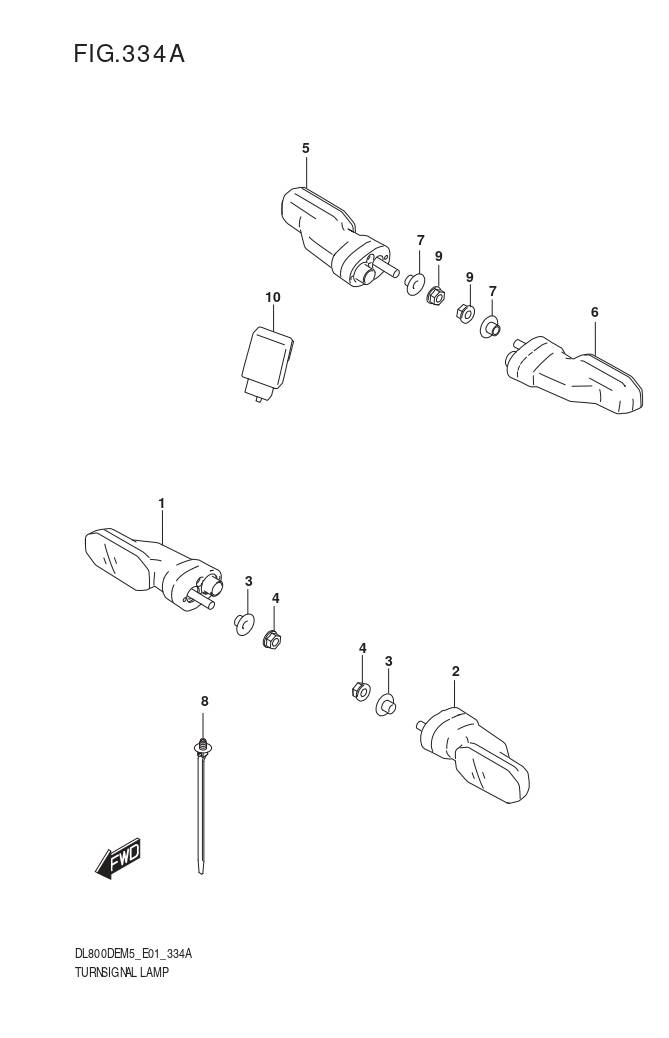

Ref No.	Part Number	Part Name	QTY	Price
1	35601-48KA2	LAMP ASSY,FRONT TURNSIGNAL,R	1
2	35602-48KA2	LAMP ASSY,FRONT TURNSIGNAL,L	1
3	09169-06100	WASHER	2
4	08316-1006A	NUT (6X12)	2	₱ 43
5	35603-48KC1	LAMP ASSY,REAR TURNSIGNAL,R	1
6	35604-48KC1	LAMP ASSY,REAR TURNSIGNAL,L	1
7	09169-06100	WASHER	2
8	09407-11402	CLAMP (L:90)	1	₱ 47
9	08316-1006A	NUT (6X12)	2	₱ 43
10	38610-06L01	RELAY ASSY,TURNSIGNAL	1
