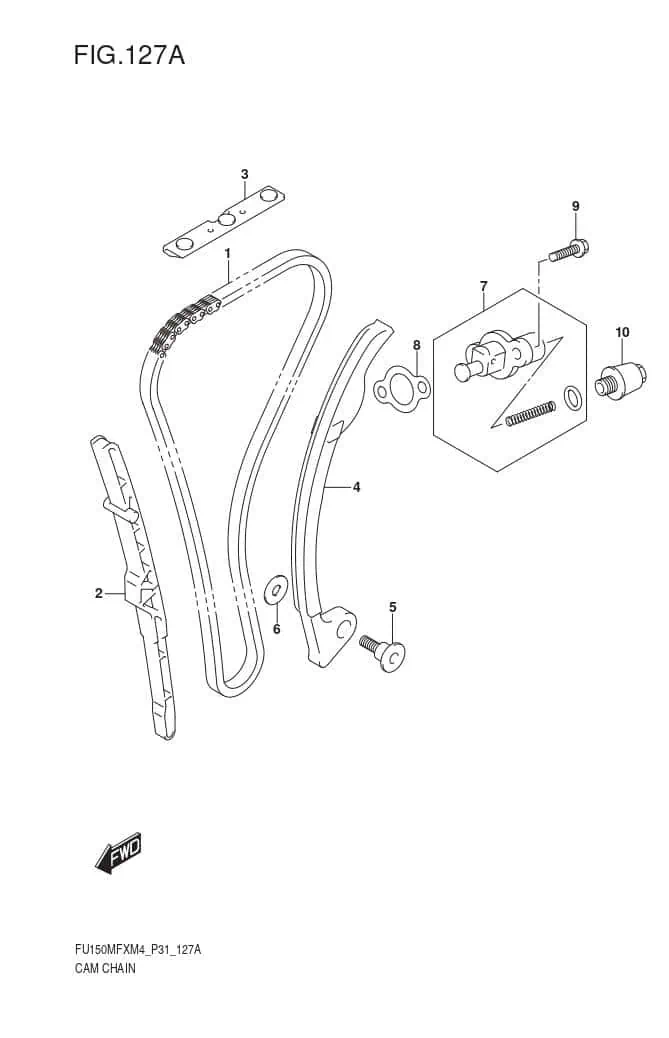

FIG.127A (1-B-12) CAM CHAIN
FIG.462A (1-E-8) HANDLEBAR

Ref No.	Part Number	Part Name	QTY	Price
1	12760-12K00-000	CHAIN, CAMSHAFT DRIVE	1	₱ 961
2	12771-12K00-000	GUIDE, CAM CHAIN NO.1	1	₱ 138
3	12782-12K01-000	GUIDE, CAM CHAIN NO.2	1	₱ 177
4	12811-12K00-000	TENSIONER, CAM CHAIN	1	₱ 460
5	12812-35C00-000	BOLT, CAM CHAIN TENSIONER	1
6	08211-06181-000	WASHER	1	₱ 101
7	12830-12K00-000	ADJUSTER ASSY, TENSIONER	1
8	12837-12K00-000	GASKET, TENSIONER ADJUSTER	1	₱ 36
9	01547-0620B-000	BOLT	2	₱ 52
10	12836-12K01-000	BOLT, ADJUSTER SPRING	1	₱ 111
