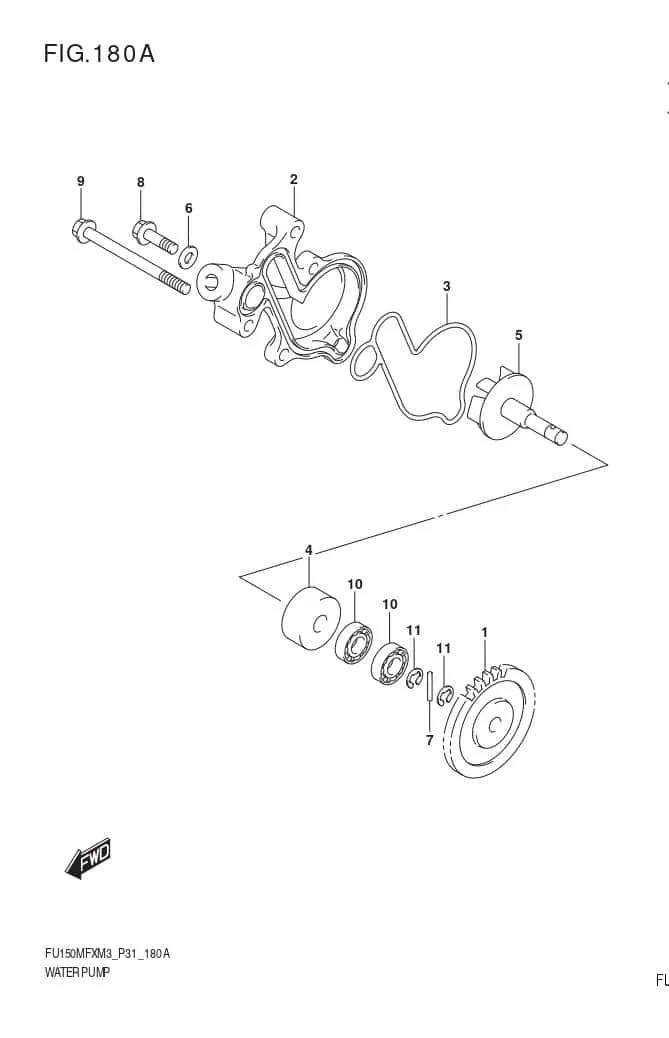

Raider R150 FI – WATER PUMP – FIG.180A (1-C-5)

FIG.102A (1-B-2) CYLINDER HEAD COVER
FIG.155A (1-B-14) AIR CLEANER
FIG.126A (1-B-10) CAMSHAFT/VALVE
FIG.124A (1-B-9) CRANK BALANCER
FIG.112A (1-B-6) CRANKCASE COVER
FIG.108A (1-B-5) CRANKCASE
FIG.120A (1-B-7) CRANKSHAFT
FIG.107A (1-B-4) CYLINDER
FIG.103A (1-B-3) CYLINDER HEAD
FIG.163A (1-C-2) MUFFLER
FIG.170A (1-B-16) OIL PUMP
FIG.185A (1-C-4) RADIATOR
FIG.187A (1-C-5) RADIATOR HOSE
FIG.122A (1-B-8) STARTER CLUTCH
FIG.140A (1-B-13) THROTTLE BODY
FIG.180A (1-C-3) WATER PUMP
FIG.127A (1-B-12) CAM CHAIN
FIG.462A (1-E-8) HANDLEBAR

Ref No.	Part Number	Part Name	QTY	Price
1	16331-12K00-000	GEAR,OIL PUMP DRIVEN (NT:30)	1	₱ 195
2	17410-12K20-000	CASE,WATER PUMP	1	₱ 1,128
3	17431-12K10-000	O RING,WATER PUMP CASE	1	₱ 145
4	17461-12K00-000	SEAL,WATER PUMP SHAFT OIL	1	₱ 655
5	17510-12K01-000	SHAFT,WATER PUMP	1	₱ 365
6	09168-06018-000	GASKET (6.2X13X1.2)	1	₱ 68
7	09261-02001-000	PIN (2.5X19.8)	1	₱ 48
8	01547-0620B-000	BOLT	3	₱ 52
9	01547-0675A-000	BOLT	2	₱ 60
10	08113-0608A-000	BEARING	2	₱ 209
11	08332-1106A-000	E-RING	2	₱ 74
