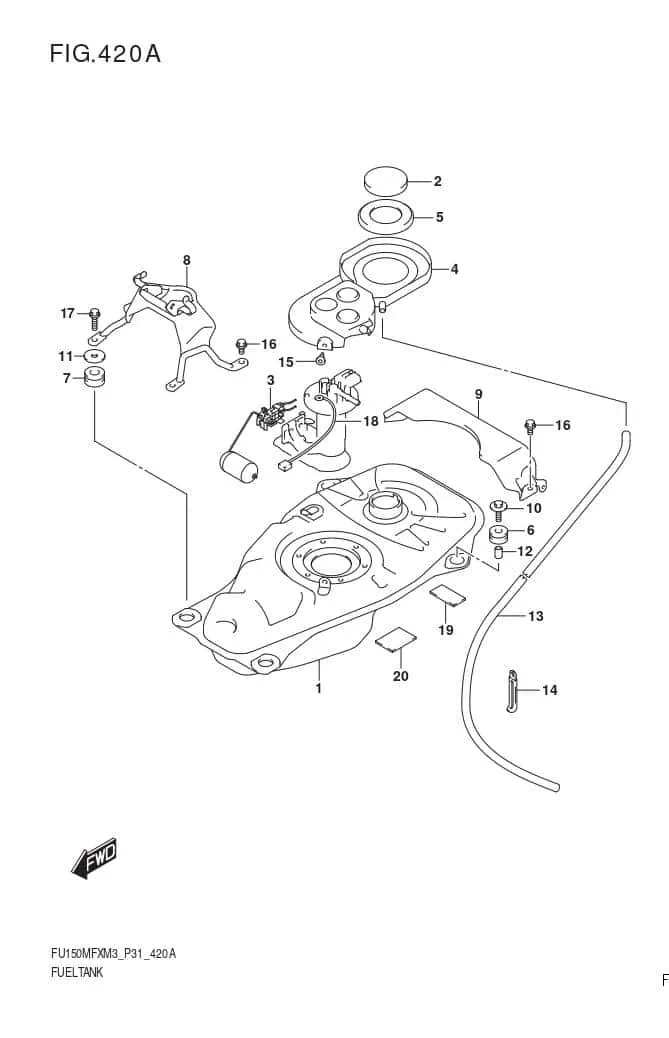

Ref No. |
Part Number |
Part Name |
QTY |
Price |
|---|---|---|---|---|
1 |
44110-12K00-000 |
TANK,FUEL |
1 |
₱ 2,958 |
2 |
44210-09J00-000 |
CAP,FUEL TANK FILLER |
1 |
₱ 209 |
3 |
34810-12K10-000 |
GAUGE ASSY,FUEL LEVEL SENDER |
1 |
₱ 549 |
4 |
44261-12K00-000 |
TRAY,FUEL TANK INLET |
1 |
₱ 191 |
5 |
44261-41H10-000 |
RUBBER,TANK INLET |
1 |
₱ 69 |
6 |
44512-04F01-000 |
CUSHION,FUEL TANK SIDE |
2 |
₱ 36 |
7 |
44512-12K00-000 |
CUSHION,FUEL TANK FRONT |
2 |
₱ 44 |
8 |
44520-12K00-000 |
BRACKET,SEAT HINGE |
1 |
₱ 510 |
9 |
44551-12K00-000 |
BRACKET,SEAT SUPPORT |
1 |
₱ 310 |
10 |
09116-06186-000 |
BOLT (6X25) |
2 |
|
11 |
09160-06136-000 |
WASHER (6.5X28X1.6) |
2 |
₱ 77 |
12 |
09180-06267-000 |
SPACER (6.5X9X12.5) |
2 |
₱ 44 |
13 |
09352-70120-860 |
HOSE (7X11X860) |
1 |
₱ 175 |
14 |
09404-06040-000 |
CLAMP,FUEL HOSE |
1 |
₱ 40 |
15 |
09409-06341-000 |
CLIP (5.9X20.5) |
1 |
₱ 32 |
16 |
01550-0610B-000 |
BOLT |
4 |
₱ 27 |
17 |
01550-0625A-000 |
BOLT |
2 |
|
18 |
36851-12K00-000 |
WIRE,FUEL TANK |
1 |
₱ 99 |
18 |
33652-39J00-000 |
PROTECTOR,BATTERY (20X40X3) |
1 |
₱ 60 |
20 |
44281-12K00-000 |
CUSHION,FUEL TANK |
2 |
₱ 52 |
