Raider R150 FI – CYLINDER HEAD COVER – FIG.102A (1-B-2)

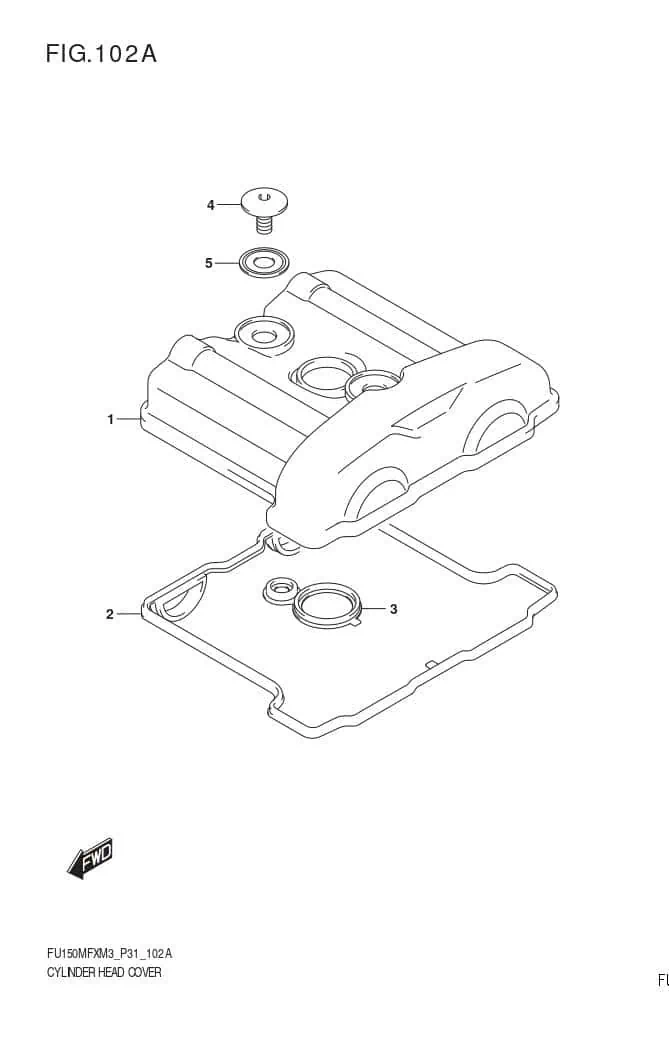

FIG.102A (1-B-2) CYLINDER HEAD COVER
FIG.155A (1-B-14) AIR CLEANER
FIG.126A (1-B-10) CAMSHAFT/VALVE
FIG.124A (1-B-9) CRANK BALANCER
FIG.112A (1-B-6) CRANKCASE COVER
FIG.108A (1-B-5) CRANKCASE
FIG.120A (1-B-7) CRANKSHAFT
FIG.107A (1-B-4) CYLINDER
FIG.103A (1-B-3) CYLINDER HEAD
FIG.163A (1-C-2) MUFFLER
FIG.170A (1-B-16) OIL PUMP
FIG.185A (1-C-4) RADIATOR
FIG.187A (1-C-5) RADIATOR HOSE
FIG.122A (1-B-8) STARTER CLUTCH
FIG.140A (1-B-13) THROTTLE BODY
FIG.180A (1-C-3) WATER PUMP
FIG.127A (1-B-12) CAM CHAIN
FIG.462A (1-E-8) HANDLEBAR

Ref No.	Part Number	Part Name	QTY	Price
1	11171-12K00-000	COVER, CYLINDER HEAD	1	₱ 2,131
2	11173-12K00-000	GASKET, CYL HEAD COVER NO.1	1	₱ 269
3	11178-12K00-000	GASKET, CYL HEAD COVER	1	₱ 56
4	09106-07025-000	BOLT (7X12)	2	₱ 40
5	11191-27E70-000	WASHER (10.6X25.5X1.6)	2	₱ 52
