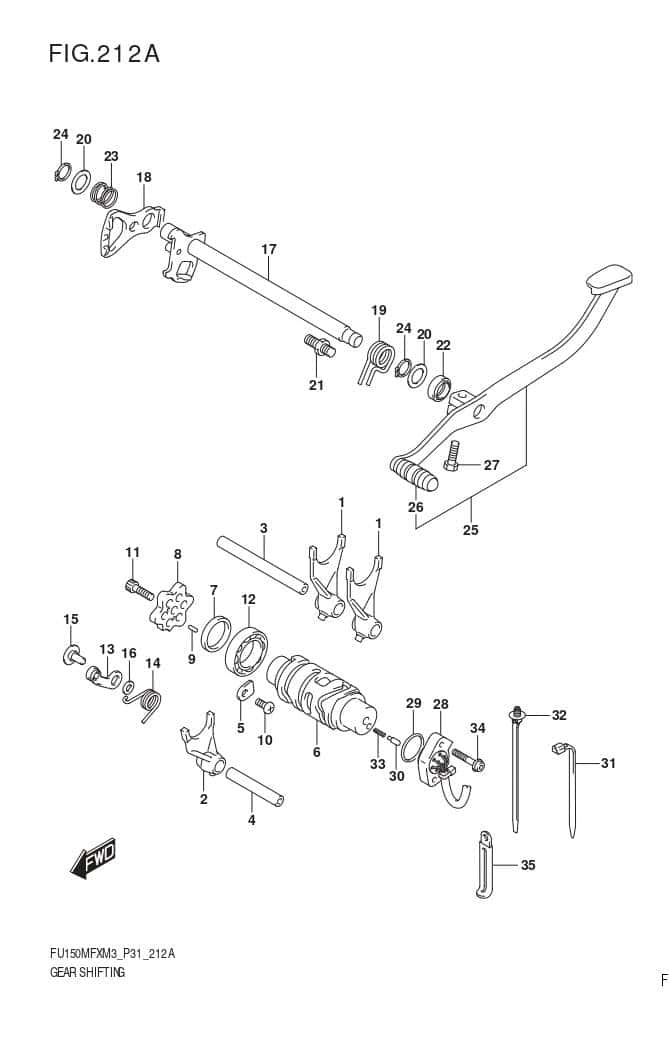

Ref No. |
Part Number |
Part Name |
QTY |
Price |
|---|---|---|---|---|
1 |
25211-12K00-000 |
FORK,GEAR SHIFT NO.1 |
2 |
₱ 431 |
2 |
25231-12K00-000 |
FORK,GEAR SHIFT NO.3 |
1 |
₱ 431 |
3 |
25411-25G10-000 |
SHAFT,GEAR SHIFT FORK NO.1 |
1 |
₱ 608 |
4 |
25421-25G10-000 |
SHAFT,GEAR SHIFT FORK NO.2 |
1 |
₱ 581 |
5 |
24741-20A10-000 |
RETAINER,SHIFT CAM,R BEARING |
1 |
₱ 19 |
6 |
25311-12K00-000 |
CAM,GEAR SHIFT |
1 |
₱ 863 |
7 |
25312-12K00-000 |
SPACER,GEAR SHIFT CAM BRG |
1 |
₱ 104 |
8 |
25381-12K00-000 |
PLATE,GEAR SHIFT CAM |
1 |
₱ 463 |
9 |
09261-03002-000 |
PIN (3X9.8) |
2 |
₱ 19 |
10 |
02112-0612A-000 |
SCREW |
1 |
₱ 34 |
11 |
07130-0620A-000 |
BOLT |
1 |
₱ 69 |
12 |
08110-69050-000 |
BEARING |
1 |
₱ 375 |
13 |
08110-69050-000 |
STOPPER,GEAR SHIFT CAM |
1 |
₱ 426 |
14 |
25355-12K00-000 |
SPRING,GEAR SHIFT CAM STOPPER |
1 |
₱ 98 |
15 |
25357-22J00-000 |
BOLT,SHIFT CAM STOPPER |
1 |
₱ 28 |
16 |
08211-06121-000 |
WASHER |
1 |
₱ 30 |
17 |
25510-12K11-000 |
SHAFT,GEAR SHIFT |
1 |
₱ 643 |
18 |
25512-12K01-000 |
PLATE,GEAR SHIFT CAM DRIVE |
1 |
₱ 426 |
19 |
25518-12K10-000 |
SPRING,SHIFT SHAFT RETURN |
1 |
₱ 98 |
20 |
25519-25G00-000 |
WASHER,GEAR SHIFT SHAFT,R (14X22X1) |
2 |
₱ 38 |
21 |
25671-22J10-000 |
STOPPER,GEAR SHIFT ARM |
₱ 70 |
|
22 |
09283-14014-000 |
SEAL,OIL (14X22X6) |
₱ 56 |
|
23 |
09440-17013-000 |
SPRING |
₱ 16 |
|
24 |
08331-31149-000 |
CIRCLIP |
₱ 24 |
|
25 |
25600-12K01-000 |
LEVER ASSY,GEAR SHIFT |
||
26 |
25652-16H11-000 |
.RUBBER,GEAR SHIFT |
₱ 20 |
|
27 |
01500-0620A-000 |
BOLT |
₱ 34 |
|
28 |
37720-12K21-000 |
BASE ASSY,GEAR SHIFT TERM |
||
29 |
37722-25G00-000 |
O-RING,GEAR SHIFT SW (D:2.4,ID 26.2) |
₱ 56 |
|
30 |
09209-05011-000 |
PIN (5X15.5) |
₱ 38 |
|
31 |
36990-25G10-000 |
CLAMP (L:125) |
₱ 3,100 |
|
32 |
09407-17403-000 |
CLAMP (L:170) |
||
33 |
09407-17403-000 |
SPRING |
₱ 16 |
|
34 |
07130-0520A-000 |
BOLT |
₱ 30 |
|
35 |
09404-06429-000 |
CLAMP (L:45) |
₱ 64 |
–
Part Number
SRP
Description
