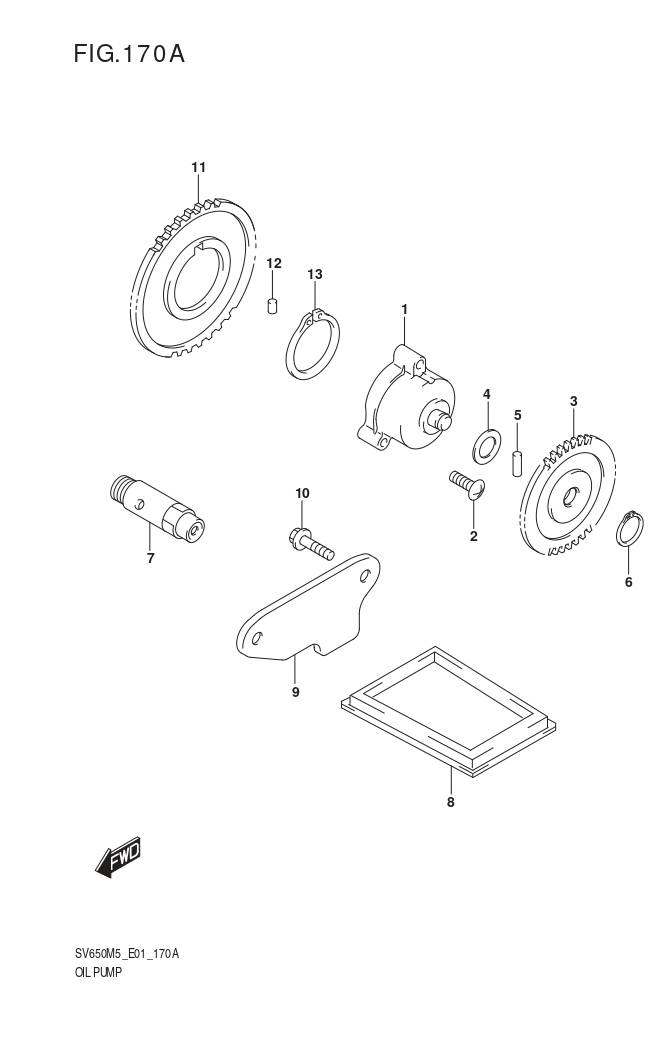

Ref No.	Part Number	Part Name	QTY
1	16400-20F00	PUMP ASSY,ENG OIL	1
2	07130-0625A	BOLT (6X25)	3
3	16331-19F00	GEAR,ENG OIL PUMP DRIVEN (NT:34)	1
4	09181-10158	SHIM (10X18X0.5)	1
5	09261-04001	PIN (4X18.5)	1
6	08331-31109	CIRCLIP	1
7	16440-17C20	VALVE ASSY,OIL RELIEF	1
8	16520-32E01	STRAINER,ENG OIL	1
9	16523-17G00	CAP,OIL STRAINER	1
10	07130-0612A	BOLT	2
11	16321-19F00	GEAR,ENG OIL PUMP DRIVE (NT:45)	1
12	09261-06002	PIN (6X6)	1
13	08331-31383	CLIP	1
