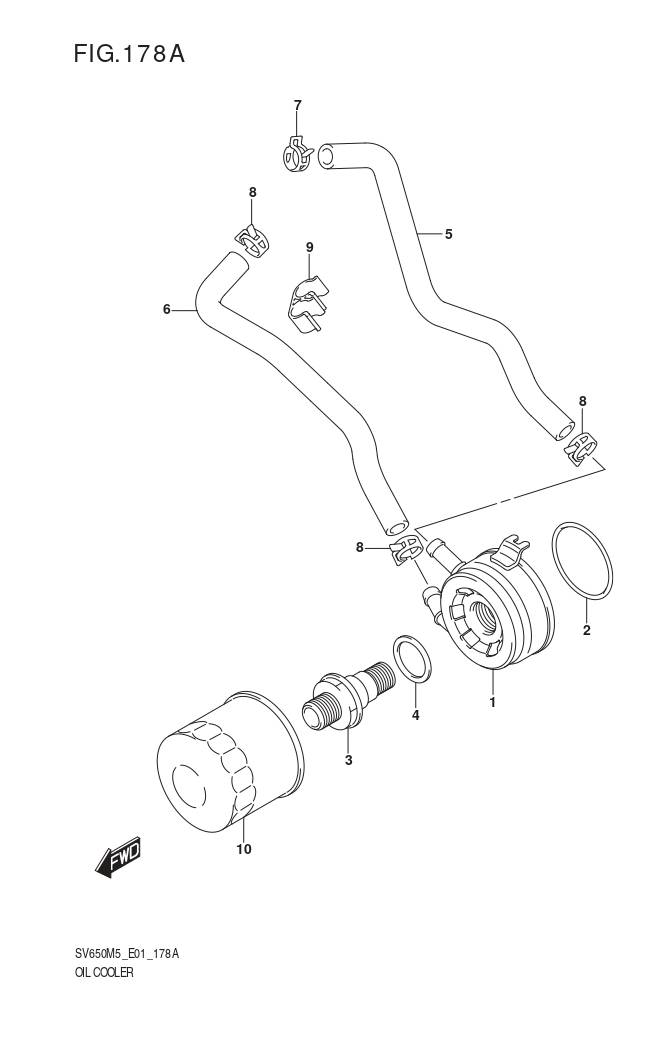

Ref No.	Part Number	Part Name	QTY	Price
1	16600-44H00	COOLER ASSY,OIL	1	₱ 16,712
2	09280-55002	O-RING (D:3.1,ID:54.5)	1	₱ 79
3	16591-02F00	BOLT,OIL COOLER UNION	1	₱ 1,037
4	09181-25160	SHIM (25X34X0.7)	1	₱ 77
5	16461-18K00	HOSE,OIL COOLER IN	1	₱ 678
6	16471-44H00	HOSE,OIL COOLER OUT	1	₱ 606
7	09401-16407	CLIP (ID:16.5)	1
8	09401-16409	CLIP	3	₱ 70
9	09408-00267	CLAMP	1	₱ 104
10	16510-07J00	FILTER ASSY,ENGINE OIL (P1.0)	1	₱ 739
