Part No: 63112-18K00
Desc: FENDER,REAR REAR
Qty: 1
Price: ₱ 1797

Part No: 63160-13K00
Desc: BOLT,REAR FENDER REAR
Qty: 4
Price: ₱ 151

Part No: 63111-18K00
Desc: FENDER,REAR FRONT
Qty: 1
Price: ₱ 1430

Part No: 09111-06107
Desc: BOLT (6X12)
Qty: 4
Price: ₱ 79

Part No: 09800-21101
Desc: TOOL ASSY
Qty: 1
Price:

Part No: 09280-57003
Desc: O-RING (D:3.5,ID:56.5)
Qty: 1
Price: ₱ 275

Part No: 09816-00059
Desc: SPANNER,HEXAGON (5)
Qty: 1
Price:

Part No: 09822-00003
Desc: CLAMP,WRENCH
Qty: 1
Price:

Part No: 09160-06077
Desc: WASHER (6.5X20X1.2)
Qty: 2
Price: ₱ 11

Part No: 63118-18K01
Desc: CUSHION,REAR FENDER
Qty: 1
Price: ₱ 181

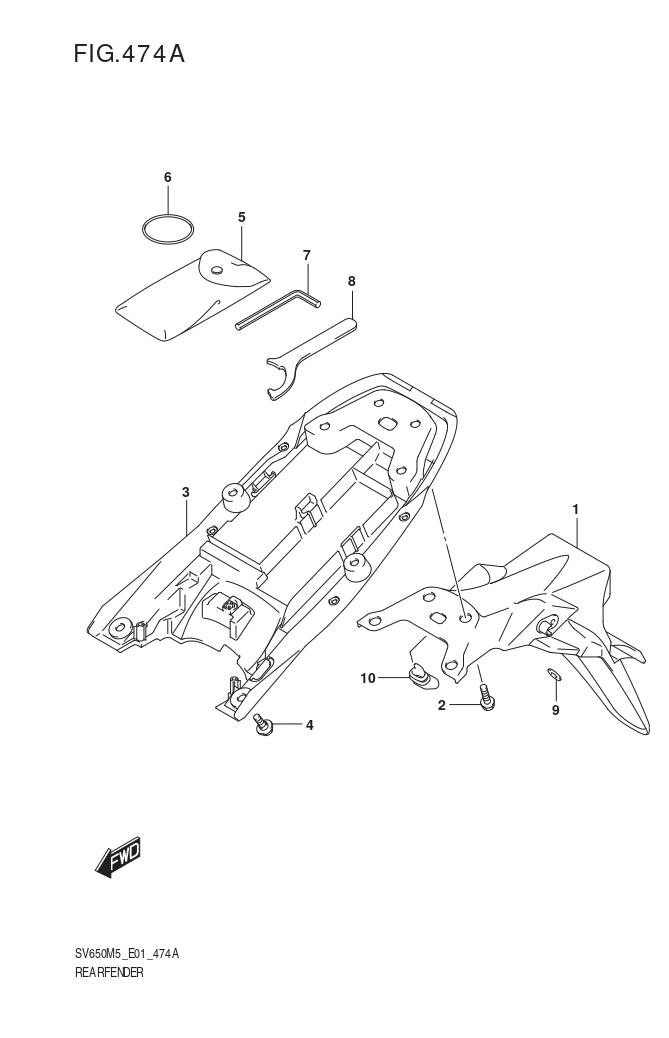

Ref No.	Part Number	Part Name	QTY	Price
1	63112-18K00	FENDER,REAR REAR	1	₱ 1,797
2	63160-13K00	BOLT,REAR FENDER REAR	4	₱ 151
3	63111-18K00	FENDER,REAR FRONT	1	₱ 1,430
4	09111-06107	BOLT (6X12)	4	₱ 79
5	09800-21101	TOOL ASSY	1
6	09280-57003	O-RING (D:3.5,ID:56.5)	1	₱ 275
7	09816-00059	SPANNER,HEXAGON (5)	1
8	09822-00003	CLAMP,WRENCH	1
9	09160-06077	WASHER (6.5X20X1.2)	2	₱ 11
10	63118-18K01	CUSHION,REAR FENDER	1	₱ 181
