Ref No. |
Part Number |
Part Name |
QTY |
Price |
|---|---|---|---|---|
1 |
51103-18K10-291 |

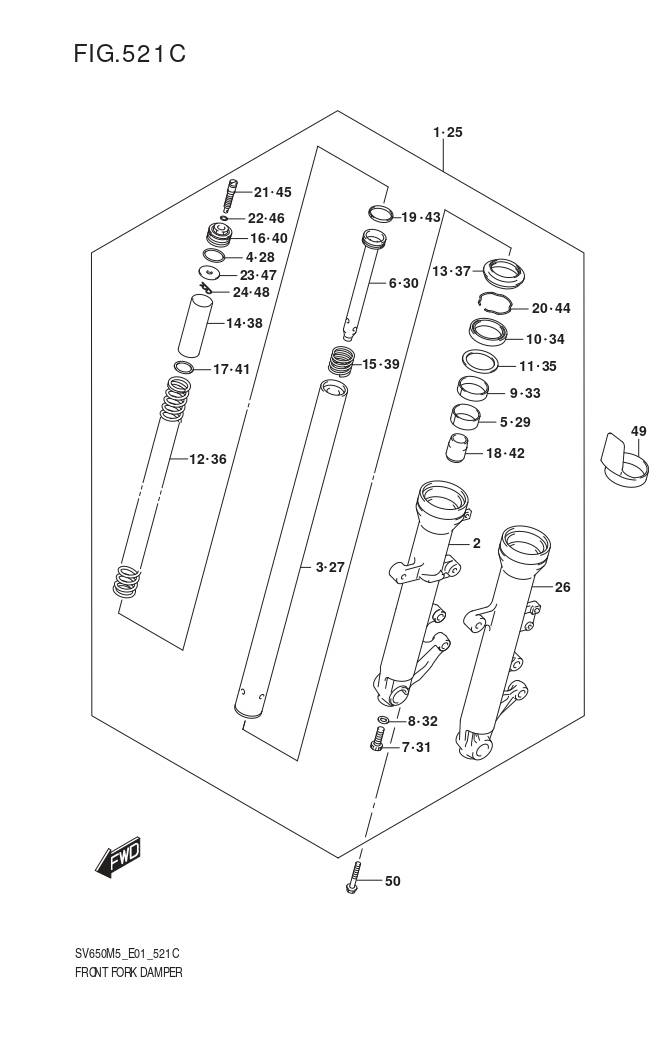

DAMPER ASSY,FR,R (BLACK) |
1 |
₱ 30,558 |
2 |
51130-18K00-291 |
.TUBE,OUTER RH (BLACK) |
1 |
₱ 15,370 |
3 |
51110-18K00 |
.TUBE,INNER |
1 |
₱ 10,891 |
4 |
51117-12C00 |
.O-RING |
1 |
₱ 111 |
5 |
51121-44H00 |
.BUSH,SLIDE |
1 |
₱ 539 |
6 |
51146-17G80 |
.CYLINDER |
1 |
₱ 2,625 |
7 |
51147-06F10 |
.BOLT (8X18) |
1 |
₱ 44 |
8 |
51148-31030 |
.GASKET |
1 |
₱ 51 |
9 |
51152-01H10 |
.BUSH,GUIDE |
1 |
₱ 479 |
10 |
51153-01H10 |
.SEAL,OIL |
1 |
₱ 763 |
11 |
51168-38B00 |
.SPACER,SEAL |
1 |
₱ 165 |
12 |
51171-18K10 |
.SPRING,FRONT |
1 |
₱ 893 |
13 |
51173-01H00 |
.SEAL,DUST |
1 |
₱ 330 |
14 |
51176-18K00 |
.COLLAR,SPRING |
1 |
₱ 217 |
15 |
51177-17G50 |
.SPRING,REBOUND |
1 |
₱ 233 |
16 |
51189-12C00 |
.BOLT,FORK |
1 |
₱ 1,798 |
17 |
51192-19C00 |
.JOINT,SPRING |
1 |
₱ 117 |
18 |
51195-48B31 |
.PIECE,OIL LOCK |
1 |
₱ 697 |
19 |
51196-12C00 |
.RING,PISTON |
1 |
₱ 195 |
20 |
51556-38B00 |
.RING,STOPPER |
1 |
₱ 200 |
21 |
51185-17G00 |
.ADJUSTER BOLT,SPRING |
1 |
₱ 1,188 |
22 |
09280-09005 |
.O-RING (D:1.9,ID:8.6) |
1 |
₱ 19 |
23 |
51186-12C00 |
.SEAT,SPRING |
1 |
₱ 155 |
24 |
51188-32B00 |
.PIN,SEAT SPRING |
1 |
₱ 109 |
25 |
51104-18K10-291 |
DAMPER ASSY,FR,L (BLACK) |
1 |
₱ 30,558 |
26 |
51140-18K00-291 |
.TUBE,OUTER LH (BLACK) |
1 |
₱ 15,370 |
27 |
51110-18K00 |
.TUBE,INNER |
1 |
₱ 10,891 |
28 |
51117-12C00 |
.O-RING |
1 |
₱ 111 |
29 |
51121-44H00 |
.BUSH,SLIDE |
1 |
₱ 539 |
30 |
51146-17G80 |
.CYLINDER |
1 |
₱ 2,625 |
31 |
51147-06F10 |
.BOLT (8X18) |
1 |
₱ 44 |
32 |
51148-31030 |
.GASKET |
1 |
₱ 51 |
33 |
51152-01H10 |
.BUSH,GUIDE |
1 |
₱ 479 |
34 |
51153-01H10 |
.SEAL,OIL |
1 |
₱ 763 |
35 |
51168-38B00 |
.SPACER,SEAL |
1 |
₱ 165 |
36 |
51171-18K10 |
.SPRING,FRONT |
1 |
₱ 893 |
37 |
51173-01H00 |
.SEAL,DUST |
1 |
₱ 330 |
38 |
51176-18K00 |
.COLLAR,SPRING |
1 |
₱ 217 |
39 |
51177-17G50 |
.SPRING,REBOUND |
1 |
₱ 233 |
40 |
51189-12C00 |
.BOLT,FORK |
1 |
₱ 1,798 |
41 |
51192-19C00 |
.JOINT,SPRING |
1 |
₱ 117 |
42 |
51195-48B31 |
.PIECE,OIL LOCK |
1 |
₱ 697 |
43 |
51196-12C00 |
.RING,PISTON |
1 |
₱ 195 |
44 |
51556-38B00 |
.RING,STOPPER |
1 |
₱ 200 |
45 |
51185-17G00 |
.ADJUSTER BOLT,SPRING |
1 |
₱ 1,188 |
46 |
51186-12C00 |
.SEAT,SPRING |
1 |
₱ 155 |
47 |
51188-32B00 |
.PIN,SEAT SPRING |
1 |
₱ 109 |
48 |
09280-09005 |
.O-RING (D:1.9,ID:8.6) |
1 |
₱ 19 |
49 |
51201-32F00 |
PROTECTOR |
2 |
₱ 595 |
50 |
51321-10F00 |
BOLT |
1 |
₱ 155 |
–
Part Number
SRP
Description
