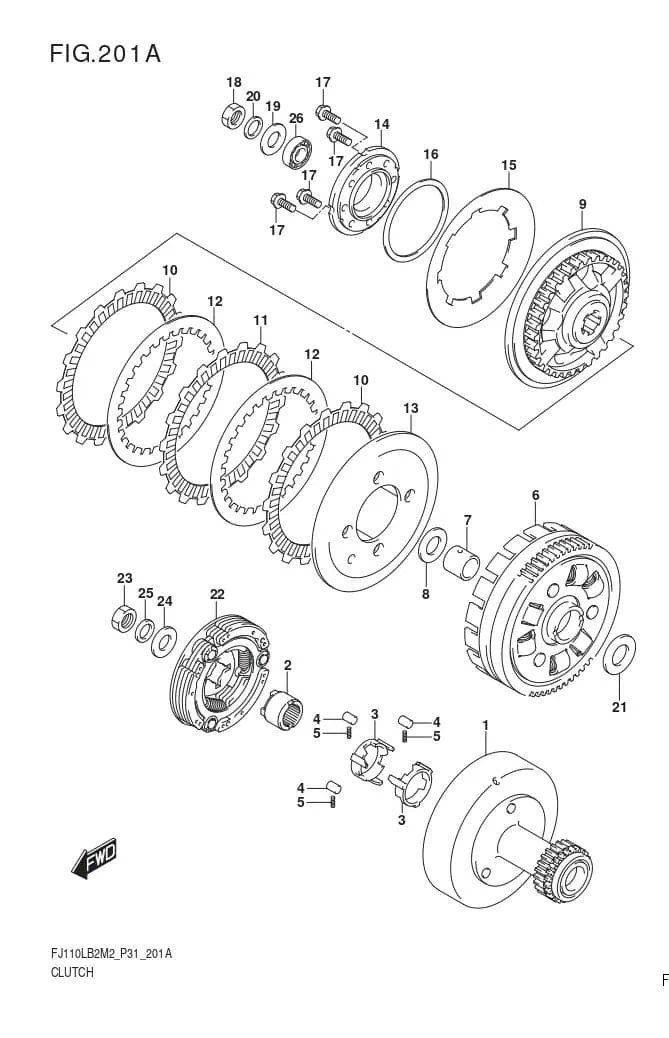

Ref No. |
Part Number |
Part Name |
QTY |
Price |
|---|---|---|---|---|
1.1 |
21110-22J20-000 |
GEAR,PRIMARY DRIVE (NT:21) |
1 |
₱ 1,424 |
2 |
21110-22JB0-000 |
RACE,ONE WAY CLUTCH INNER |
1 |
|
3 |
21631-22J00-000 |
RETAINER,ONE WAY CLUTCH |
2 |
₱ 527 |
4 |
09261-07006-000 |
ROLLER (7X10) |
3 |
₱ 34 |
5 |
21653-22J01-000 |
SPRING,ONE WAY CLUTCH |
3 |
₱ 40 |
6 |
21200-22J00-000 |
GEAR ASSY,PRIMARY DRIVEN (NT:69) |
1 |
₱ 809 |
7 |
21251-22J20-000 |
SPACER,PRIMARY DRIVEN GEAR |
1 |
₱ 336 |
8 |
21252-22J00-000 |
WASHER,PRI DRIVEN GEAR THR |
1 |
₱ 98 |
9 |
21411-22J00-000 |
HUB,CLUTCH SLEEVE |
1 |
₱ 547 |
10 |
21441-22J00-000 |
PLATE,CLUTCH DRIVE NO.1 (T:2.4) |
2 |
₱ 697 |
11 |
21442-22J00-000 |
PLATE,CLUTCH DRIVE NO.2 (T:2.4) |
1 |
₱ 353 |
12 |
21451-22J00-000 |
PLATE,CLUTCH DRIVEN (T:1.6) |
2 |
₱ 194 |
13 |
21461-22J00-000 |
DISC,CLUTCH PRESSURE |
1 |
₱ 400 |
14 |
21465-22J00-000 |
PLATE,RELEASE |
1 |
₱ 181 |
15 |
21472-22J00-000 |
SPRING,CLUTCH |
1 |
₱ 204 |
16 |
21471-22J00-000 |
SEAT,CLUTCH SPRING |
1 |
₱ 60 |
17 |
21412-22J00-000 |
BOLT,CLUTCH SPRING |
4 |
₱ 26 |
18 |
09140-14022-000 |
NUT (NT:24) |
1 |
₱ 71 |
19 |
09160-14005-000 |
WASHER (14X29X1.5) |
1 |
₱ 53 |
20 |
09164-14011-000 |
WASHER (14X21X1.4) |
1 |
₱ 32 |
21 |
21212-22J00-000 |
SPACER,PRIMARY DRIVEN GEAR THR |
1 |
|
22 |
21501-22J00-000 |
CLUTCH ASSY,SHOE |
1 |
₱ 1,750 |
23 |
09140-14022-000 |
NUT (NT:24) |
1 |
₱ 71 |
24 |
09160-14005-000 |
WASHER (14X29X1.5) |
1 |
₱ 53 |
25 |
09164-14011-000 |
WASHER (14X21X1.4) |
1 |
₱ 32 |
26 |
08110-60020-000 |
BEARING |
1 |
₱ 262 |
–
