Raider J Crossover - CYLINDER HEAD COVER - FIG.102A (1-B-2)

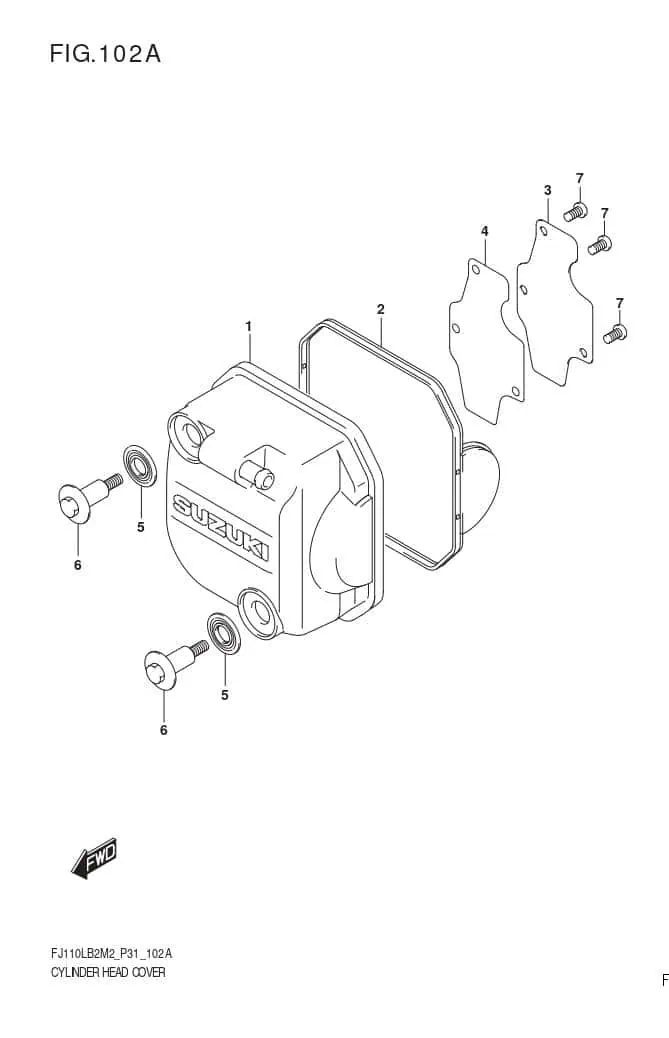

Fig.102A (1-B-2) - Cylinder Head Cover
FIG.103A (1-B-3) CYLINDER HEAD
FIG.107A (1-B-4) CYLINDER
FIG.108A (1-B-5) CRANKCASE
FIG.112A (1-B-6) CRANKCASE COVER
FIG.120A (1-B-7) CRANKSHAFT
FIG.122A (1-B-8) STARTER CLUTCH
FIG.126A (1-B-9) CAMSHAFT/VALVE
FIG.127A (1-B-10) CAM CHAIN
FIG.140A (1-B-11) THROTTLE BODY
FIG.155A (1-B-12) AIR CLEANER
FIG.163A (1-B-13) MUFFLER
FIG.170A (1-B-14) OIL PUMP

Ref No.	Part Number	Part Name	QTY	Price
1	11170-22J01-000	COVER,CYLINDER HEAD	1	₱ 934
2	11173-22J00-000	GASKET,CYL HEAD COVER	1	₱ 250
3	11176-22J00-000	PLATE,BREATHER	1
4	11177-22J00-000	GASKET,BREATHER PLATE	1	₱ 52
5	11191-27E70-000	WASHER,HEAD COVER BOLT (10.6X2 2 5.5X1.6)	2	₱ 52
6	09119-06120-000	BOLT,CYL HEAD COVER (L14.5)	289
7	02112B0510AN000	SCREW	3
