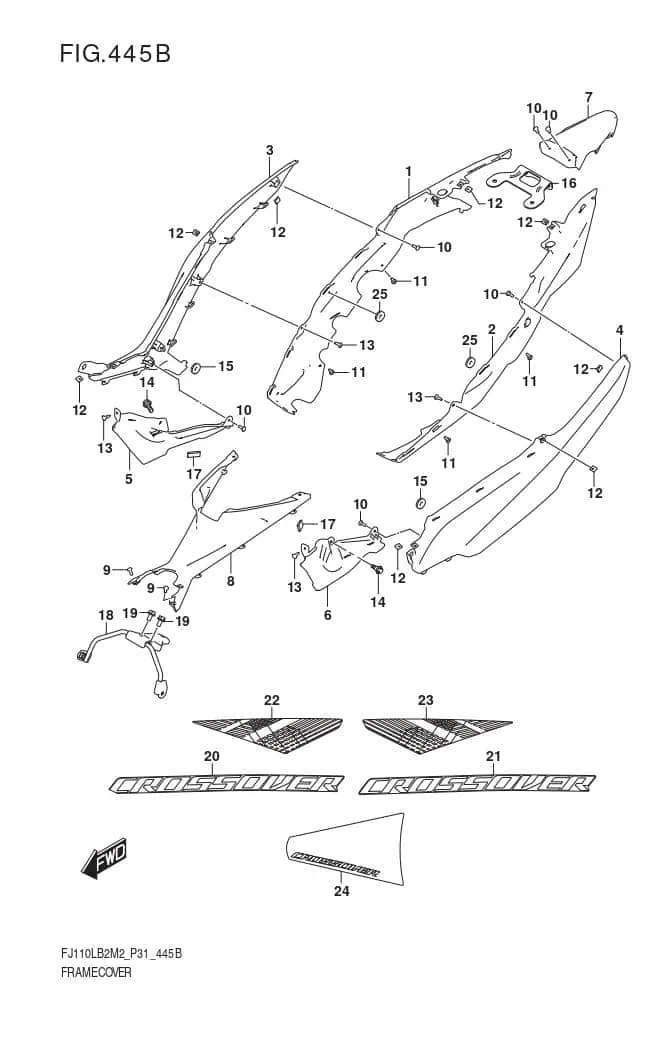

Raider J Crossover – FRAME COVER – FIG.445B (1-D-10)

Genuine Parts

Fig.102A (1-B-2) - Cylinder Head Cover
FIG.103A (1-B-3) CYLINDER HEAD
FIG.107A (1-B-4) CYLINDER
FIG.108A (1-B-5) CRANKCASE
FIG.112A (1-B-6) CRANKCASE COVER
FIG.120A (1-B-7) CRANKSHAFT
FIG.122A (1-B-8) STARTER CLUTCH
FIG.126A (1-B-9) CAMSHAFT/VALVE
FIG.127A (1-B-10) CAM CHAIN
FIG.140A (1-B-11) THROTTLE BODY
FIG.155A (1-B-12) AIR CLEANER
FIG.163A (1-B-13) MUFFLER
FIG.170A (1-B-14) OIL PUMP

FIG.172A (1-B-15) FUEL PUMP
FIG.301A (1-C-6) STARTING MOTOR
FIG.303A (1-C-8) MAGNETO
FIG.310A (1-C-9) BATTERY
FIG.312A (1-C-10) ELECTRICAL
FIG.333A (1-C-12) HEADLAMP
FIG.339A (1-C-14) REAR COMBINATION LAMP
FIG.330A (1-C-11) SPEEDOMETER
FIG.334A (1-C-13) TURNSIGNAL LAMP
FIG.350A (1-C-15) WIRINGHARNESS
FIG.352A (1-C-16) LOCK SET
FIG.355B (1-D-2) HANDLESWITCH

FIG.541A (1-E-10) REAR SWINGINGARM
FIG.542A (1-E-11) CHAIN CASE
FIG.550A (1-E-12) REAR WHEEL
FIG.415A (1-D-5) FOOTREST
FIG.401A (1-D-3) FRAME
FIG.460B (1-D-12) FRONT FENDER
FIG.435B (1-D-7) FRONT LEG SHIELD
FIG.435B (1-D-8) FRONT LEG SHIELD
FIG.420A (1-D-6) FUEL TANK
FIG.451A (1-D-11) HEADLAMP HOUSING
FIG.407A (1-D-4) STAND
FIG.445B (1-D-10) FRAME COVER
FIG.445B (1-D-9) FRAME COVER
FIG.535A (1-E-8) FRONT CALIPER
FIG.521A (1-E-4) FRONT FORK DAMPER
FIG.521A (1-E-5) FRONT FORK DAMPER
FIG.537A (1-E-9) FRONT MASTER CYLINDER
FIG.530A (1-E-7) FRONT WHEEL
FIG.467A (1-D-14) HANDLELEVER
FIG.462A (1-D-13) HANDLEBAR
FIG.496C (1-E-2) LABEL
FIG.478A (1-D-16) LUGGAGE BOX
FIG.474A (1-D-15) REAR FENDER
FIG.505B (1-E-3) SEAT
FIG.524A (1-E-6) STEERING STEM

Ref No.	Part Number	Part Name	QTY
22.3	68135-09L00-YLW	TAPE,FRAME COVER,R (YELLOW)	1
22.4	68135-09L00-YLW	TAPE,FRAME COVER,R (BLUE)	1
23.1	68145-09L00-019	TAPE,FRAME COVER LH (BLACK)	1
23.2	68145-09L00-YT9	TAPE,FRAME COVER,L (RED)	1
23.3	68145-09L00-YU1	TAPE,FRAME COVER,L (YELLOW)	1
23.4	68145-09L00-YLW	TAPE,FRAME COVER,L (BLUE)	1
24.1	68136-09L00-019	TAPE,FRAME COVER CTR (BLACK)	1
24.2	68136-09L00-YT9	TAPE,FRAME COVER CTR (RED)	1
24.3	68136-09L00-YU1	TAPE,FRAME COVER CTR (YELLOW)	1
24.4	68136-09L00-YLW	TAPE,FRAME COVER CTR (BLUE)	1
25	45148-23K00-000	CUSHION	2
