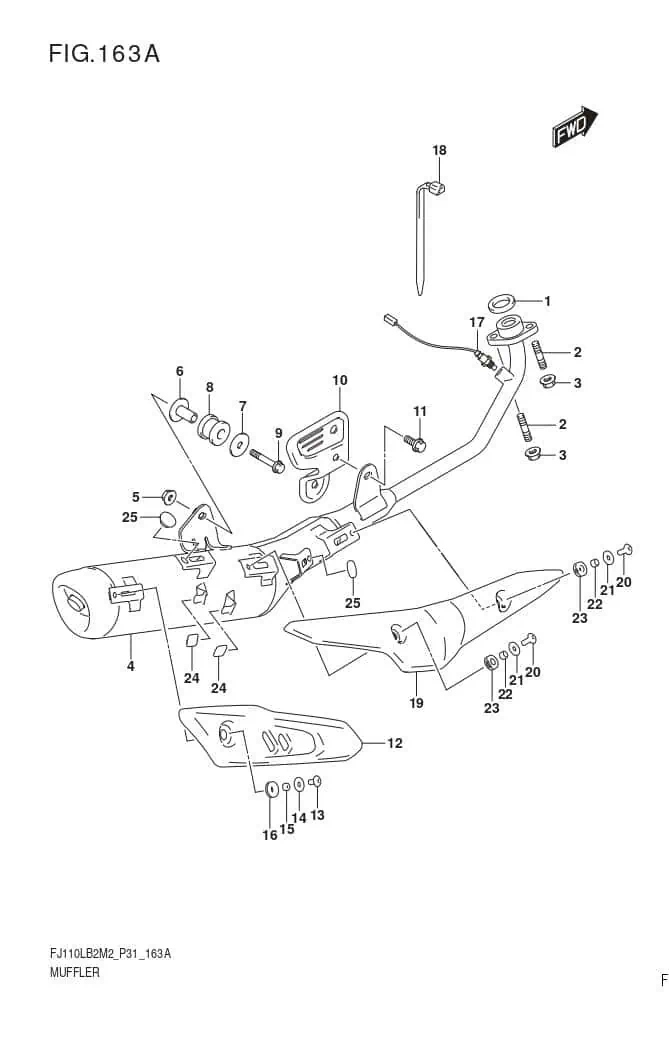

Ref No. |
Part Number |
Part Name |
QTY |
Price |
|---|---|---|---|---|
1 |
14181-30A20-000 |
GASKET,EXH PIPE |
1 |
₱ 32 |
2 |
09108-08280-000 |
BOLT,STUD (L:20) |
2 |
₱ 64 |
3 |
08316-1008A-000 |
NUT |
2 |
₱ 30 |
4 |
14310-22JB0-000 |
BODY,MUFFLER |
1 |
|
5 |
08316-1008A-000 |
NUT |
1 |
₱ 30 |
6 |
09180-08L01-000 |
SPACER (8.6X12X25.3) |
1 |
|
7 |
09160-08149-000 |
WASHER (8.5X30X1.6) |
1 |
₱ 52 |
8 |
09320-12L06-000 |
CUSHION |
1 |
₱ 44 |
9 |
01550-0840A-000 |
BOLT |
1 |
₱ 84 |
10 |
14410-22J00-00014410-22J00-000 |
BRACKET,MUF SPRT |
1 |
|
11 |
01550-0816B-000 |
BOLT |
1 |
|
12 |
14790-22J00-000 |
COVER,MUFFLER REAR |
1 |
|
13 |
09139-06027-000 |
SCREW (6X12) |
1 |
₱ 100 |
14 |
09160-06028-000 |
WASHER (6.5X18X1.0) |
2 |
₱ 48 |
15 |
09180-06343-000 |
SPACER |
1 |
₱ 101 |
16 |
09320-08082-000 |
CUSHION |
1 |
₱ 90 |
17 |
18213-22J01-000 |
SENSOR,OXYGEN |
1 |
|
18 |
09404-06429-000 |
CLAMP (L:45) |
2 |
|
19 |
14780-09L00-000 |
COVER,MUFFLER FRONT |
1 |
|
20 |
09139-06030-000 |
SCREW (6X16) |
2 |
₱ 116 |
21 |
09160-06028-000 |
WASHER (6.5X18X1.0) |
1 |
₱ 48 |
22 |
09180-06256-000 |
SPACER (6.5X9X5.7) |
2 |
₱ 69 |
23 |
09320-08051-000 |
CUSHION (8.4X18X6) |
2 |
|
24 |
14795-10FA0-000 |
GROMMET |
2 |
₱ 24 |
25 |
09321-10045-000 |
CUSHION |
2 |
₱ 87 |
–
