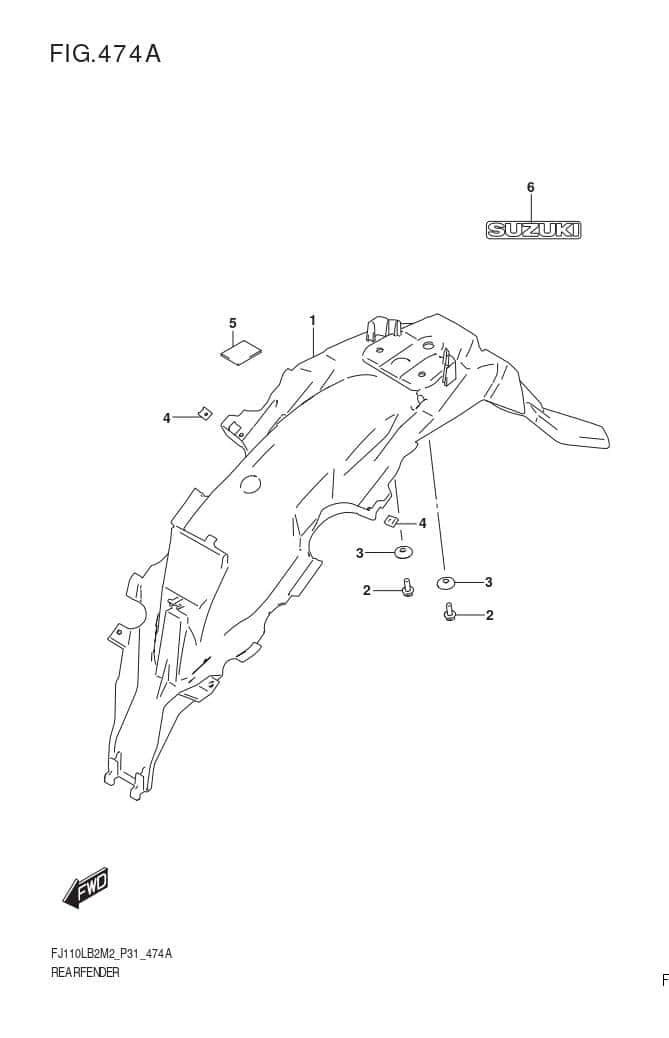

Raider J Crossover – REAR FENDER – FIG.474A (1-D-15)

FIG.541A (1-E-10) REAR SWINGINGARM
FIG.542A (1-E-11) CHAIN CASE
FIG.550A (1-E-12) REAR WHEEL
FIG.415A (1-D-5) FOOTREST
FIG.401A (1-D-3) FRAME
FIG.460B (1-D-12) FRONT FENDER
FIG.435B (1-D-7) FRONT LEG SHIELD
FIG.435B (1-D-8) FRONT LEG SHIELD
FIG.420A (1-D-6) FUEL TANK
FIG.451A (1-D-11) HEADLAMP HOUSING
FIG.407A (1-D-4) STAND
FIG.445B (1-D-10) FRAME COVER
FIG.445B (1-D-9) FRAME COVER
FIG.535A (1-E-8) FRONT CALIPER
FIG.521A (1-E-4) FRONT FORK DAMPER
FIG.521A (1-E-5) FRONT FORK DAMPER
FIG.537A (1-E-9) FRONT MASTER CYLINDER
FIG.530A (1-E-7) FRONT WHEEL
FIG.467A (1-D-14) HANDLELEVER
FIG.462A (1-D-13) HANDLEBAR
FIG.496C (1-E-2) LABEL
FIG.478A (1-D-16) LUGGAGE BOX
FIG.474A (1-D-15) REAR FENDER
FIG.505B (1-E-3) SEAT
FIG.524A (1-E-6) STEERING STEM

Ref No.	Part Number	Part Name	QTY	Price
1	63111-09L00-000	FENDER,REAR	1
2	01550-0616A-000	BOLT	2	₱ 63
3	94519-23K00-000	WASHER,COWLING BRACE LWR	2	₱ 91
4	09148-05080-000	NUT (M5)	2	₱ 64
5	33652-38000-000	PROTECTOR,BATTERY (40X30X3.0)	1
6	68171-41H40-000	EMBLEM,SUZUKI	1
