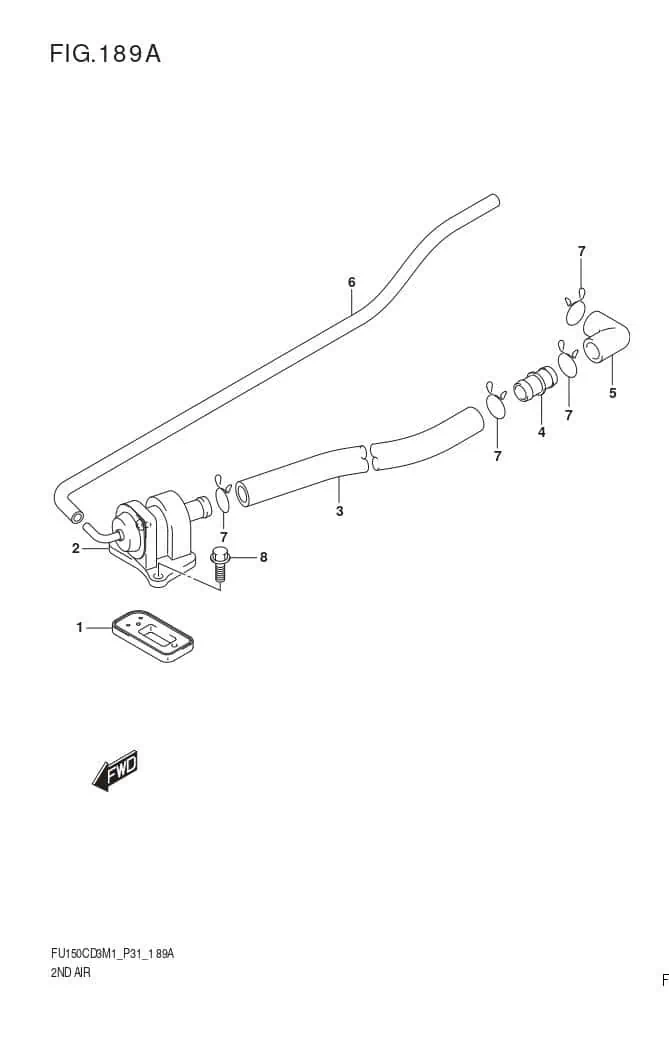

FIG.189A (1-C-4) 2ND AIR

Ref No.	Part Number	Part Name	QTY	Price
1	18450-06G10-000	VALVE ASSY,2ND AIR REED	1	₱ 511
2	18510-25G30-000	VALVE ASSY,AIR CUT	1	₱ 801
3	09352-11163-370	HOSE,2ND AIR CLEANER (L:370)	1	₱ 130
4	13888-19B00-000	JOINT,2ND AIR CLEANER HOSE	1	₱ 32
5	18712-29F01-000	HOSE,2ND AIR CLEANER JT	1	₱ 56
6	09401-15101-000	HOSE,2ND AIR VALVE VACUUM	1	₱ 74
7	01547-0616A-000	CLIP (ID:15.5)	4
8		BOLT	2
