Raider R150 Carb - CYLINDER HEAD COVER - FIG.102A (1-B-2)

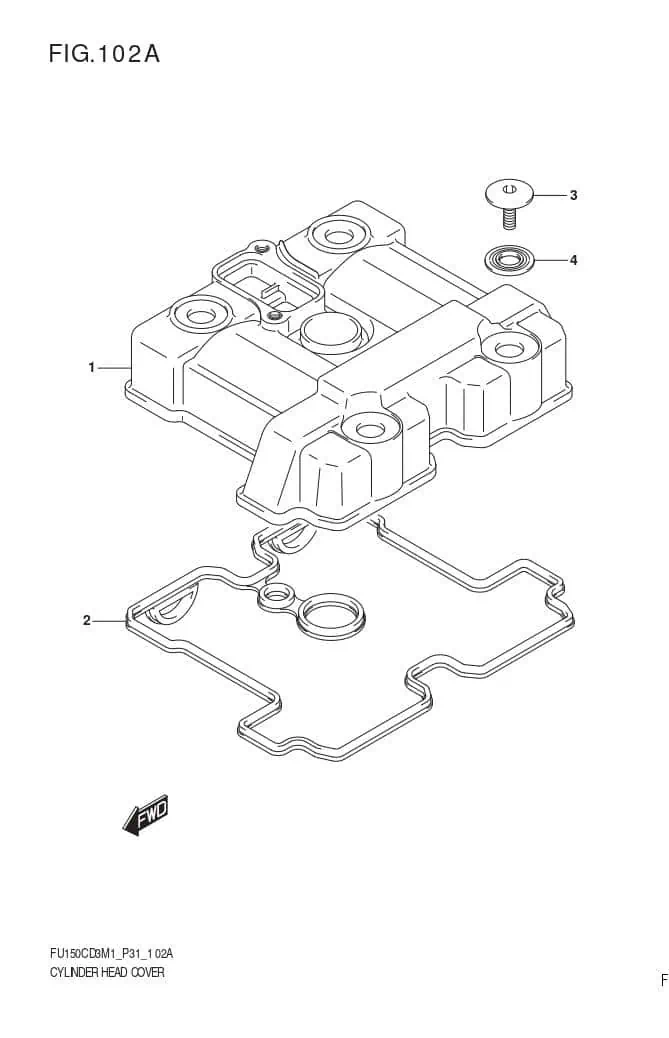

FIG.102A (1-B-2) CYLINDER HEAD COVER
FIG.108A (1-B-5) CRANKCASE
FIG.107A (1-B-4) CYLINDER
FIG.103A (1-B-3) CYLINDER HEAD
FIG.112A (1-B-6) CRANKCASE COVER
FIG.120A (1-B-7) CRANKSHAFT
FIG.122A (1-B-8) STARTER CLUTCH
FIG.124A (1-B-9) CRANK BALANCER
FIG.126A (1-B-10) CAMSHAFT/VALVE
FIG.127A (1-B-12) CAM CHAIN
FIG.130A (1-B-13) CARBURETOR
FIG.155A (1-B-15) AIR CLEANER
FIG.163A (1-B-16) MUFFLER
FIG.170A (1-C-2) OIL PUMP
FIG.178A (1-C-3) OIL COOLER
FIG.189A (1-C-4) 2ND AIR

Ref No.	Part Number	Part Name	QTY	Price
1	11171-25G10-000	COVER,CYLINDER HEAD	1
2	11173-47E10-000	GASKET,CYL HEAD COVER NO.1	1	₱ 542
3	09106-07025-000	BOLT,CYL HEAD COVER (7X12)	4	₱ 40
4	11191-27E70-000	WASHER,HEAD COVER BOLT (10.6X2 4 5.5X1.6)	4	₱ 52
