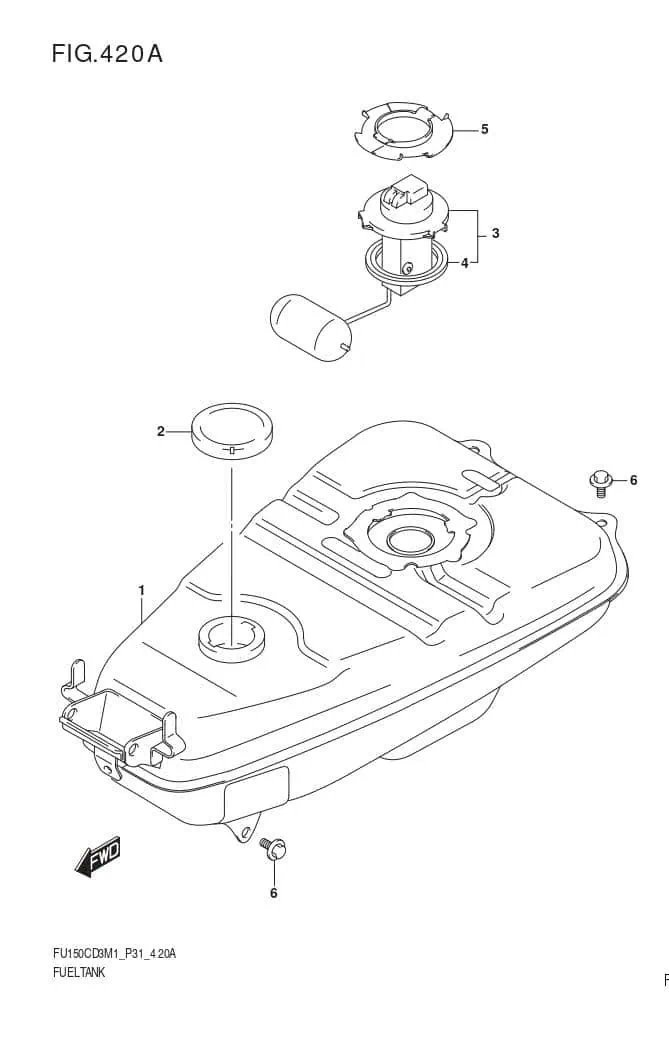

Raider R150 Carb – FUEL TANK – FIG.420A (1-D-12)

FIG.401A (1-D-5) FRAME
FIG.535A (1-E-14) FRONT CALIPER
FIG.460A (1-E-4) FRONT FENDER
FIG.530A (1-E-13) FRONT WHEEL
FIG.537A (1-F-2) FRONT MASTER CYLINDER
FIG.421A (1-D-13) FUEL COCK
FIG.420A (1-D-12) FUEL TANK
FIG.451A (1-E-3) HEADLAMP HOUSING
FIG.496A (1-E-9) LABEL
FIG.431A (1-D-14) LEG SHIELD
FIG.555A (1-F-6) REAR CALIPER
FIG.474A (1-E-7) REAR FENDER
FIG.545A (1-F-4) REAR SHOCK ABSORBER
FIG.541A (1-F-3) REAR SWINGINGARM
FIG.505A (1-E-10) SEAT
FIG.407A (1-D-10) STAND
FIG.524A (1-E-12) STEERING STEM
FIG.415A (1-D-11) FOOTREST
FIG.445A (1-E-2) FRAME COVER
FIG.521A (1-E-11) FRONT FORK DAMPER
FIG.462A (1-E-5) HANDLEBAR
FIG.467A (1-E-6) HANDLE LEVER
FIG.483A (1-E-2) UNDER COWLING
FIG.550A (1-E-12) REAR WHEEL
FIG.558A (1-E-14) REAR MASTER CYLINDER

Ref No.	Part Number	Part Name	QTY	Price
1	44110-25G10-000	TANK,FUEL	1	₱ 4,029
2	44210-09J00-000	CAP,FUEL TANK FILLER	1	₱ 209
3	34810-25G10-000	GAUGE ASSY,FUEL LEVEL SENDER	1	₱ 681
4	34825-03A01-000	.PACKING,FUEL LEVEL GAUGE	1	₱ 66
5	34886-03A00-000	PLATE,FUEL LEVEL SENDER GAUGE	1	₱ 64
6	01550-0612A-000	BOLT	4	₱ 12
