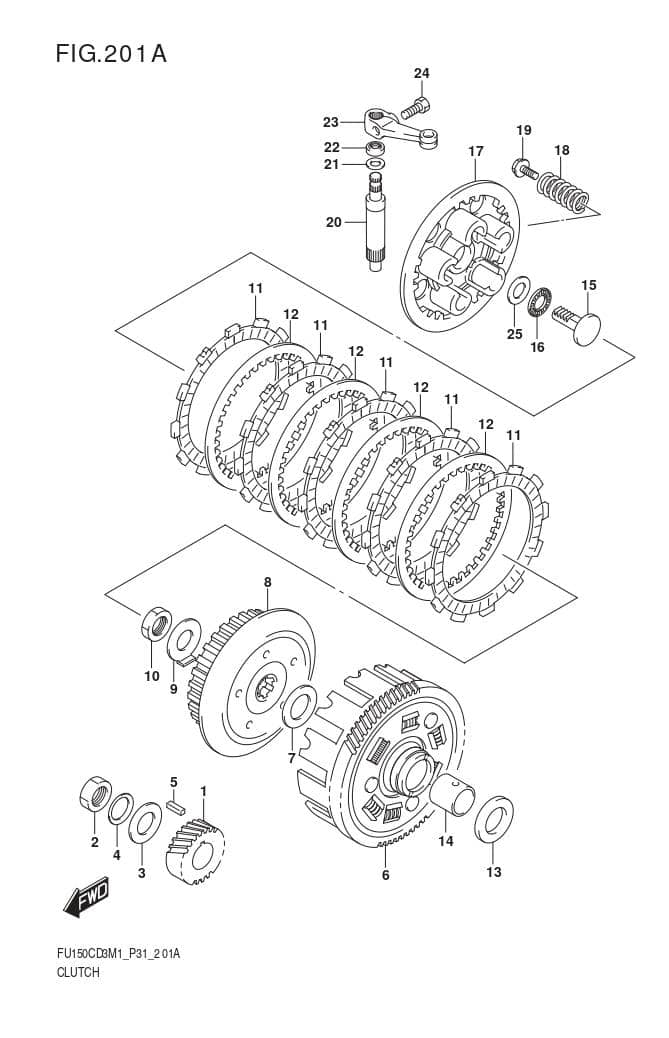

Ref No. |
Part Number |
Part Name |
QTY |
Price |
|---|---|---|---|---|
1 |
21111-25G20-000 |
GEAR,PRIMARY DRIVE (NT:20) |
1 |
₱ 831 |
2 |
09140-16019-000 |
NUT |
1 |
₱ 118 |
3 |
09160-16003-000 |
WASHER (16X30X1.0) |
1 |
₱ 71 |
4 |
09164-16005-000 |
WASHER |
1 |
₱ 97 |
5 |
09421-04004-000 |
KEY |
1 |
₱ 97 |
6 |
21200-25G30-000 |
GEAR ASSY,PRIMARY DRIVEN (NT:70) |
1 |
₱ 4,475 |
7 |
08211-20352-000 |
WASHER |
1 |
₱ 85 |
8 |
21411-05220-000 |
HUB,CLUTCH SLEEVE |
1 |
₱ 500 |
9 |
09169-16009-000 |
WASHER |
1 |
₱ 64 |
10 |
09140-16001-000 |
NUT |
1 |
₱ 89 |
11 |
21441-25G00-000 |
PLATE,CLUTCH DRIVE (T:3.0) |
5 |
₱ 379 |
12 |
21451-28030-000 |
PLATE,CLUTCH DRIVEN (T:1.6) |
4 |
₱ 105 |
13 |
21212-25G00-000 |
SPACER,PRIMARY DRIVEN GEAR THR(20.1X36X6) |
1 |
₱ 211 |
14 |
21251-13E30-000 |
SPACER,PRIMARY DRIVEN GEAR |
1 |
₱ 197 |
15 |
23165-48000-000 |
BACK,CLUTCH RELEASE |
1 |
₱ 396 |
16 |
09263-10016-000 |
BEARING,10X24X2 (10X24X2) |
1 |
₱ 201 |
17 |
21462-46910-000 |
DISC,CLUTCH PRESSURE |
1 |
₱ 798 |
18 |
09440-15043-000 |
SPRING |
5 |
₱ 38 |
19 |
09116-05147-000 |
BOLT (5X16) |
5 |
₱ 68 |
20 |
23261-13A21-000 |
PINION,CLUTCH RELEASE |
1 |
₱ 517 |
21 |
09160-12086-000 |
WASHER (12.5X17X1) |
1 |
₱ 16 |
22 |
09285-10008-000 |
SEAL,CL RELEASE PINION OIL (10X17X5) |
1 |
₱ 75 |
23 |
23271-47E20-000 |
ARM,CLUTCH RELEASE |
1 |
₱ 460 |
24 |
01500-06163-000 |
BOLT |
1 |
|
25 |
08211-10241-000 |
WASHER |
1 |
₱ 125 |
