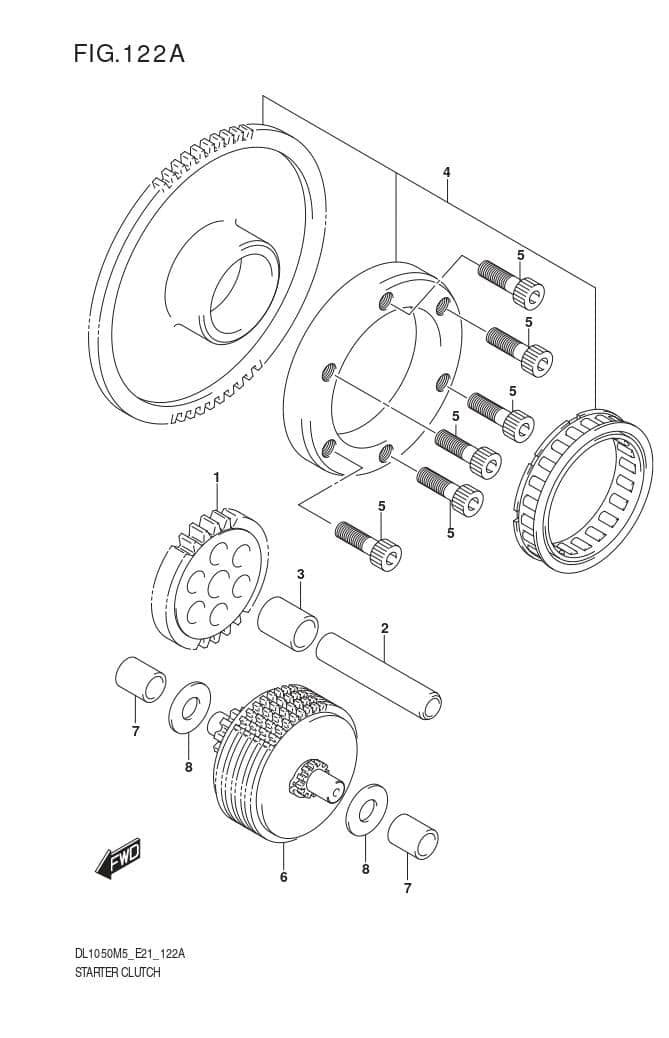

V-STROM 1050DE - FIG.122A (1-B-12) STARTER CLUTCH - Suzuki Motorcycles Philippines

FIG.101A (1-B-2) GASKET SET
FIG.104A (1-B-3) CYLINDER HEAD (FRONT) (DL1050RR)
FIG.105A (1-B-5) CYLINDER HEAD (REAR)
FIG.107A (1-B-6) CYLINDER
FIG.108A (1-B-7) CRANKCASE
FIG.109A (1-B-8) CRANKCASE (2) (DL1050RR)
FIG.109B (1-B-9) CRANKCASE (2) (DL1050RJ)
FIG.112A (1-B-10) CRANKCASE COVER
FIG.120A (1-B-11) CRANKSHAFT
FIG.122A (1-B-12) STARTER CLUTCH
FIG.126A (1-B-13) CAMSHAFT/VALVE
FIG.127A (1-B-15) CAM CHAIN
FIG.155A (1-C-2) AIR CLEANER
FIG.163B (1-C-3) MUFFLER
FIG.170A (1-C-4) OIL PUMP
FIG.178A (1-C-6) OIL COOLER
FIG.180A (1-C-7) WATER PUMP
FIG.185A (1-C-8) RADIATOR
FIG.187A (1-C-9) RADIATOR HOSE
FIG.189A (1-C-10) 2ND AIR

Ref No.	Part Number	Part Name	QTY	Price
1	12612-06G00	GEAR,STARTER IDLE NO.2 (NT:27)	1	₱ 1,592
2	09206-12002	PIN (7X12X50.5)	1	₱ 515
3	09180-12140	SPACER (12.5X19X17.5	1	₱ 289
4	12600-06811	CLUTCH SET,STARTER (NT:72)	1	₱ 9,079
5	09106-08106	BOLT (8X20)	6	₱ 104
6	12600-06G01	LIMITER ASSY,START ID GR NO.1 1 (NT:44)	1	₱ 5,785
7	12618-31G00	BUSH,LIMITER GEAR SHAFT	2	₱ 107
8	09181-10195	SHIM (10X20X1)	2	₱ 55
