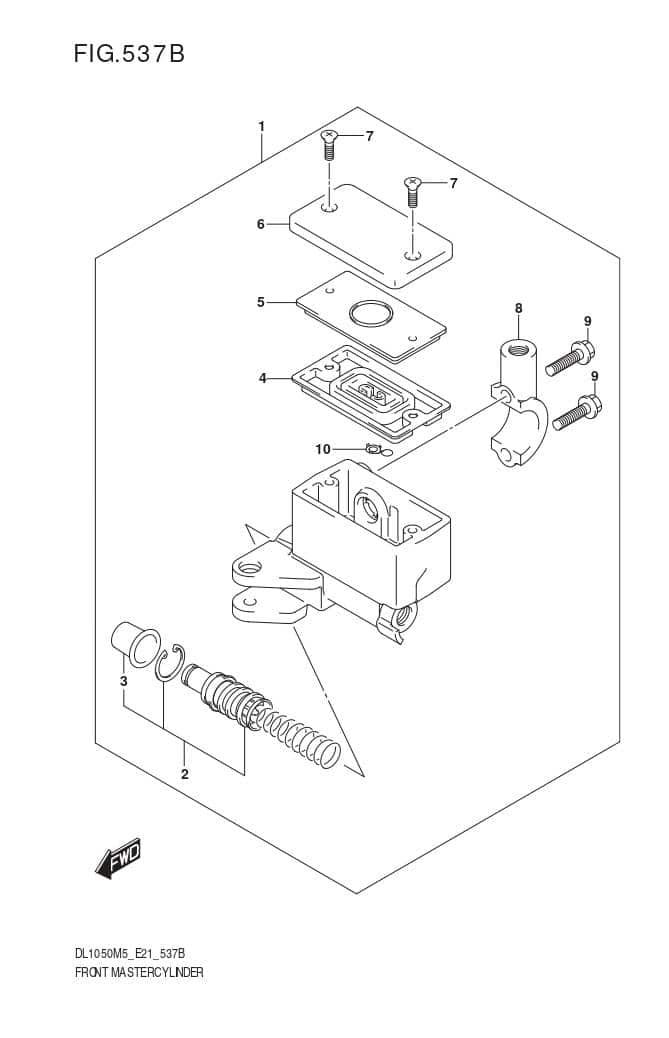

V-STROM 1050DE – FIG.537B (1-I-5) FRONT MASTER CYLINDER

Genuine Parts

FIG.201A (1-C-11) CLUTCH
FIG.206A (1-C-13) TRANSMISSION (DL1050RR)
FIG.212A (1-D-2) GEAR SHIFTING (DL1050RR)

FIG.172A (1-C-5) FUEL PUMP
FIG.339A (1-E-2) REAR COMBINATION LAMP
FIG.334A (1-D-15) TURNSIGNAL LAMP (DL1050RJ)
FIG.333A (1-D-14) HEADLAMP
FIG.330A (1-D-12) SPEEDOMETER (DL1050RR)
FIG.312H (1-D-11) ELECTRICAL (DL1050RJ)
FIG.310E (1-D-9) BATTERY (DL1050RJ)
FIG.303A (1-D-7) MAGNETO
FIG.301A (1-D-6) STARTING MOTOR
FIG.350C (1-E-3) WIRING HARNESS (DL1050RR)
FIG.350G (1-E-4) WIRING HARNESS (DL1050RJ)
FIG.352B (1-E-5) LOCK SET
FIG.355A (1-E-6) HANDLE SWITCH (DL1050RR)
FIG.406A (1-E-9) HOLDER (DL1050RJ)

FIG.401A (1-E-8) FRAME
FIG.406B (1-E-10) HOLDER (DL1050RR)
FIG.407A (1-E-11) STAND (DL1050RJ)
FIG.407D (1-E-12) STAND (DL1050RR)
FIG.412A (1-E-13) CARRIER
FIG.423B (1-F-4) FUEL TANK COVER (DL1050RR)
FIG.423A (1-F-3) FUEL TANK COVER (DL1050RJ)
FIG.420B (1-F-2) FUEL TANK (DL1050RR)
FIG.420A (1-E-16) FUEL TANK (DL1050RJ)
IG.415B (1-E-15) FOOTREST (DL1050RR)
FIG.415A (1-E-14) FOOTREST (DL1050RJ)
FIG.427B (1-F-5) EVAP SYSTEM
FIG.433A (1-F-6) SIDE COVER (DL1050RJ)
FIG.444A (1-F-10) FRONT BRACKET
FIG.445A (1-F-11) FRAME COVER (DL1050RJ)
FIG.445B (1-F-14) FRAME COVER (DL1050RR)
FIG.454A (1-F-15) WINDSCREEN (DL1050RJ)
FIG.454C (1-F-16) WINDSCREEN (DL1050RR)
FIG.460A (1-G-3) FRONT FENDER (DL1050RJ)
FIG.460B (1-G-4) FRONT FENDER (DL1050RR)
FIG.462A (1-G-5) HANDLEBAR (DL1050RJ)
FIG.462B (1-G-6) HANDLEBAR (DL1050RR)
FIG.467A (1-G-7) HANDLE LEVER (DL1050RJ)
FIG.467B (1-G-8) HANDLE LEVER (DL1050RR)
FIG.472A (1-G-9) KNUCKLE COVER
FIG.474A (1-G-10) REAR FENDER (DL1050RR)
FIG.505A (1-H-4) SEAT (DL1050RJ
FIG.505B (1-H-5) SEAT (DL1050RR)
FIG.521A (1-H-6) FRONT FORK DAMPER (DL1050RR)
FIG.521B (1-H-7) FRONT FORK DAMPER (DL1050RJ)
FIG.524A (1-H-9) STEERING STEM (DL1050RR)
FIG.524B (1-H-10) STEERING STEM (DL1050RJ)
FIG.530A (1-H-11) FRONT WHEEL (DL1050RR)
FIG.530B (1-H-12) FRONT WHEEL (DL1050RJ)
FIG.533A (1-H-13) HYDRAULIC UNIT (DL1050RR)
FIG.534A (1-H-15) BODY ELECTRICAL (DL1050RR)
FIG.533B (1-H-14) HYDRAULIC UNIT (DL1050RJ)
FIG.534B (1-H-16) BODY ELECTRICAL (DL1050RJ)
FIG.535A (1-I-2) FRONT CALIPER
FIG.536A (1-I-3) FRONT BRAKE HOSE (DL1050RJ)
FIG.536C (1-I-4) FRONT BRAKE HOSE (DL1050RR)
FIG.539B (1-I-6) CLUTCH MASTER CYLINDER (DL1050RR)
FIG.537B (1-I-5) FRONT MASTER CYLINDER
FIG.539D (1-I-7) CLUTCH MASTER CYLINDER (DL1050RJ)
FIG.541A (1-I-8) REAR SWINGINGARM (DL1050RR)
FIG.541C (1-I-9) REAR SWINGINGARM (DL1050RJ)
FIG.543A (1-I-10) REAR CUSHION LEVER (DL1050RJ)
FIG.543C (1-I-11) REAR CUSHION LEVER (DL1050RR)

Ref No.	Part Number	Part Name	QTY	Price
1	59600-10G30	CYLINDER ASSY,FR MASTER	1	₱ 7,874
2	59600-45870	.PISTON & CUP SET	1	₱ 1,157
3	59666-44300	..BOOT	1	₱ 58
4	59667-49460	.DIAPHRAGM	1	₱ 266
5	59668-41C00	PLATE,DIAPHRAGM	1	₱ 252
6	59669-10G00	.CAP	1	₱ 885
7	69689-49300	.SCREW	2	₱ 27
8	59671-32F00	HOLDER	1	₱ 549
9	59675-02FA0	BOLT (6X22)	2	₱ 118
10	59664-32F00	.PROTECTOR	1	₱ 158
