1

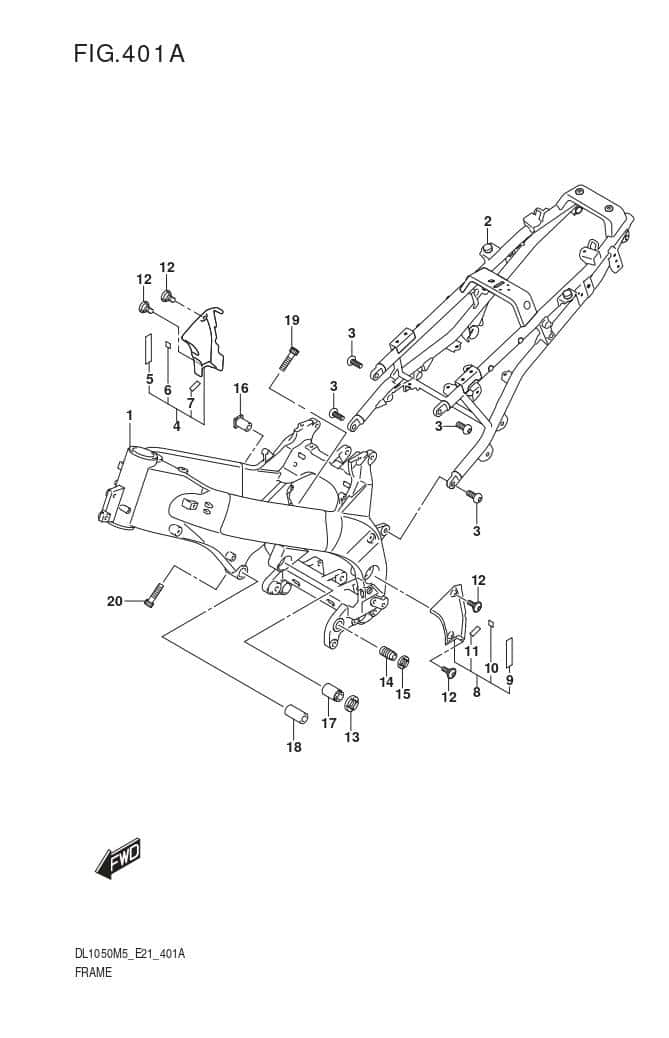

1 41100-31J40-YAP FRAME (BLACK) 1 2 41200-31J40-YAP RAIL,SEAT (BLACK) 1 3 09139-10006 BOLT,SEAT RAIL 4 4 43580-31J00 COVER,PIVOT RH 1 5 33652-38A11 .PROTECTOR (20X90X2.0) 1 6 63115-37H00 .CUSHION (10X10X1) 1 7 94429-21E00 .CUSHION (10X30X2) 1 8 43590-31J00 COVER,PIVOT LH 1 9 33652-38A11 .PROTECTOR (20X90X2.0) 1 10 63115-37H00 .CUSHION (10X10X1) 1 11 94429-21E00 .CUSHION (10X30X2) 1 12 09139-05092 SCREW (5X13) 4 13 41922-19F20 NUT,CRANK CASE ADJUST CTR 1 14 41921-16G11 BOLT,CRANK CASE ADJUST LWR 1 15 41922-33E20 NUT,CRANK CASE ADJUST LWR 1 16 41941-19F01 SPACER,MOUNTING RR UPR,R 1 17 41921-47H00 BOLT,CRANK CASE ADJUST 1 18 41942-02F00 SPACER,ENG HEAD MTG,RR LH 1 19 07130-0840B BOLT 1 20 07130-0840B

FRAME (BLACK)

1

2

41200-31J40-YAP

RAIL,SEAT (BLACK

1

3

09139-10006

BOLT,SEAT RAIL

4

₱ 143

4

43580-31J00

COVER,PIVOT RH

1

₱ 512

5

33652-38A11

PROTECTOR (20X90X2.0)

1

6

63115-37H00

.CUSHION (10X10X1)

1

₱ 89

7

94429-21E00

.CUSHION (10X30X2)

1

₱ 79

8

43590-31J00

COVER,PIVOT LH

1

₱ 512

9

33652-38A11

.PROTECTOR (20X90X2.0)

1

10

63115-37H00

CUSHION (10X10X1)

1

₱ 89

11

94429-21E00

CUSHION (10X30X2)

1

₱ 79

12

09139-05092

SCREW (5X13)

4

₱ 84

13

41922-19F20

NUT,CRANK CASE ADJUST CTR

1

₱ 388

14

41921-16G11

BOLT,CRANK CASE ADJUST LWR

1

15

41922-33E20

NUT,CRANK CASE ADJUST LWR

1

₱ 336

16

41941-19F01

SPACER,MOUNTING RR UPR,R

1

₱ 829

17

41921-47H00

BOLT,CRANK CASE ADJUST

1

₱ 1,085

18

41942-02F00

SPACER,ENG HEAD MTG,RR LH

1

₱ 591

19

07130-0840B

BOLT

1

₱ 158

20

07130-0840B

BOLT

1

₱ 158
